YAESU G-450 CDC
Compact Antenna Rotator + Connector Kit Included
Genuine Yaesu product. Supplied complete with the new-generation CDC Control Unit, dedicated connector kit, original box and Official Italian Warranty with qualified technical support.
Product Description

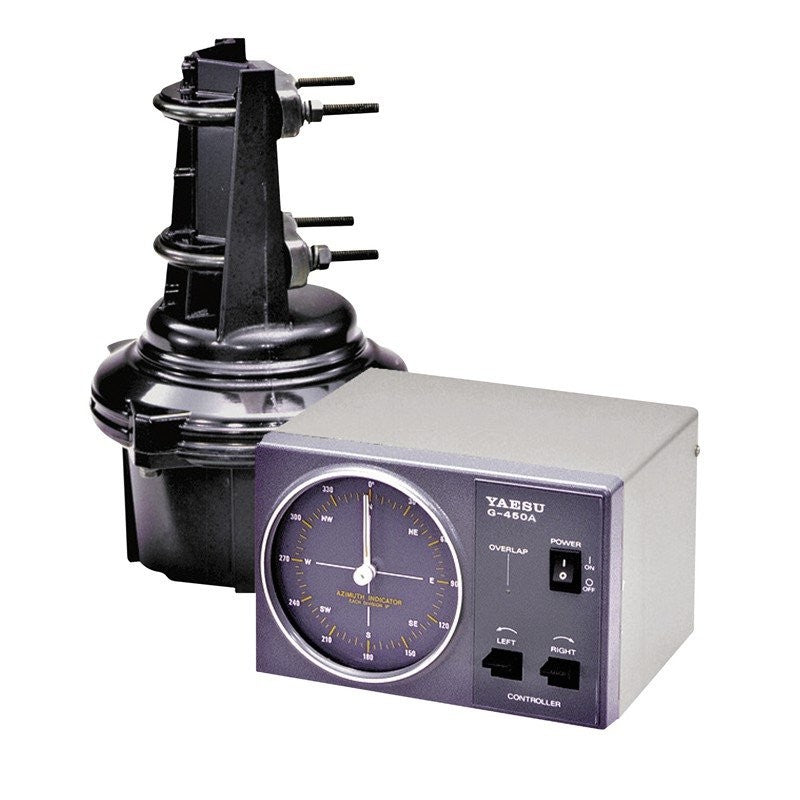

The Yaesu G-450 CDC antenna rotator is the ideal choice for turning light VHF/UHF beams, small arrays for 6 and 10 metres, vertical antennas or compact HF beams (Moxon, Hexbeam, small 2-element Yagis). Designed with the usual reliability of the Japanese brand, it handles a wind area of up to 1 m² and a K factor of 100. The CDC version includes the updated control unit and comes complete with the connector kit for a professional installation.
Key Features
|
Rugged and Quiet Construction
3,000 kg/cm braking torque and 600 kg/cm rotating torque housed in a waterproof die-cast aluminium body. |
Precision and Smoothness
Full 360° rotation in just 63 seconds (at 50Hz) with high pointing accuracy (error within 0.5°). |
|
Wide Mast Compatibility
Accepts mounting masts with diameters from 32 up to 63 mm for maximum mounting flexibility. |

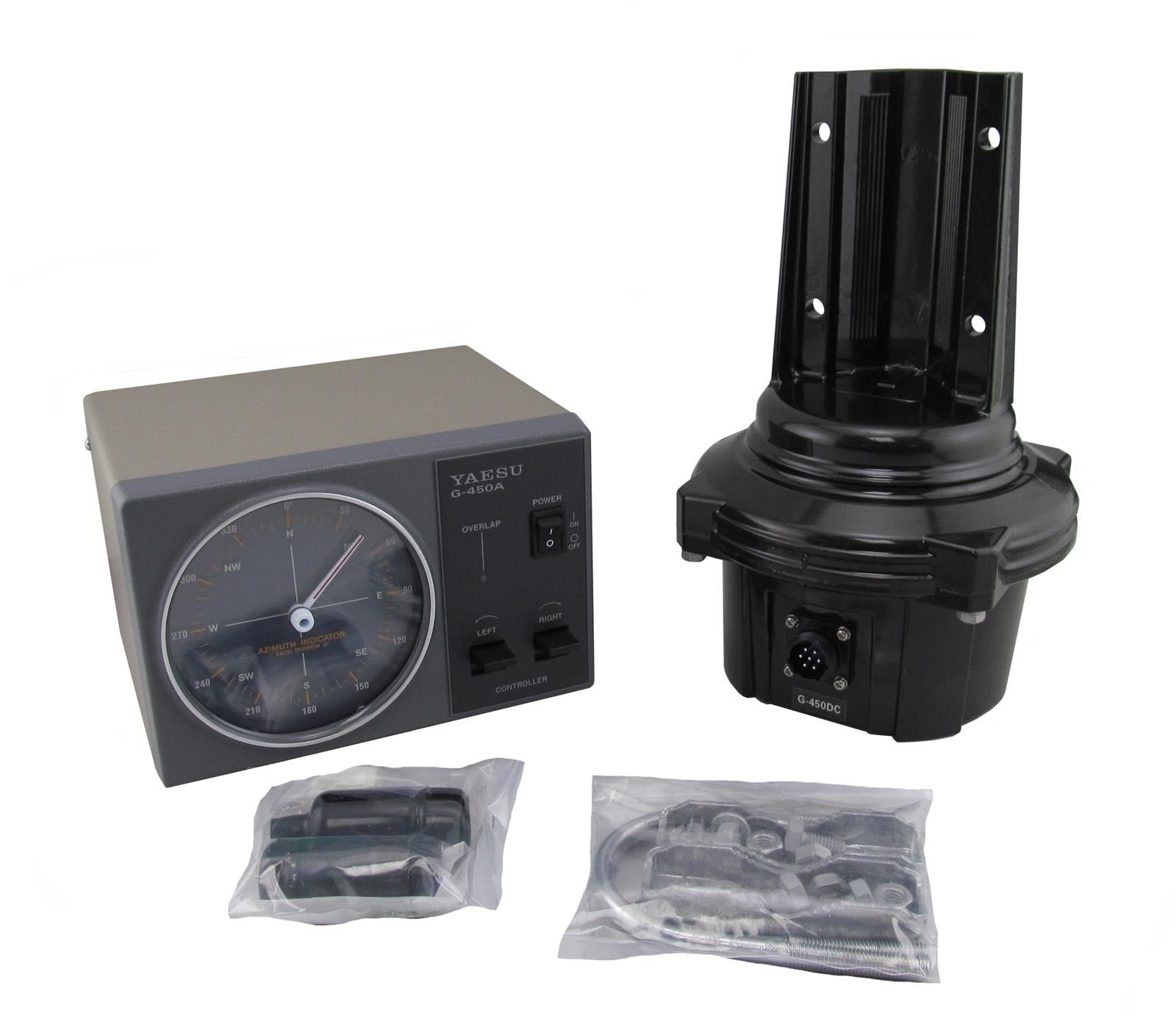

Connector Kit Included
Supplied as standard with the auxiliary connector kit for 5-conductor control cable, ready for immediate installation. |
Use Cases and Practical Tips
The Yaesu G-450 CDC rotator is the benchmark solution for rooftop installations or portable/field stations:
- VHF/UHF Beam Antennas: Excellent for single or stacked Yagis for 2m (144 MHz) and 70cm (430 MHz), and beam antennas for the 6m band.
- Compact HF Beams: Perfect for balanced beams such as Hexbeam, Spiderbeam, Moxon or 2-element Yagis for the upper HF range.
HRS tip: A 5-conductor control cable is required. To extend the life of the internal mechanisms and stabilise the system against sudden gusts, we recommend mast installation with a Yaesu GS-050 / GS-065 thrust bearing.
The HamRadioShop Team's Opinion
"The G-450 CDC is the classic 'workhorse' of the Yaesu range. Extremely reliable and easy to install, it is the first choice for those who want a precise, durable rotator without a big budget. Perfect for VHF/UHF beams and Hexbeams on a telescopic mast."
Technical Specifications
| Brand / Manufacturer | Yaesu |
| Model | G-450 CDC (+ Connector Kit) |
| Max. Wind Area | 1.0 m² |
| K Factor | 100 |
| Braking Torque | 3,000 kg/cm |
| Rotating Torque | 600 kg/cm |
| Max. Vertical Load | 100 kg (intermittent max: 300 kg) |
| Accuracy / Error | 0,5° |
| 360° Rotation Time | 63 seconds (at 50Hz) |
| Mast Size (Support) | 32 ~ 63 mm (ø) |
| Rotator Dimensions and Weight | 170 mm (ø) x 263 mm (H) / 3.2 kg |
| Control Cable Conductors | 5 conductors |
| Warranty | Official Italian warranty with qualified technical support |
