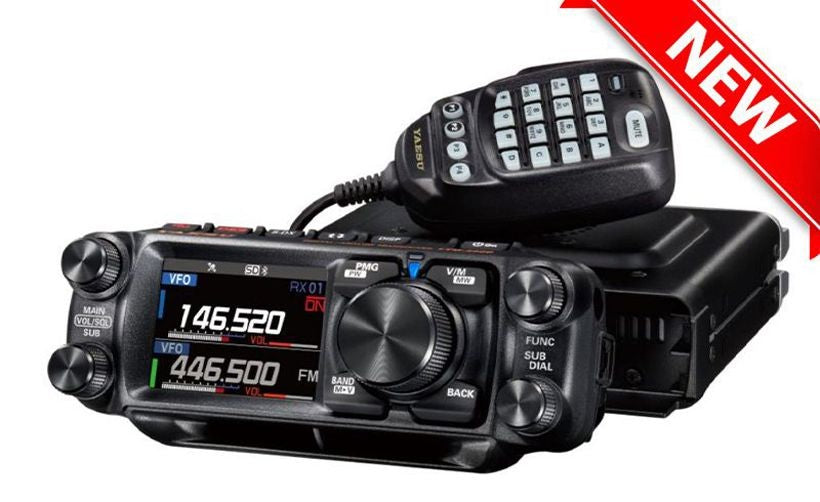

Yaesu FTM-510DE ASP
The new Yaesu FTM-510DE ASP redefines the standards of vehicular operation. Designed for the operator who demands consistent performance and an advanced user interface, this analog/digital dual-band transceiver represents the perfect synthesis of transmission power and audio fidelity.
With a true 50W RF output on both bands and a forced air-cooling system, the FTM-510DE is built to withstand intense duty cycles, both in FM mode and in the C4FM digital protocol.
Advanced Audio Technology: The ASP Processor
The FTM-510DE integrates the new ASP (Acoustic Sound Processor) board as standard. This dedicated digital processing unit transforms the user experience:
Dynamic Equalization: Optimizes the frequency response of the transmitted voice, ensuring a modulation that is always penetrating and natural.
Digital Noise Reduction: Drastically reduces background noise on reception, isolating the useful signal even when in motion or in the presence of environmental disturbances.
-
Audio Compansion: Improves the signal-to-noise ratio, offering sound clarity typical of high-end base-station equipment.
Exclusive 5-Year Italian Importer Warranty
By purchasing your Yaesu FTM-510DE on HamRadioShop, you benefit from the maximum protection available on the market. The equipment is covered by the official 5-year warranty issued by the authorized Italian importer. Choosing a product with an official Italian warranty not only means compliance with local regulations, but also ensures priority technical assistance, original spare parts, and the peace of mind of direct long-term support that only official channels can offer.
Main Technical Features
Integrated ASP Processor: For unprecedented digital audio management in TX and RX in the mobile segment.
High-Resolution Color TFT Display: Optimized for immediate readability of operating parameters, even in direct sunlight.
3W Audio System: High-performance front speaker coupled with ASP technology for crystal-clear reception.
Independent Dual Reception: Simultaneous management of two frequencies (V+V, U+U, V+U, U+V) with separate reception circuits.
Integrated GPS and APRS: Data modem for APRS® protocol (1200/9600 bps) and high-sensitivity GPS receiver for tracking and smart-navigation.
Technical Specifications
| Parameter | Detail |
| Audio Technology | ASP (Acoustic Sound Processor) board included |
| Frequency Range | TX: 144-146 MHz, 430-440 MHz / RX: Wideband coverage |
| Output Power | 50W / 25W / 5W (Selectable) |
| Operating Modes | F1D, F2D, F3E, F7W (C4FM Digital) |
| Connectivity | Integrated Bluetooth, MicroSD Slot, USB Data Port |
Package Contents
Yaesu FTM-510DE Radio Body (with pre-installed ASP module)
DTMF Multifunction Microphone SSM-85D
Mounting bracket and original DC cabling
User manual in Italian
Official Italy Warranty Certificate (5 Years)
