Yaesu FTDX10 HF/50 MHz SDR Base Transceiver, 5-Year Official Yaesu Italia Warranty

2 reviews
Regular price €1.533,00

Tax included. Shipping calculated at checkout

Available

  • Apple Pay
  • Bancontact
  • BLIK
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Satispay
  • Shop Pay
  • Visa

ULTRA-FAST SHIPPING

CUSTOMER SUPPORT

SECURE PAYMENTS

Description

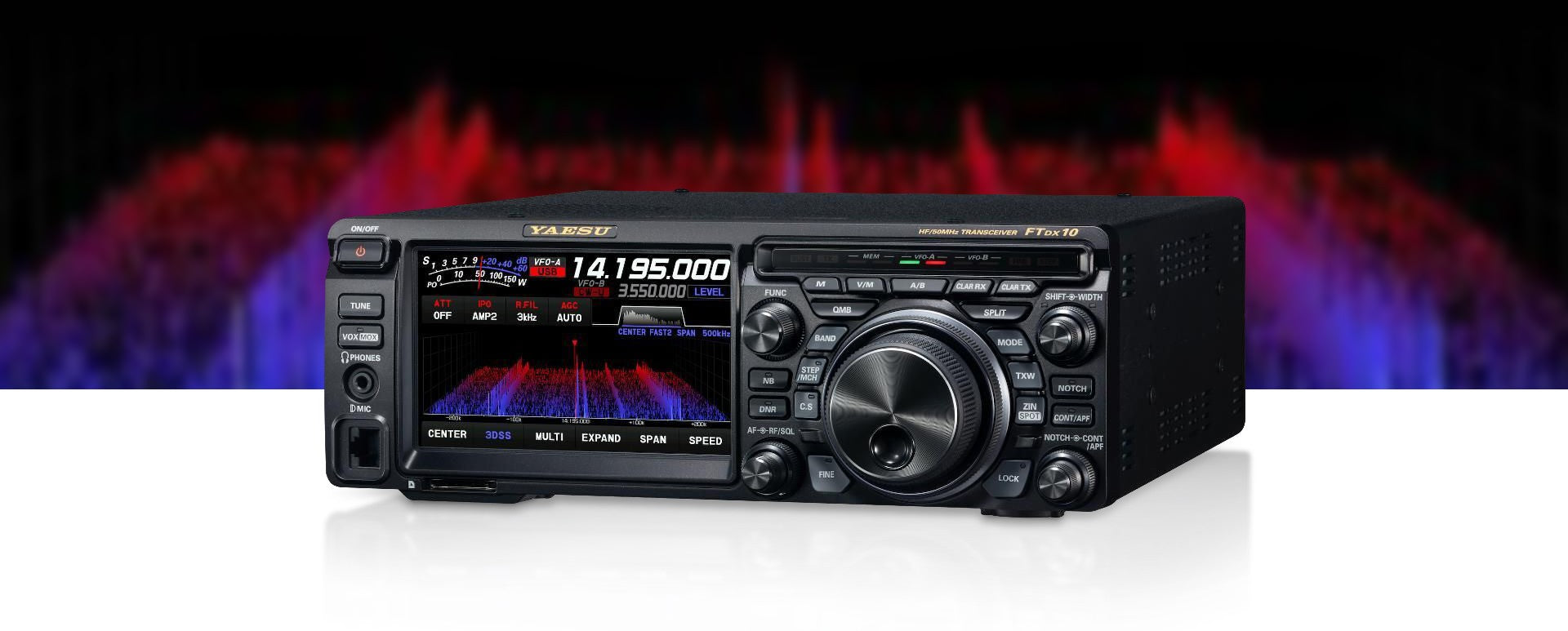

We are pleased to introduce the FTDX10, the new compact HF/50MHz 100W SDR transceiver from YAESU.

- Hybrid SDR configuration

Like the FTDX101 series, the new FTDX10 uses the YAESU Hybrid SDR configuration - narrow band SDR and direct sampling SDR. The narrow band SDR receiver emphasises excellent receiver performance, while the Direct Sampling SDR provides real-time digital processing of the spectrum.

- Narrow band SDR with 3 types of roofing filters and phenomenal multi-signal receiving characteristics

As in the FTDX101 series, a down-conversion receiver configuration with a 9MHz first IF has been adopted. This makes it possible to incorporate excellent narrow band crystal roofing filters with the desired "cliff edge" sharp shape factor. Thanks to the narrow band SDR with the latest circuit configuration including 500Hz, 3kHz and 12kHz roofing filters and a low-noise oscillator, the RMDR (Reciprocal Mixing Dynamic Range) reaches 116dB or more, the close-in BDR (Blocking Dynamic Range) reaches 141dB or more, and the 3rd IMDR (Third-order Intermodulation Dynamic Range) reaches 109dB or more, in the 14MHz band at 2kHz separation.

- 250MHz HRDDS (High Resolution Direct Digital Synthesizer) delivers quiet, clear reception

The local circuit of the new FTDX10 uses the 250MHz HRDDS method like the FTDX101 series. Thanks to its characteristics that improve the C/N (carrier/noise) ratio and the careful selection of components in the design, the phase noise characteristic of the local signal reaches an excellent value of -145dB or less at 14MHz with 2kHz separation.

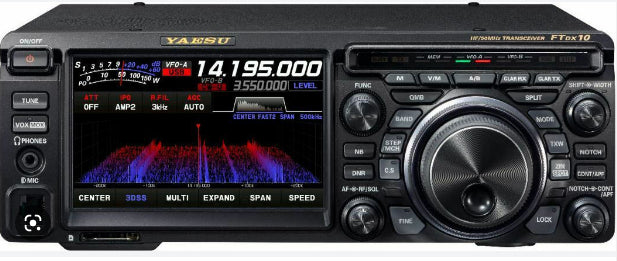

- 3DSS (3-Dimensional Spectrum Stream) on the 5-inch full-colour TFT display with touch-panel functionality

The 5-inch full-colour panel shows the 3DSS display. Touching the frequency display brings up the numeric keypad, and the active band and frequency can be set by direct entry. Frequency setting and adjustment can also be done by turning the MAIN dial or touching the scope display. Similar to the FTDX101 series, the MULTI display, RX operating status display, and Center, FIX and Cursor modes are available.

- Front panel designed for outstanding operating efficiency

MPVD (Multi-Purpose VFO Outer Dial) is a multi-purpose ring located around the outside of the VFO that allows control of the Clarifier, C/S (custom select function) and memory channel recall.

- Remote operation with optional LAN unit (SCU-LAN10)

Remote operation of the transceiver is possible with the optional SCU-LAN10 network remote control software. Besides controlling the basic operations of the transceiver, the various scope display options allow sophisticated operations such as monitoring band conditions on a large display, even remotely, via a connection to a home LAN.

Features of the new FTDX10 also include:

- 15 separate band-pass filters - Effective QRM reduction through IF DSP functions (IF SHIFT/WIDTH, IF NOTCH DNF, DNR, COUNTOUR) - Very high quality and stable final stage using the new RD70HUP2 push-pull MOSFET transistors - 80mm aluminium heat sink with ultra-low-noise axial fan - High-speed automatic antenna tuner with 100 memory channels - RF & AF Transmit Monitor - Microphone amplifier with three-stage parametric equaliser (SSB/AM modes) - QMB (Quick Memory Bank) - Band Stack function - Optional external speaker – SP-30 designed specifically for the new FTDX10 - Optional roofing filter (300Hz) – XF-130CN available

Radio features:
- 100 W HF / 50MHz band transceiver
- Hybrid SDR configuration using a narrow band SDR and a direct sampling SDR
- Narrow band SDR provides phenomenal multi-signal receiving characteristics (2kHz RMDR 116dB +, 2kHz BDR
141dB +, 2kHz 3rd IMDR 109dB +)
- Down conversion, IF roofing filters
at 9 MHz produce an excellent shape factor - 250 MHz HRDDS (high resolution direct digital synthesizer) ultra-low-noise local oscillator system
- 15 separate high-performance band pass filters (BPF)
- Effective QRM rejection with IF DSP (IF SHIFT / WIDTH, IF NOTCH / DNF, CONTOUR, DNR, APF)
- High quality, super stable final amplifier using the new RD70HUP2 push-pull MOSFET
"- 5-inch colour touch panel and 3DSS (3-Dimensional Spectrum Stream) display"

- MPVD (Multi-Purpose VFO Outer Dial) enables outstanding operating performance
- Quick Memory Bank (QMB)
- Supports CW operation with multiple functions such as: CW zero-in, CW auto zero-in, CW reverse, CW
decoding , CW encoding, FPGA signal waveform shaping and more
- RTTY (FSK) / PSK encode / decode function
- Other practical features such as optional RF gain selection via IPO. Automatic gain control, Quick Split function
- SD card slot
- Remote operation via the Internet with optional LAN unit (SCU-LAN10)
Supplied accessories:
SSM-75E microphone
DC power cable with fuse, spare fuse
3-pin 6.3 mm plug
Operating manual

Specifications:
Frequency ranges: RX 30kHz - 75MHz (operating)
1.8MHz - 29.699999MHz (specified performance, amateur bands only) *
* 5.1675 / 5.332 / 5.348 / 5.3585 / 5.373 / 5.405 MHz (USA only), 5.351500-5.366500 MHz (
EU only ) / 5.25000-5.406500 (UK only)
50 MHz - 53.999999 MHz (specified performance, amateur bands only)
70 MHz - 70.499999 MHz (specified performance, UK version only, amateur bands)
TX 1.8 - 54MHz (amateur bands only)
70MHz - 70.49999MHz (UK only)
Modulation type: A1A (CW), A3E (AM), J3E (LSB, USB), F3E (FM), F1B (RTTY ), G1B (PSK)
Frequency stability: ± 0.5 ppm (32 ° F to + 122 ° F / 0 ? to + 50 ?, after 1 min)
Supply voltage: DC 13.8 V ± 15%
Circuit type: double conversion superheterodyne, intermediate frequency 1st IF 9.005 MHz 2nd IF

RF output power at 24 kHz : 5 W - 100 W (CW, LSB, USB, FM, RTTY, PKT) 5 W-25 W (AM)

Dimensions: (W x H x D): 10.47 x 3.58 x 10.35 (inches) / 266 x 91 x 263 (mm) * Projections not included Weight (approx.): 5.9 kg

Hybrid SDR configuration
Like the FTDX101 series, the new FTDX10 uses the Yaesu hybrid SDR configuration: narrow band SDR and
direct sampling SDR . The narrow band SDR receiver emphasises excellent receiver performance, while the direct sampling SDR provides a
real-time digitally processed spectrum scope.
- Narrow band SDR with 3 types of roofing filters and phenomenal multi-signal
receiving characteristics. Like the FTDX101 series, a down-conversion receiver configuration with a 9MHz first IF has been adopted. It makes it possible
to incorporate excellent narrow band crystal roofing filters with the desired "cliff edge" shape factor.
Thanks to the Narrow Band SDR with the latest circuit configuration including 500Hz, 3kHz and 12kHz roofing filters and a low-noise oscillator, the RMDR (Reciprocal Mixing Dynamic Range) reaches 116dB or more, the close-in BDR (Blocking Dynamic
Range) reaches 141dB or more and the 3rd IMDR (third-order intermodulation dynamic range) reaches
109 dB or more, in the 14 MHz band at 2 kHz separation.
- 250MHz HRDDS (high resolution direct digital synthesizer) delivers quiet, clear reception
The local circuit of the new FTDX10 uses the 250MHz HRDDS method, like the FTDX101 series. Thanks to its characteristics
that improve the C / N (carrier / noise) ratio and the careful selection of components in the design, the phase noise characteristic
of the local signal reaches an excellent value of -145dB or less at 14MHz with 2kHz separation.
- 3DSS (3-Dimensional Spectrum Stream) on the 5-inch colour TFT display with touch-panel functionality
The 5-inch colour panel shows the 3DSS display. Touching the frequency display brings up the numeric keypad and
the active band and frequency can be set by direct input. Frequency setting and adjustment can also be done by turning the MAIN dial or touching the scope display. Similar to the FTDX101 series, the MULTI display, the RX operating status display, and the Center, FIX and Cursor modes are available.
- Front panel designed for superior operating efficiency
MPVD (Multi-Purpose VFO Outer Dial) is a large multi-purpose ring around the outside of the VFO dial that allows control of the
Clarifier, C / S (custom select function) and memory channel recall.
- Remote operation with optional LAN unit (SCU-LAN10)
Remote operation of the transceiver is possible with the optional SCU-LAN10 and SCU-LAN10 network remote control software.
Besides controlling the basic operations of the transceiver, the versatile scope displays allow sophisticated operations such as
monitoring band conditions on a large display at a location away from the ham shack via a connection to a home LAN.


Features of the new FTDX10 include:
- 15 separate band pass filters
- Effective QRM rejection with IF DSP (IF SHIFT / WIDTH, IF NOTCH DNF, DNR, COUNTOUR
- High quality, super stable final amplifier using the new RD70HUP2 push-pull MOSFET
- Aluminium heat sink with low-noise 80 mm axial-flow cooling fan
- High-speed automatic antenna tuner with a large 100-channel memory capacity
- RF and AF transmit monitor
- Microphone amplifier with three-stage parametric equaliser (SSB / AM modes)
- QMB (Quick Memory Bank)
- Band Stack function
- Optional speaker - SP-30 designed for the new FTDX10
- Optional roofing filter (300Hz) - XF-130CN available
