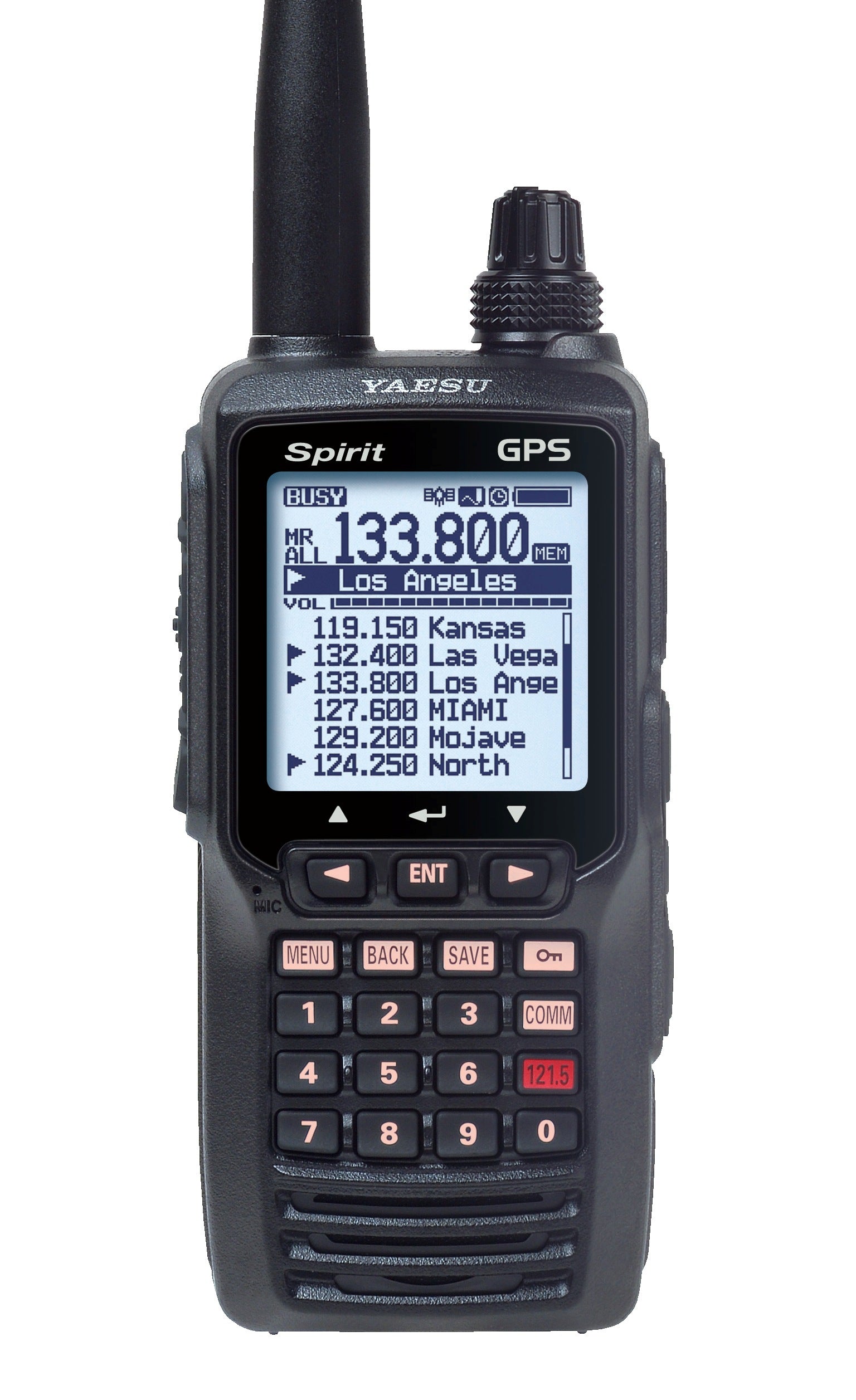

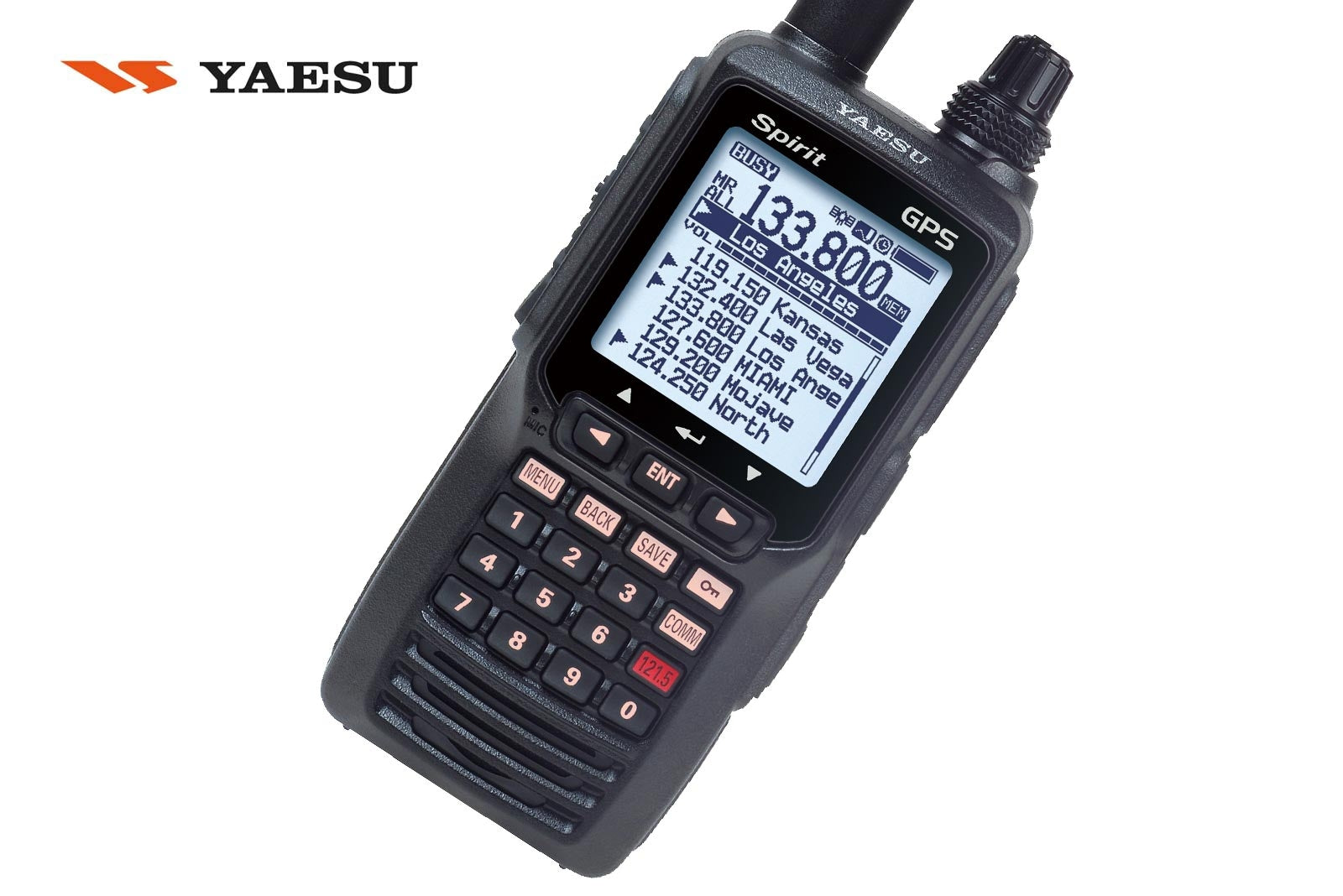

Yaesu FTA-750L Portable Aviation Transceiver with VOR and GPS





The Yaesu FTA-750L is a VHF Airband transceiver that includes a 66-channel GPS receiver for navigation.

Equipped with a large full dot matrix LCD display, the FTA-750L transceiver offers full communication on the Aircraft Communication Band ("COM" band: 118 ~ 136.975 MHz) and also provides VOR and ILS navigation functions on the "NAV" band (108 ~ 117.975 MHz), and waypoint navigation.

The Yaesu FTA-750L includes NOAA weather band monitoring and the ability to program up to 200 memory channels with a quick and easy channel recall feature. The new menu system is icon-driven, making it simple to navigate through all the powerful features of this transceiver and GPS. In addition, the Yaesu FTA-750L can be easily reprogrammed in minutes using the optional PC programming software and the supplied USB programming cable.



FEATURES:

- 5 Watt TX output power (aviation: AM 5W P.E.P. typ, container 1.5W);

- Large high-definition 1.7" x 1.7" (43.2 x 43.2 mm) (160 x 160 dots) display:

- ILS navigation display (localizer and glideslope);

- VOR navigation display • Integrated 66-channel WAAS GPS receiver;

- Waypoint navigation • Available GPS identification position operation*(1):

- Receives NOAA Weather Channels*(2) • NOAA Weather Alert*(2);

- 200 memorable channels with 15 alphanumeric characters;

- Backlit keyboard and display with dimmer;

- Water Protection - IPX5 Rating • Loud Audio (800 mW);

- Includes high-capacity Li-Ion rechargeable batteries (7.4 V 1800 mAh);

- Includes an alkaline battery tray (6 x AA)

- Headset adapter included

- Cigarette lighter adapter included

- 66-channel WAAS GPS receiver! The FTA-750L features an integrated 66-channel WAAS GPS receiver that provides the ability to quickly store current position information, as well as manually entering waypoints for reliable navigation.

- When a waypoint is activated, the navigation screen features a compass display.

- GPS Position logging operation!

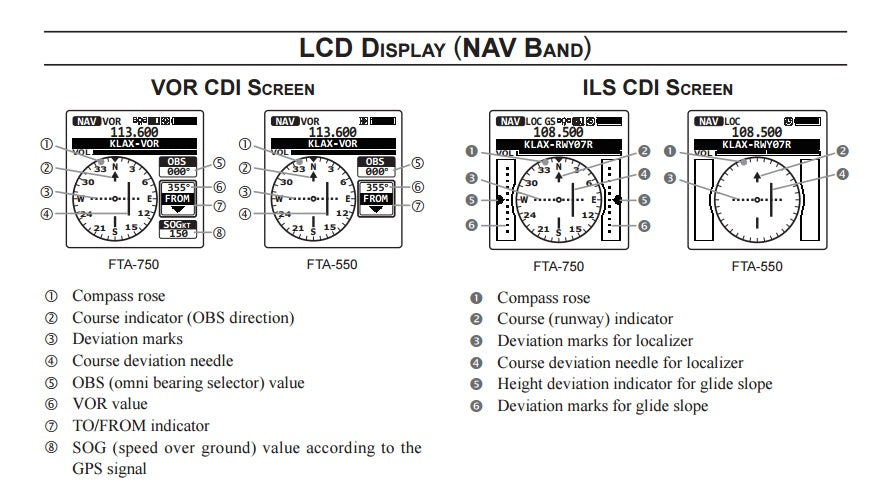

The FTA-750L includes a GPS logging feature which, when activated, automatically stores position information at preset intervals. This is a great feature when backtracking is necessary. ILS (Localizer & Glide Slope) and VOR navigation! When the FTA-750L receives a VOR signal, the display will automatically switch to the navigation band screen, with CDI (Course Deviation Indicator) based on the received VOR signal. It features a large 1.7" x 1.7" full dot matrix LCD display with full backlight and dimmer. The high-resolution display makes it easier to view all the great features the FTA-750L has to offer. Well accessorized! Includes rechargeable Lithium-Ion (Li-Ion) batteries, battery charger, DC cigarette lighter adapter, headset adapter cable, alkaline battery case, belt clip, and USB programming cable. The Yaesu FTA-750L features an IPX5 waterproof design. Great for flight line personnel. The audio amplifier makes the FTA-750L louder than any other portable transceiver available today (e.g., it is about 35% louder than the Icom IC-A23). The Yaesu FTA-750L is powered by a high capacity 1800 mAh Lithium-Ion battery that will last over 12 hours between charges. 200 memory channels can be easily programmed into the FTA-750L allowing quick access to frequently used channels on the aviation band. Each channel can be programmed into the unit using the included PC programming software and cable. All memory channels can be labeled with a channel assignment number, operating frequency display, or an alphanumeric channel name display. Press the Squelch button for two seconds and the FTA-750L's squelch remains open to monitor weak and distant signals. Pressing Squelch again resets settings. Battery Saver is designed to maximize the transceiver's battery life. When the FTA-750L is in standby mode, battery saver de-energizes the transceiver's circuit, waking up at user-selected intervals to sample for radio activity. If no activity is detected, the FTA-750L returns to its sleep mode. Current consumption is minimized. This feature is only found on Yaesu airband transceivers! The FTA-750L can receive all 10 NOAA weather broadcast frequencies.

Weather Channel Locator, automatically scans for active NOAA weather stations in your area when the Weather band is selected.

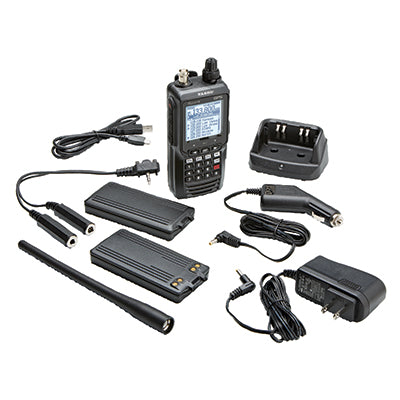

The transceivers are supplied with the following accessories:

- Antenna

- 1800mAh lithium battery pack (SBR-12LI)

- Desktop charging cradle (SBH-11) complete with 220Vac adapter (SAD-11)

- 12V DC adapter with cigarette lighter plug (SDD-12)

- Headset adapter (SCU-15)

- 6 x AA alkaline battery holder (SBT-12)

- Belt clip

- USB cable (T9101606)

- User manual.

The YAESU FTA-750L Combines tradition with innovation. Born from a history of high quality communications the FTA-750L now includes a 66 channel GPS receiver for reliable navigation. Boasting an oversize full dot matrix LCD display, the FTA-750L Airband Transceiver / GPS provides full communication on the Aircraft communications Band and additionally provides VOR and ILS navigation features on the "NAV" band, and waypoint navigation with the built in GPS receiver. The FTA-750L includes NOAA weather band monitoring and the capability of programming up to 200 memory channels with a quick and easy channel recall feature. The brand new easy to operate menu system is icon driven making it simple to navigate through all of the powerful features this transceiver / GPS has to offer. Additionally the FTA-750L can easily be reprogrammed in minutes using the optional PC Programming software and the supplied USB programming cable.
