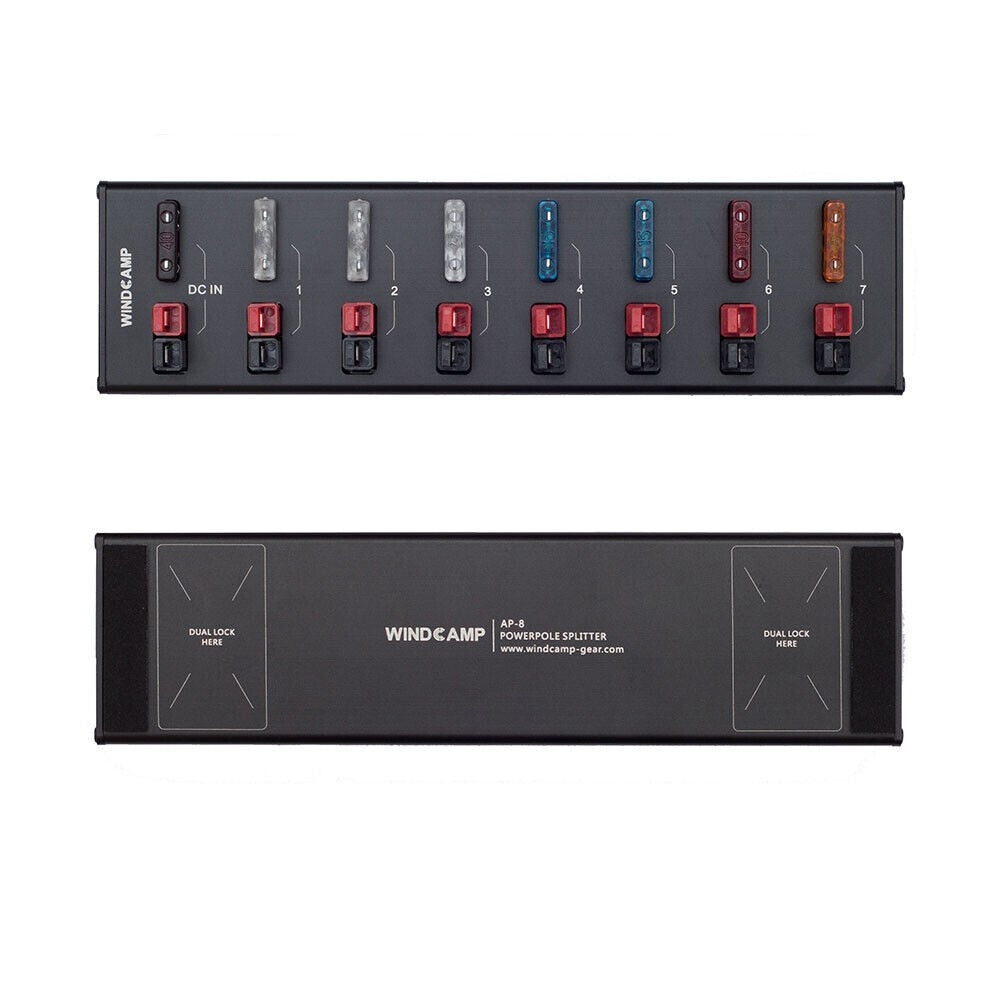

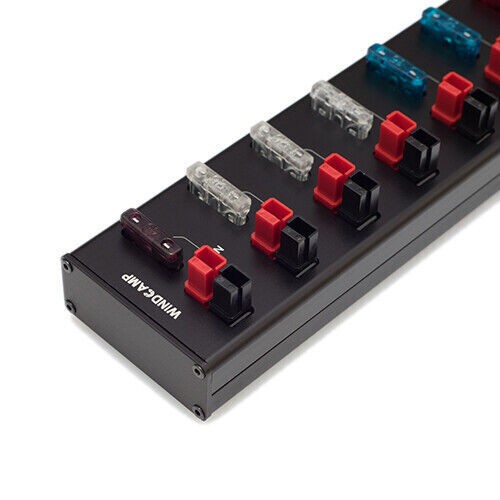

AP-8 Power Splitter
The AP-8 Power Splitter has one input and seven outputs, based on Anderson Powerpole.
It is compatible with 15A, 30A, 45A Anderson Powerpole. One input connection communication power supply, seven outputs can be connected to transceivers, tuners, power amplifiers and other equipment. The maximum single carrying current is 25A, and the maximum input carrying current is 40A.
Specifications
Operating voltage: =DC 36V
Fuse configuration: DC IN(40A*1), OUT(25A*3, 15A*2, 10A*1, 5A*1)
Dimensions: 208×50×35 (WDH, mm)
Net weight: 185 g

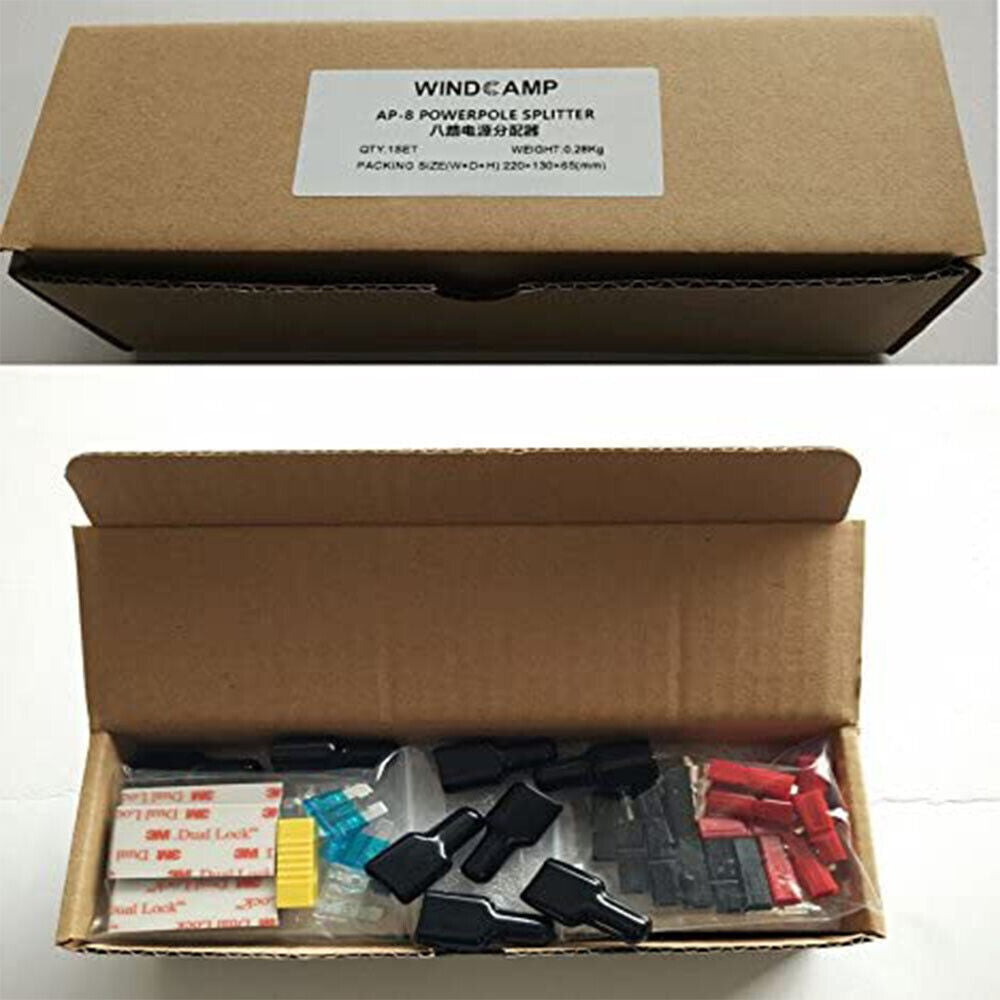

Package contents

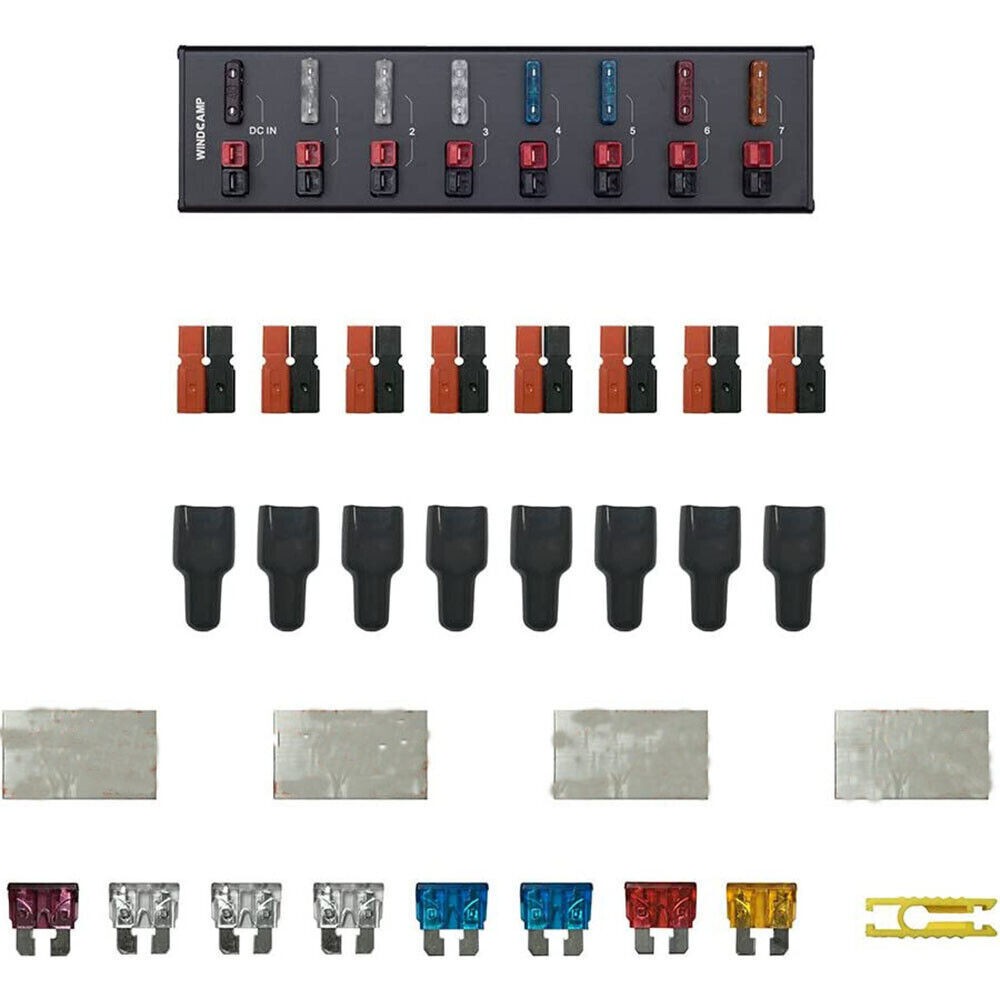

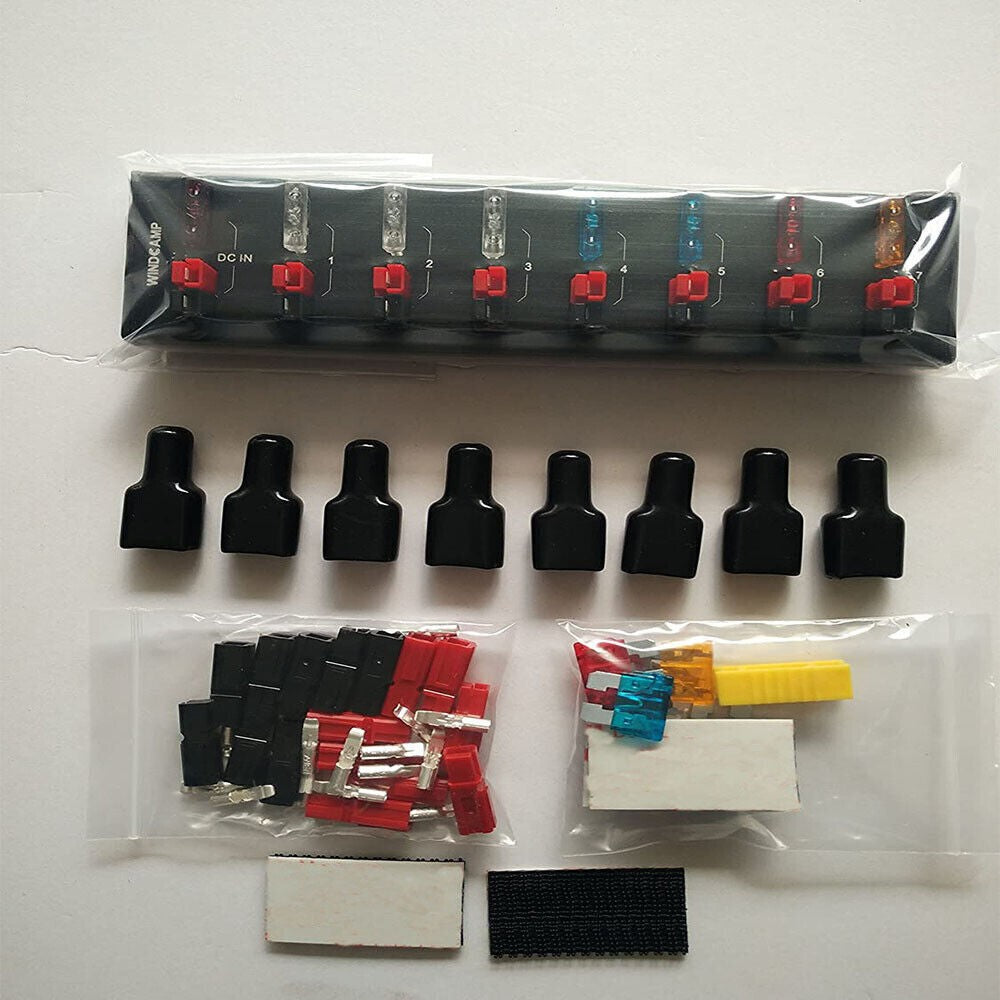

AP-8 Power Splitter × 1, Spare fuse × 1, Fuse puller × 1, 30/45 A Powerpole × 8, Sleeve × 8, Expansion tube × 4, Fixed screw × 4
