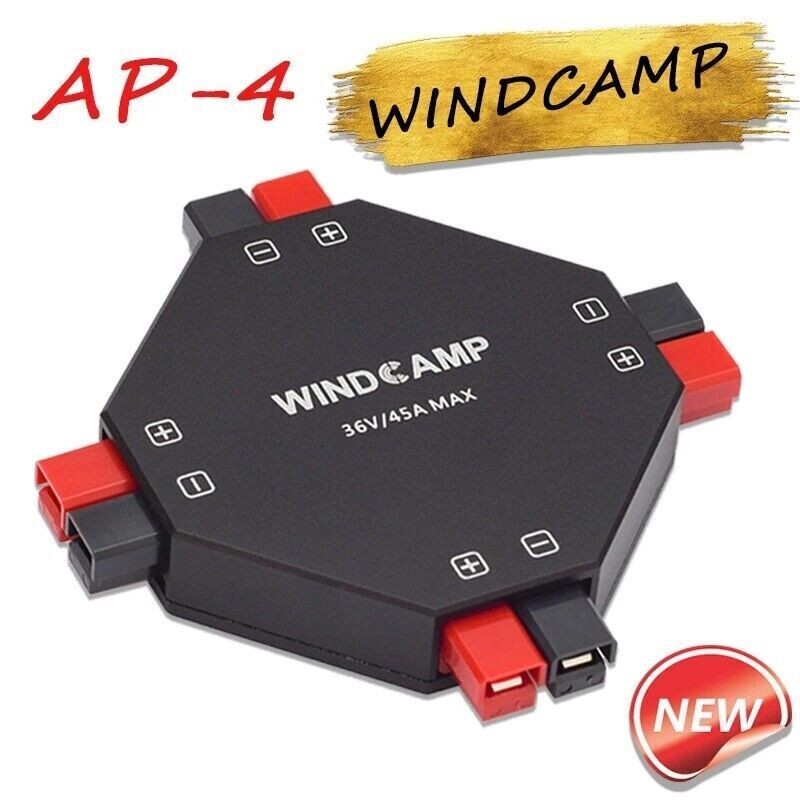

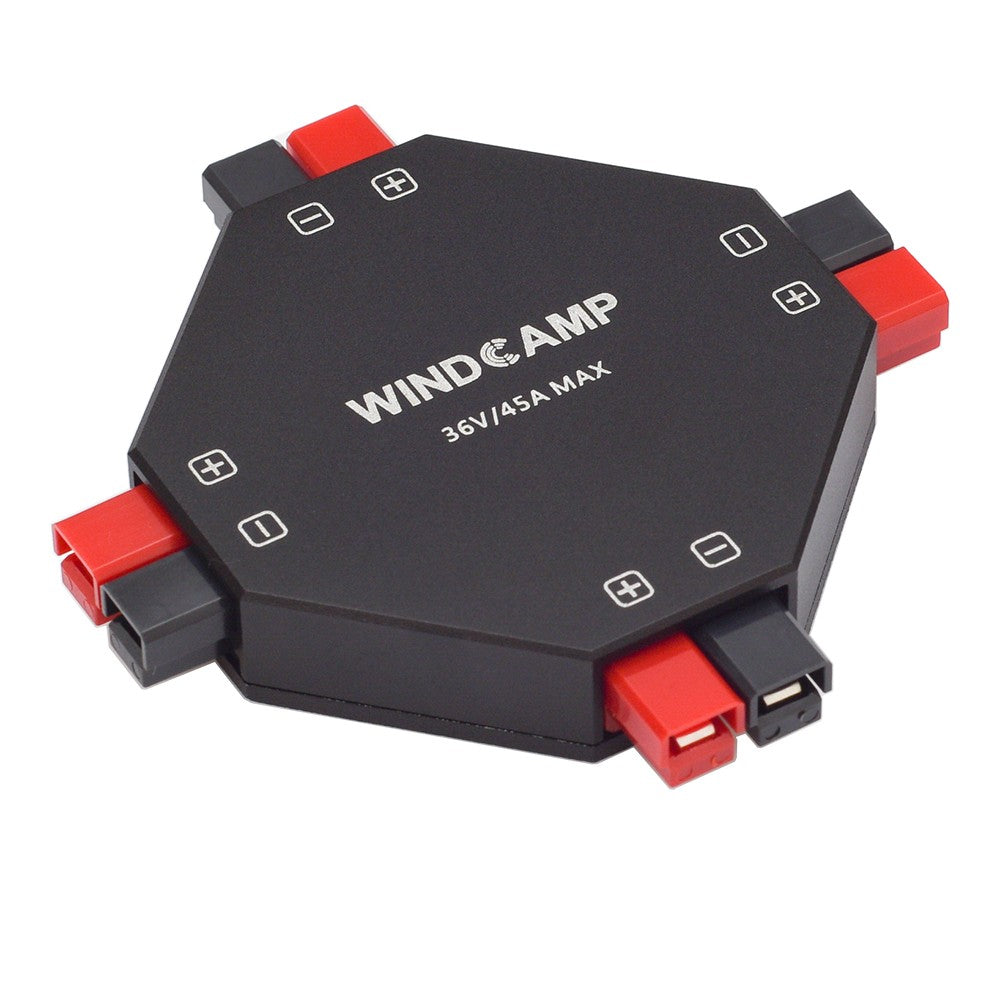

The AP-4 Power Splitter is a one-in and three-out based on Anderson Powerpole.
It is compatible with 15A, 30A, 45A Anderson Powerpole, a communication power supply with input connection, three outputs can be connected to transceiver, tuner, power amplifier and other equipment, the maximum carrying current is 45A.
Specifications
Operating Voltage: =DC 36V
Operating Current (long-term): 30A
Operating Current (short-term): 45A
Dimensions: 74×74×13 (WDH, mm)
Net weight: 65g
Packing List

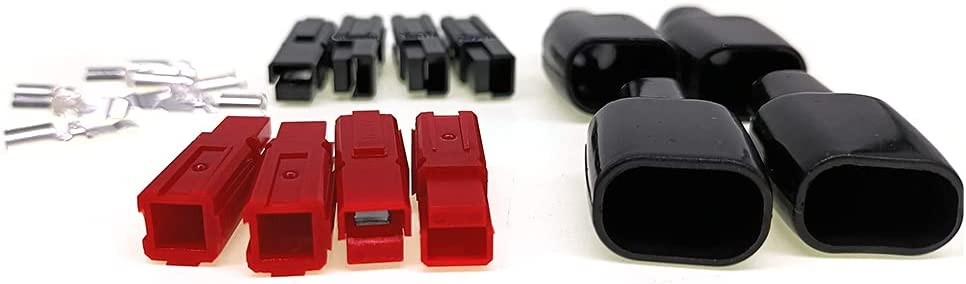

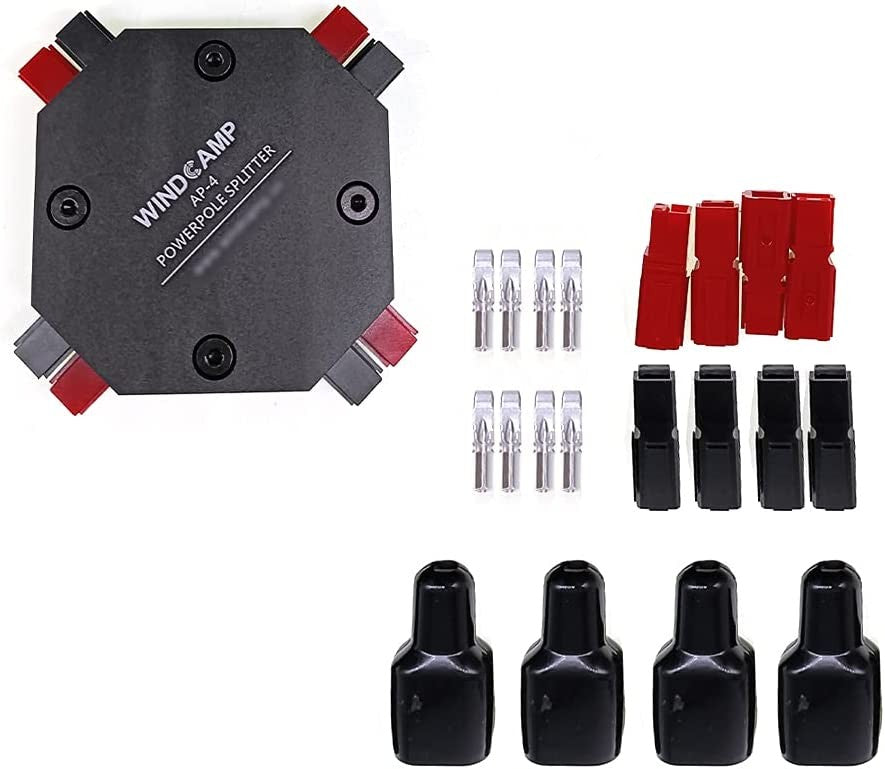

AP-4 Power Splitter × 1, 30/45A Powerpole × 4, Sheath × 4
