Status Quad 3 StQ 50 3 elements 6 m
3-element cubical quad antenna for 50 MHz, 2.44 m boom, aluminium and fibreglass construction

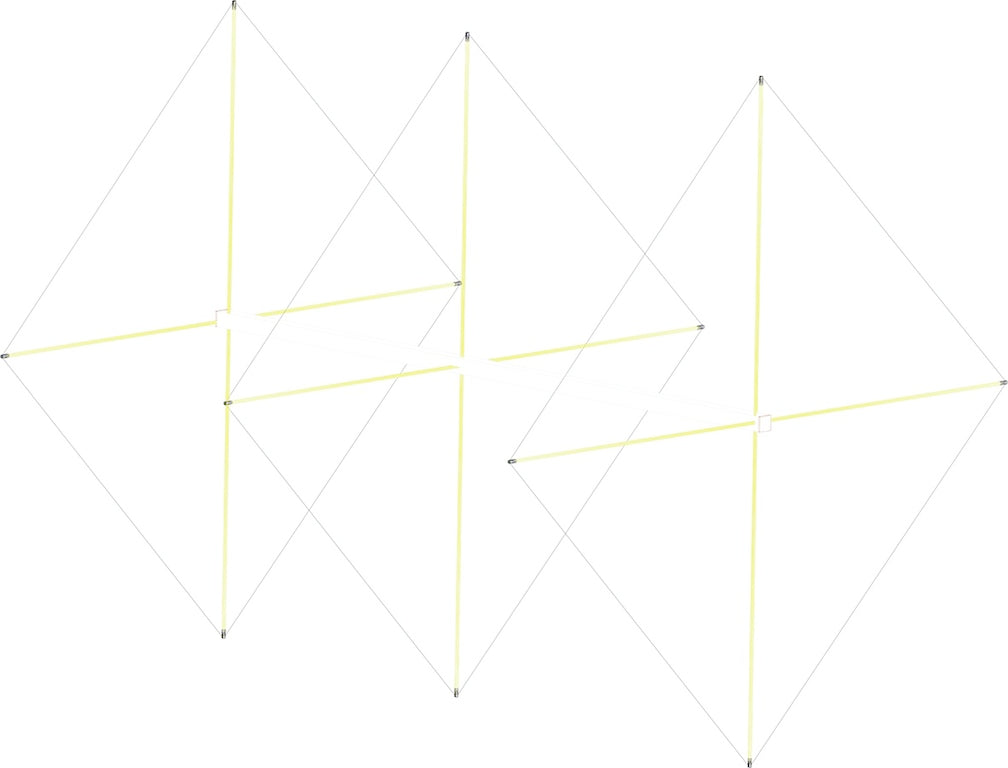

The Status Quad 3 StQ 50 is a 3-element cubical quad antenna for 50 MHz, built in Italy by Status Quad with a 2.44 m boom.
Product description
Status Quad antennas for 6 m and VHF are made with the same care as the HF models, focusing on mechanical reliability and ease of assembly.
The boom-to-mast plate is entirely aluminium, CNC cut and drilled, with the boom seat machined into the plate to prevent any movement. The aluminium U-bolts clamp masts from 40 to 65 mm.
The boom is 50 × 50 mm square aluminium tube, 2 mm wall. The spreaders are 10 mm fibreglass rod and the wire is held by Status Quad-designed clips. The loops are 2.57 mm stranded aluminium wire.
Key features
Boom locked with no play.
Square aluminium tube.
2.57 mm aluminium.
Technical specifications
| Type | 3-element quad |
| Band | 50 MHz |
| Boom length | 2.44 m |
| Boom | Square aluminium 50 × 50 mm, 2 mm wall |
| Spreaders | Fibreglass rod Ø 10 mm |
| Loops | Stranded aluminium wire Ø 2.57 mm |
| Plate | CNC-machined aluminium |
| Mast | Ø 40–65 mm |
