Status Quad 3/6 StQ 50/144 6 m and 2 m
Cubical quad antenna with 3 elements on 50 MHz and 6 elements on 144 MHz for 50 and 144 MHz, 2.44 m boom, aluminium and fibreglass construction

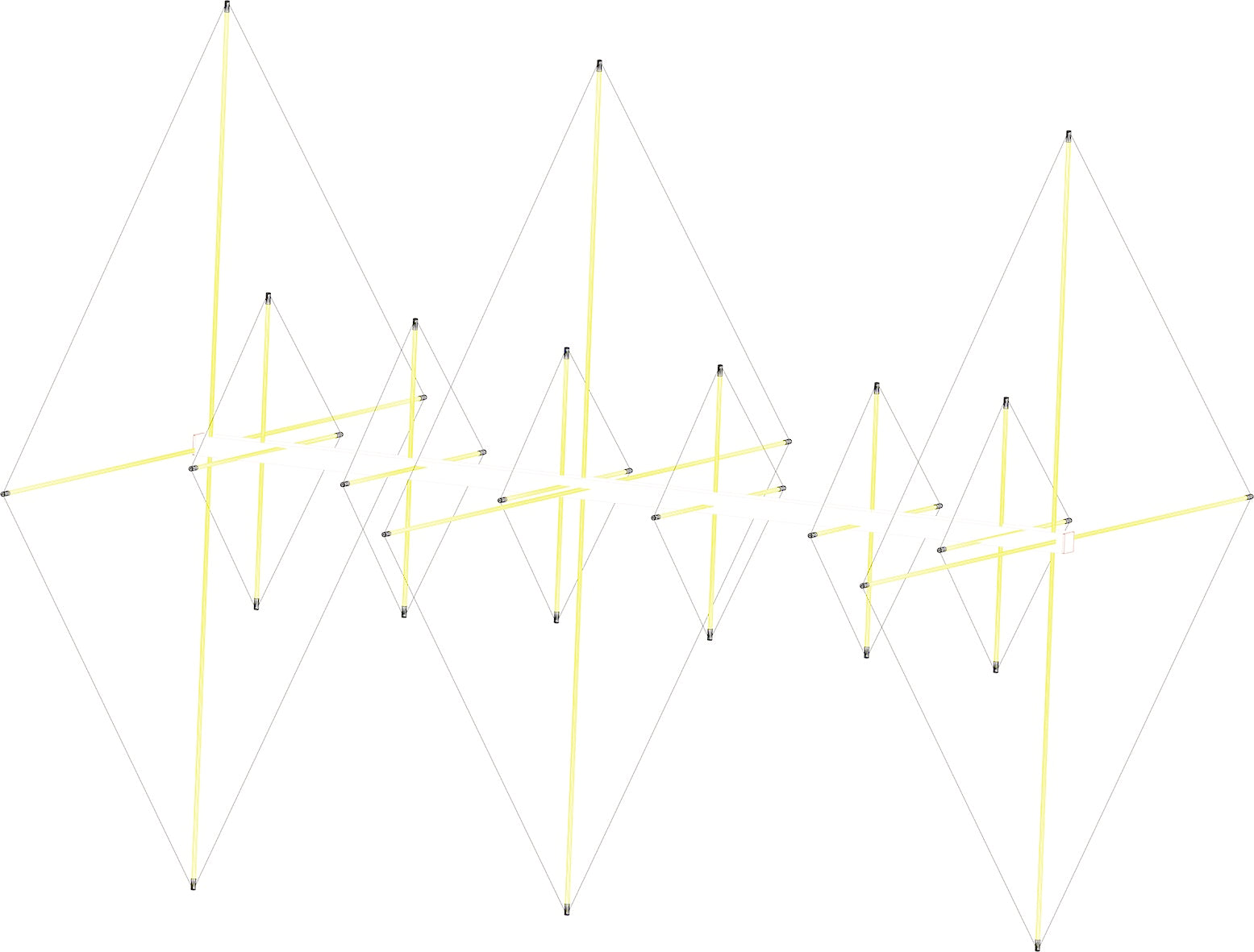

The Status Quad 3/6 StQ 50/144 is a cubical quad with 3 elements on 50 MHz and 6 elements on 144 MHz for 50 and 144 MHz, built in Italy by Status Quad with a 2.44 m boom. It combines two antennas on the same boom.
Product description
Status Quad antennas for 6 m and VHF are made with the same care as the HF models, focusing on mechanical reliability and ease of assembly.
The boom-to-mast plate is entirely aluminium, CNC cut and drilled, with the boom seat machined into the plate to prevent any movement. Aluminium U-bolts clamp masts from 40 to 65 mm.
The boom is 50 × 50 mm square aluminium tube, 2 mm wall. The elements are 10 mm fibreglass rod and the conductor is fixed with Status Quad-designed fittings. The loops are 2.57 mm aluminium stranded wire.
Key features
Boom locked without play.
Square aluminium tube.
2.57 mm aluminium.
Technical specifications
| Type | Quad with 3 elements on 50 MHz and 6 elements on 144 MHz |
| Band | 50 and 144 MHz |
| Boom length | 2.44 m |
| Boom | Square aluminium 50 × 50 mm, 2 mm wall |
| Elements | Fibreglass rod Ø 10 mm |
| Loops | Aluminium stranded wire Ø 2.57 mm |
| Plate | CNC-machined aluminium |
| Mast | Ø 40–65 mm |
