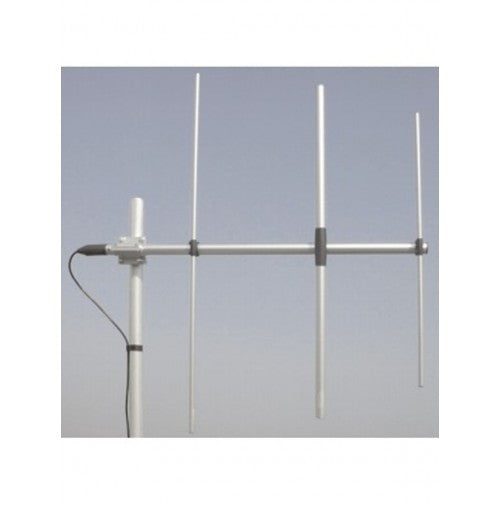

3 element yagi antenna for aeronautical band
Broadband, Symmetrical radiation pattern
Product code:
2113501/108
WY 108-3N
Electrical data:
Type:
3 elements - Yagi
Radiation:
Directional
Polarization:
Linear Vertical or Horizontal
Frequency band:
108-137 MHz No tuning required
Systems:
VHF aeronautical band
Gain:
4.85 dBd - 7 dBi
Max. power:
200 W (CW)
Ground protection:
Short-circuited to ground
Connector:
N-female
Mechanical data:
Materials:
Anodized aluminum, Nickel-plated brass, UV-stabilized thermoplastic, EPDM rubber
Dimensions (approx):
1400 x 910 mm / 4.59 x 2.99 ft
Weight (approx):
1860 gr / 4.1 lb
Mounting type:
On mast
Product code: |
|
|---|---|
| 2113501/108 | WY 108-3N |
Electrical data: |
|
|---|---|
| Type: | 3 elements - Yagi |
| Radiation: | Directional |
| Polarization: | Linear Vertical or Horizontal |
| Frequency band: | 108-137 MHz No tuning required |
| Systems: | VHF aeronautical band |
| Gain: | 4.85 dBd - 7 dBi |
| Max. power: | 200 W (CW) |
| Ground protection: | Short-circuited to ground |
| Connector: | N-female |
Mechanical data: |
|
|---|---|
| Materials: | Anodized aluminum, Nickel-plated brass, UV-stabilized thermoplastic, EPDM rubber |
| Dimensions (approx): | 1400 x 910 mm / 4.59 x 2.99 ft |
| Weight (approx): | 1860 gr / 4.1 lb |
| Mounting type: | On mast
|
