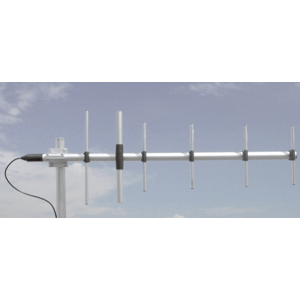

WY 457-6N
Professional 6-element UHF band directional antenna
Broadband and highly symmetrical radiation pattern
UPDATED
Features: Mast mounting bracket: maximum diameter increased to 60 mm
Product Number:
2113601/457
WY 457-6N
Included:

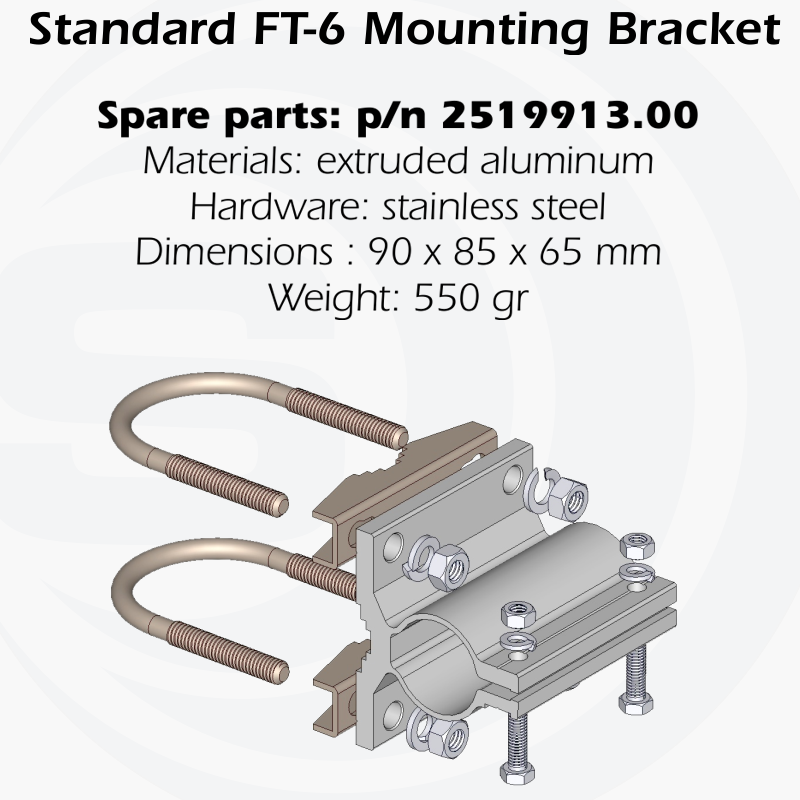

Bracket: FT-6
Electrical Data:
Type:
6-element Yagi
Radiation:
Directional
Polarization:
Linear horizontal
Frequency range:
WY 457-6N:
457.3-467.5 MHz @ SWR =1.5 No tuning required
Systems:
70 cm-HAM, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433 MHz
Gain:
8.85 dBd – 11 dBi
Max. power:
150 W (CW)
Grounding protection:
DC-Ground
Connector:
N-female
Mechanical Data:
Materials:
Anodized aluminium, chromed brass, UV stabilized thermoplastic, EPDM rubber
Dimensions (approx.):
WY 457-6N:
1030 x 340 mm / 3.38 x 1.12 ft
Weight (approx.):
WY 457-6N:
1450 gr / 3.2 lbs
Mounting type:
On the mast
Suitable Accessories:

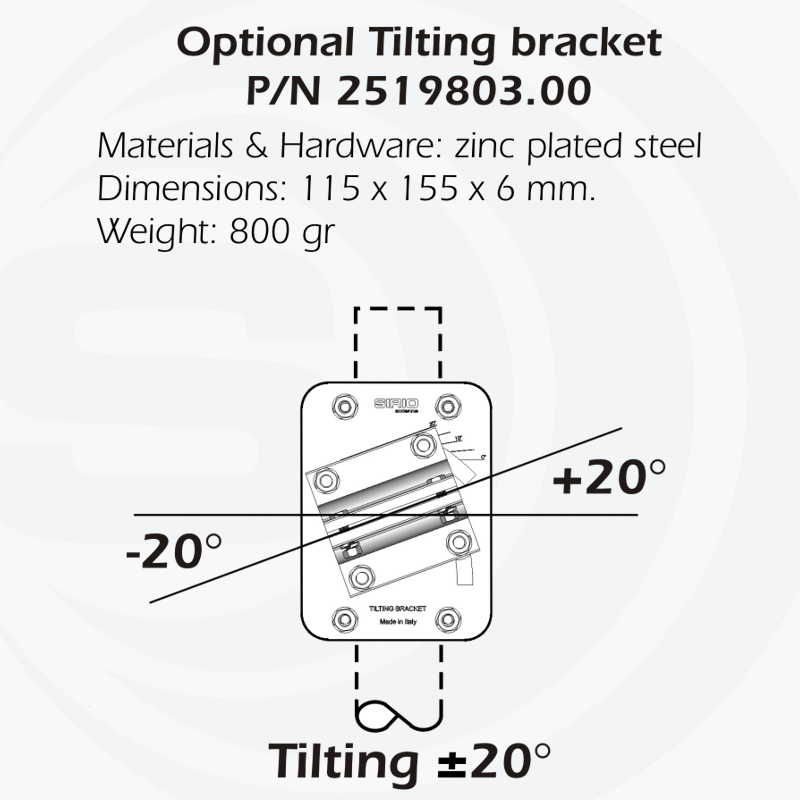

Tilting bracket for WY series
