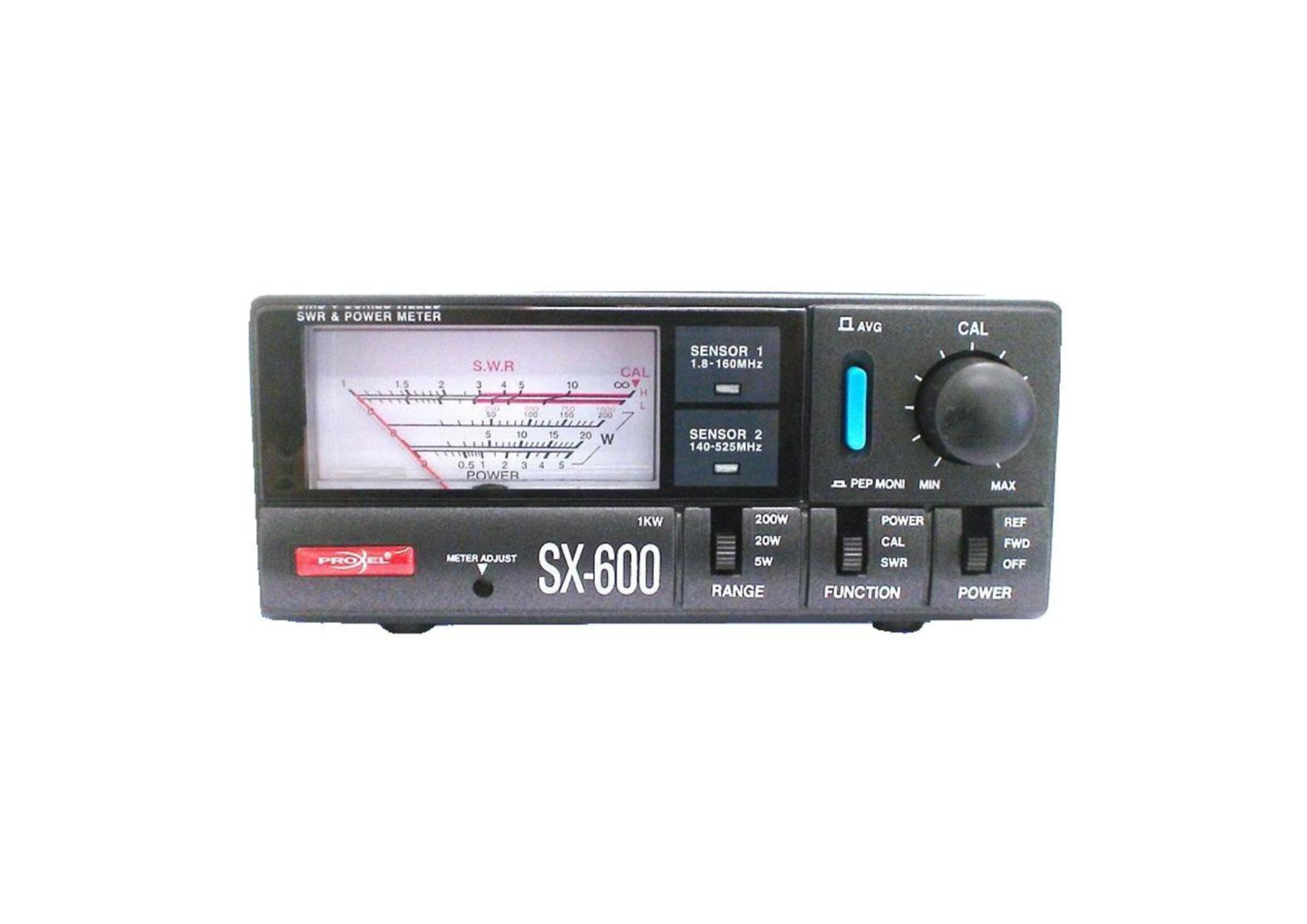

PROXEL SX-600
Bi-Sensor SWR/Wattmeter 1.8 - 525 MHz
The Total Solution for HF, VHF, and UHF
The **Proxel SX-600** is the ultimate tool for the modern radio amateur operating on multiple bands. Thanks to its **dual internal sensor** system, it allows simultaneous connection of two different transmission lines (e.g., HF and VHF/UHF) and monitoring them by simply using the front selector.
The large cross-needle meter provides an immediate reading of the Standing Wave Ratio (SWR) and power, with selectable scales up to **200 Watts**. Its precision and backlighting make it an indispensable element in any well-equipped radio station.
Why choose the SX-600?
● DUAL INPUT (S1/S2)
Independent sensors: the first for HF/VHF (1.8-160 MHz) and the second for VHF/UHF (140-525 MHz).
● PEP MONITORING
Accurate Peak Envelope Power (PEP) measurement, essential for monitoring SSB modulation.
● CROSS-NEEDLE METER
Simultaneous display of Forward Power, Reflected Power, and SWR at the needles' intersection point.
TECHNICAL SPECIFICATIONS
| Frequency Range S1 | 1.8 - 160 MHz |
| Frequency Range S2 | 140 - 525 MHz |
| Power Scales | 5W / 20W / 200W |
| RF Connectors | SO-239 (PL Socket) on both sensors |
| Dimensions | 155 x 63 x 103 mm |
HamRadioShop | Authorized Proxel Italy Dealer
Disclaimer: Ensure to correctly select the sensor (S1 or S2) via the front switch before transmitting. The instrument requires 13.8V power for backlighting (DC cable included).
