PST10DL

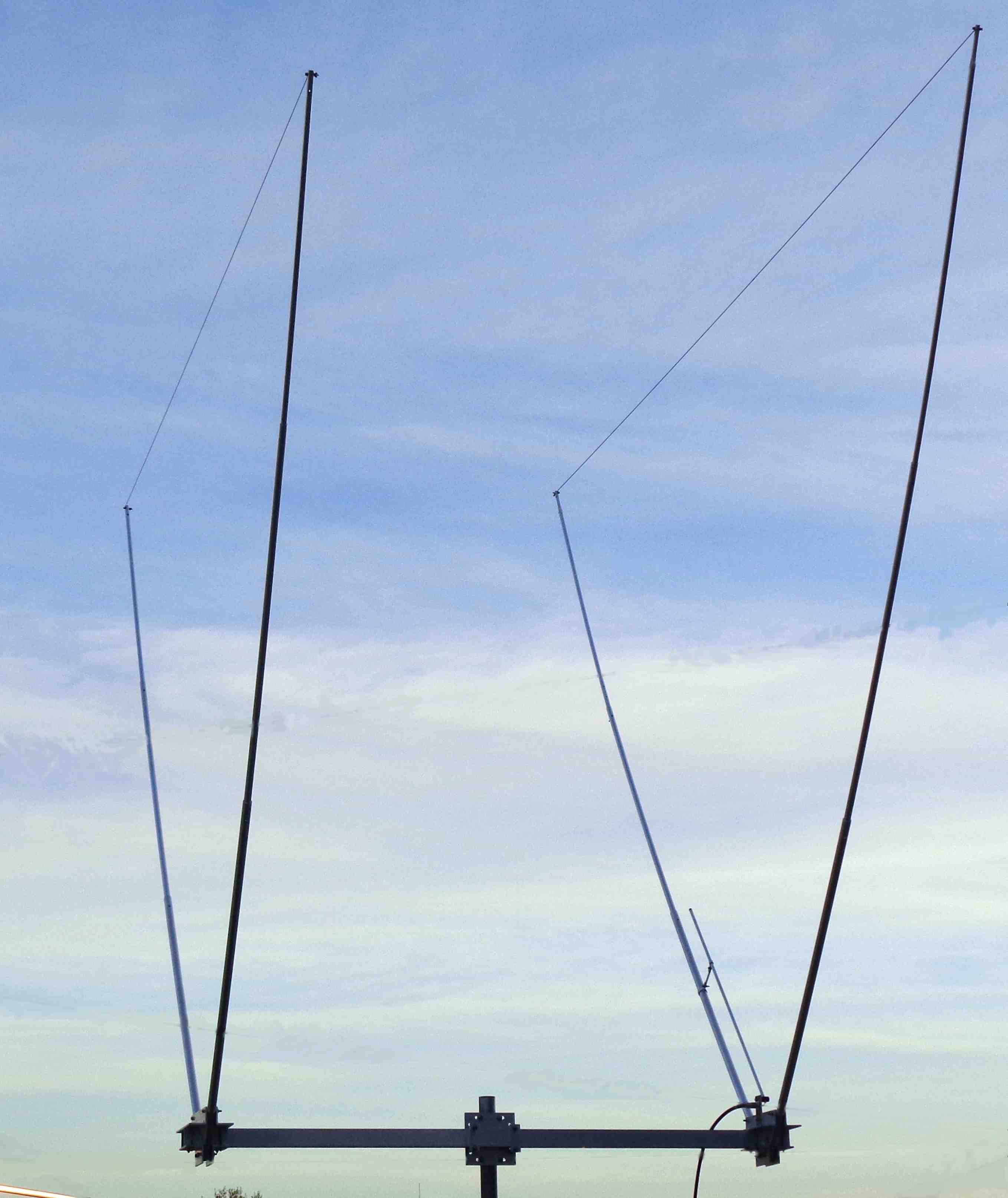

Mini single-band 2-element Delta Loop that covers the 10 or 11m bands. Very robust construction, made in a “radiator-director all to ground” configuration. The gamma match coupler gives the antenna better performance in terms of impedance matching and excellent useful bandwidth. Its small size and lightness make it easy to use even in confined spaces. For optimal operation, it is recommended to mount it at a height of at least 4-5m from the ground.
PST-11DL version available
MASS SPECIFICATIONS:
- Gain: 6-8 dBd
- Impedance: 50 ohm
- Front-to-back: approx. 18-20dB
- Front-to-side: >25dB
- SWR: <1:1 at band center, band edges within 1:1.8
- Boom length: 1.3m
- Turning radius: 65cm
- Weight: approx. 8kg
- Accepts: 48mm mast (standard) or 60mm (optional)
- Material: AL6060T6, stainless steel hardware.
