PST-RD3017S

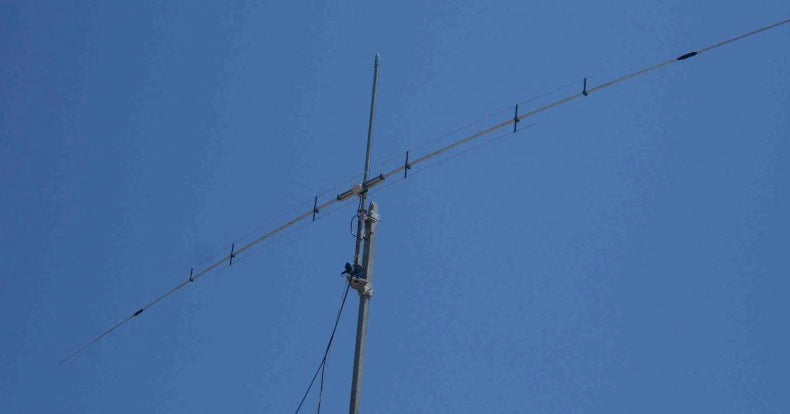

Loaded and modular rotary dipole for 30 and 17m (6m). It effectively combines 3 antennas in one, modular as it can be easily expanded with full-size elements, chosen from 15, 12, and 10m. Total coverage of all bands, also works well on 6m.
Max power: 2Kw pep.
SPECIFICATIONS:
- Gain: 0 dBd
- Impedance: 50 ohm
- Front-to-side: approx. 15 dB
- SWR: >=1.5:1
- Recommended 1:1 balun
- Length: approx. 9.8m
- Turning radius: approx. 4.9m
- Weight: approx. 7 kg
- Wind load: 0.12m2
- Max wind speed: 130km/h
- Accepts mast from: 42 to 50mm (60mm on request)
- Material: ERGAL plate - AL6060T6 tubes, stainless steel hardware
