Nissei NS-1230D 30 A
Switching power supply, 25 A continuous (30 A max), adjustable 5–16 V, digital display

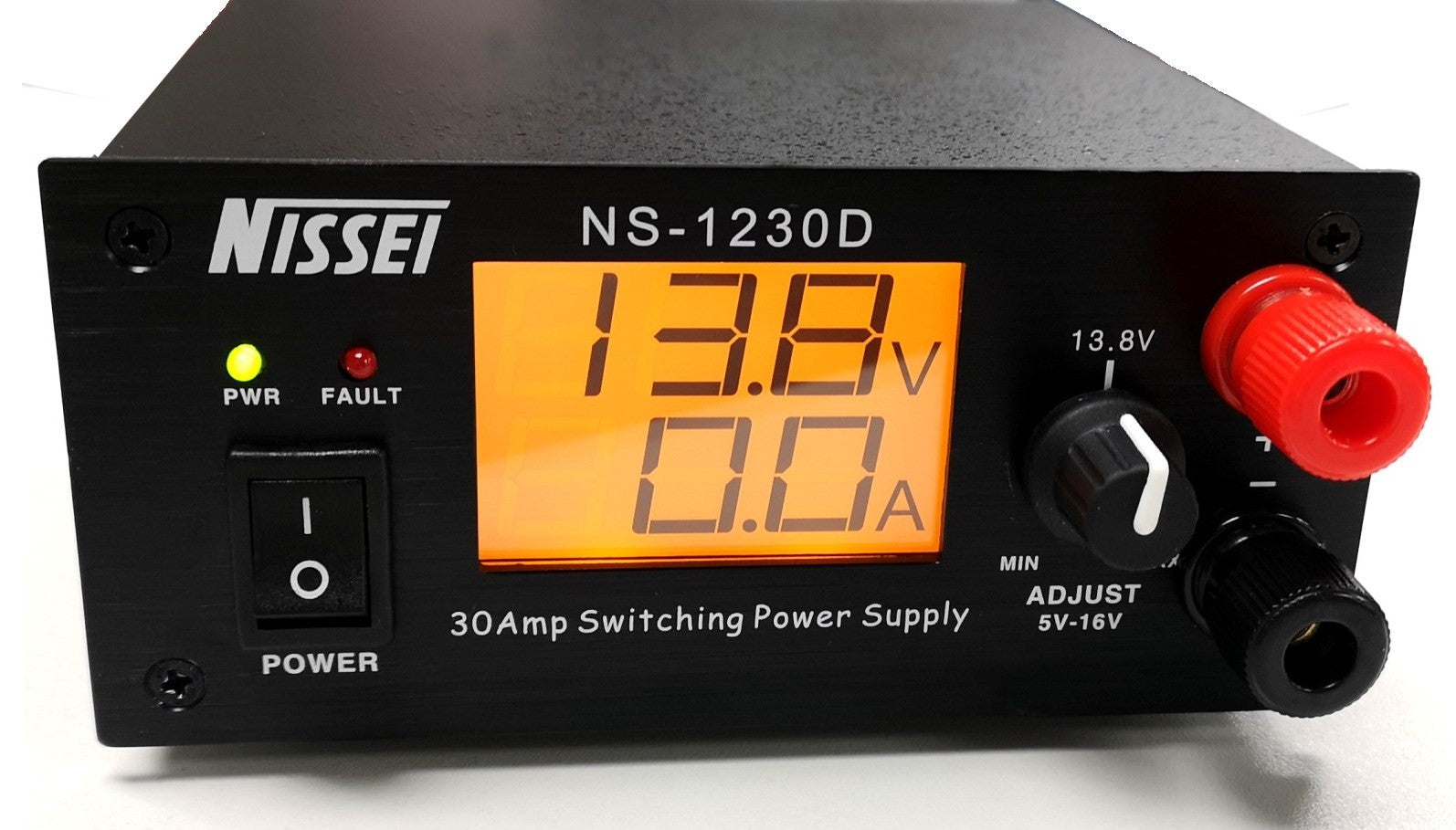

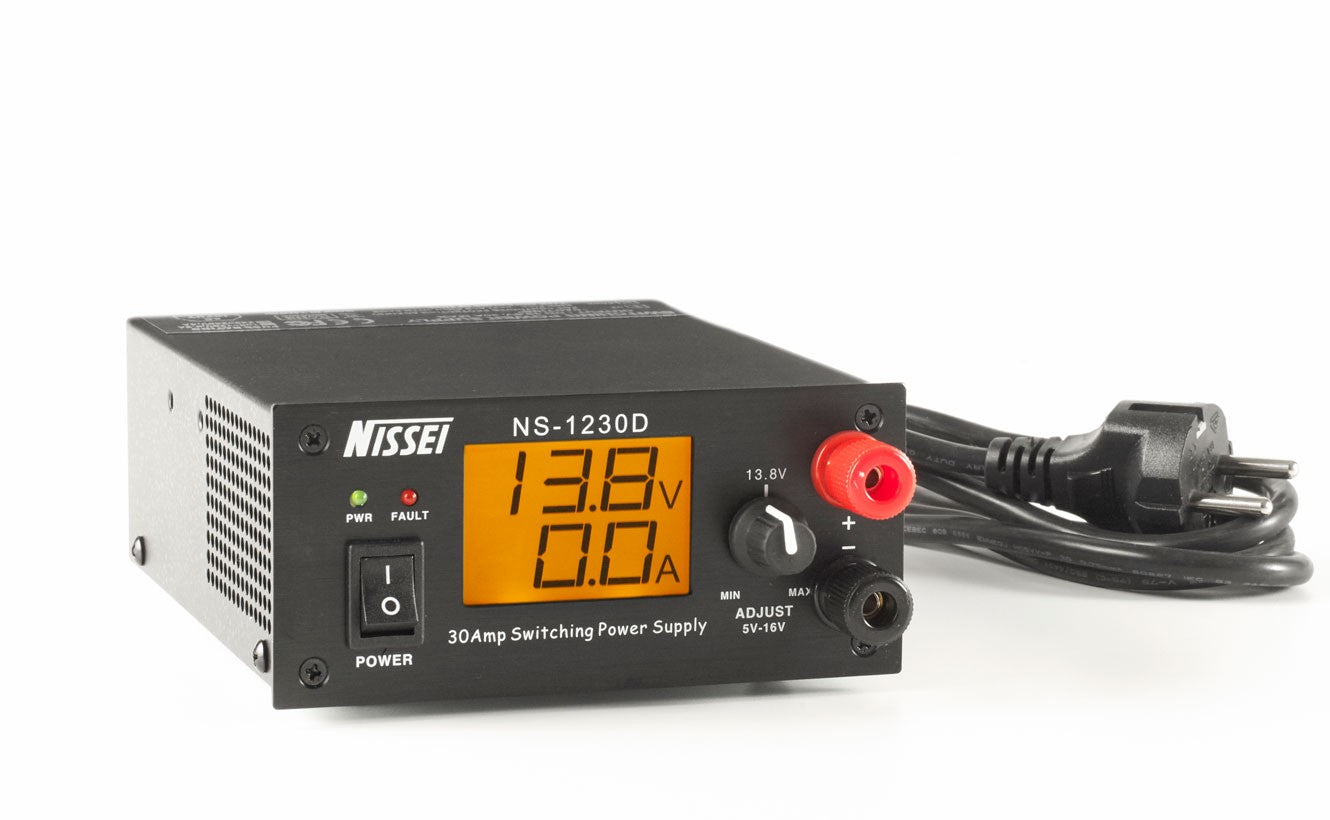

The Nissei NS-1230D is a compact switching power supply delivering 25 A continuous at 13.8 V (30 A intermittent), with output voltage adjustable from 5 to 16 V and a backlit digital LCD display.
Product description

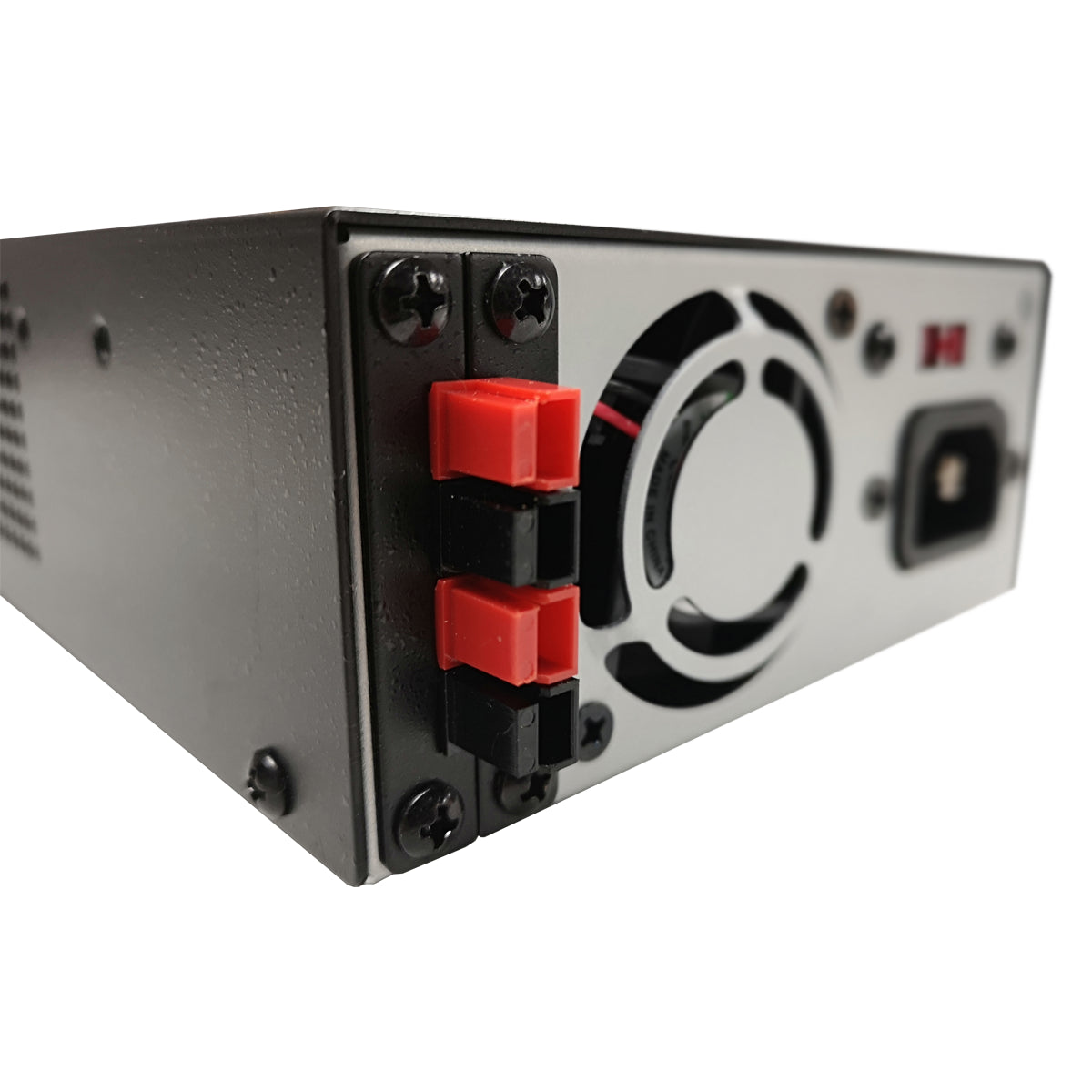

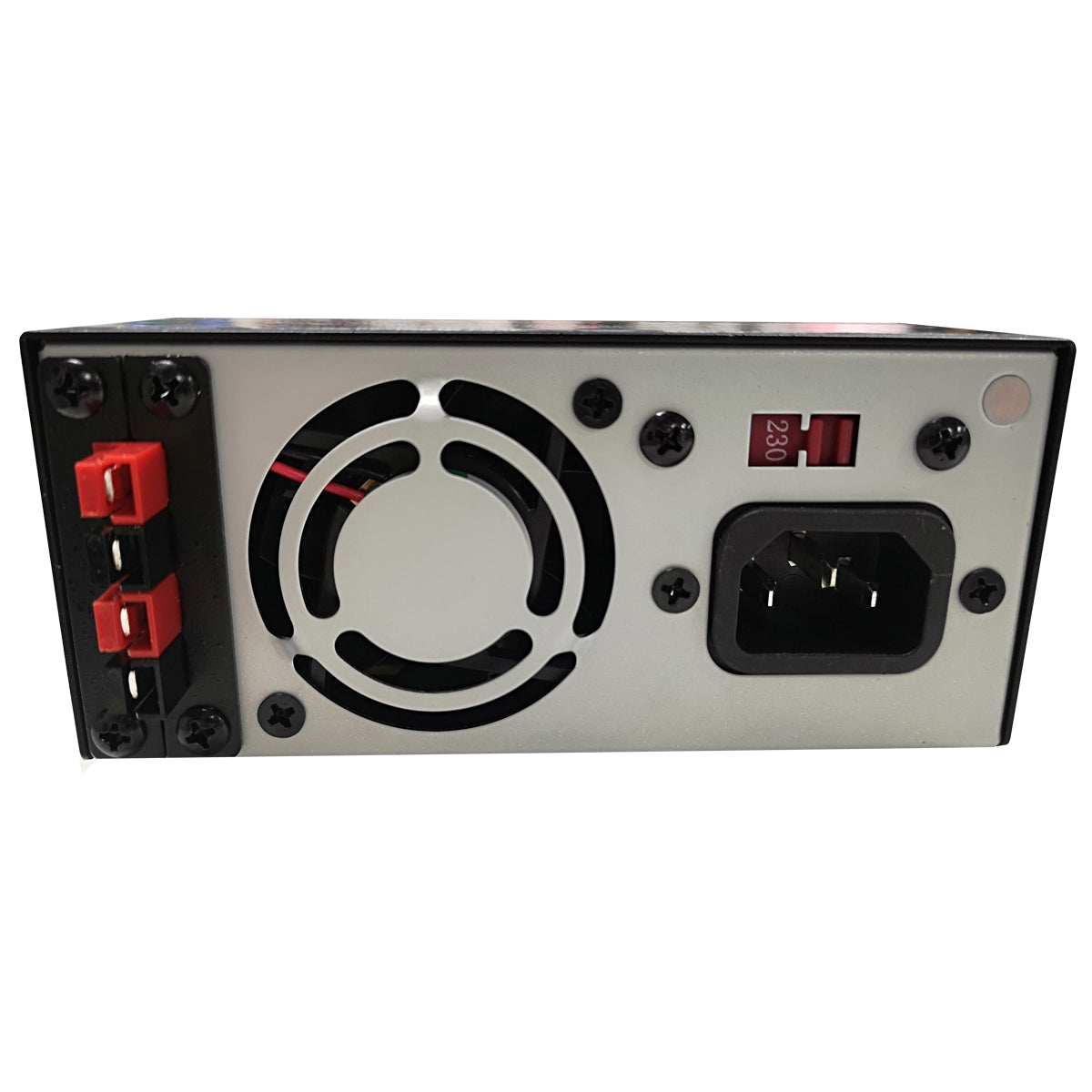

It is the digital-meter version of the NS-1230M. Selectable 110/220 V input, cooling fan, short-circuit, overload and overvoltage protection. Power terminals on the front and Anderson sockets on the rear.
Key features
25 A continuous
30 A intermittent.
Digital display
Backlit LCD.
Compact
Only 1.35 kg.
Specifications
| Current | 25 A continuous at 13.8 V · 30 A max |
| Output voltage | 5–16 V adjustable |
| Ripple | < 0.3% peak-to-peak |
| Input | 110 / 220 V AC ±10%, 47–63 Hz |
| Protections | Short circuit, overload, overvoltage |
| Dimensions | 154 × 127 × 63 mm (W × D × H) |
| Weight | 1.35 kg |
