DESCRIPTION AND OPERATION
MorCoNI was created to eliminate the problem of sidetone latency in remote CW operation. The Deluxe unit is the top of the range, delivered fully assembled, programmed with the latest firmware and lab-tested.
COMPLETE TECHNICAL SPECIFICATIONS
-- HARDWARE: Fitted with a high-quality speed potentiometer, status LED and 4 built-in memory buttons for pre-recorded messages.
-- BOOT MESSAGE: At start-up, the unit sends a CW message (format CFXXX/Y/Z or CGXXX/Y/Z) indicating the firmware version, configuration and mode (Remote/Local).

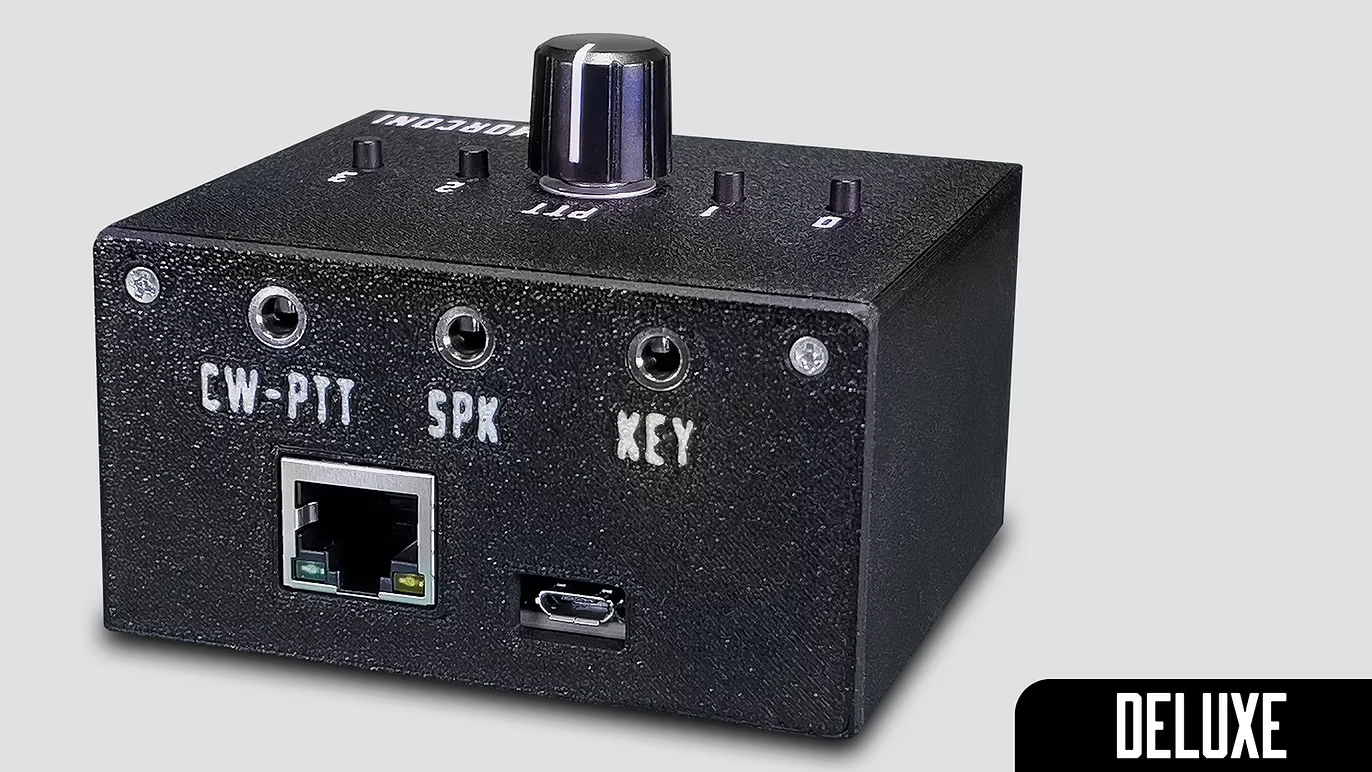

-- CONNECTIONS:
• KEY jack (3.5mm TRS): For straight key, bug or paddle.
• SPK jack (3.5mm TRS): Sidetone output for powered speakers or PC audio input.
• CW/PTT jack: Solid-state relay for controlling the local radio (Deluxe version only).
-- NETWORK AND CONFIGURATION: The MicroSD card on the back contains the configuration file (DHCP or static IP). For use over the Internet, NAT port forwarding is required: 4992 (Flex) or 57373 (AllRigs Server).
SUPPORT AND DOWNLOAD CENTRE
For detailed pinouts, ready-made configuration files and firmware updates:
