MorCoNI BUNDLE ALL-RIGS
Exclusive distribution: HamRadioShop Italy
COMPLETE SOLUTION FOR REMOTE CW
This package includes both units needed to operate CW on any remote radio station (non-FlexRadio). The bundle includes the MorCoNI Classic (operator side) and the MorCoNI All-Rig Server (radio side), providing a "turnkey" system with no sidetone latency.
SYSTEM TECHNICAL SPECIFICATIONS

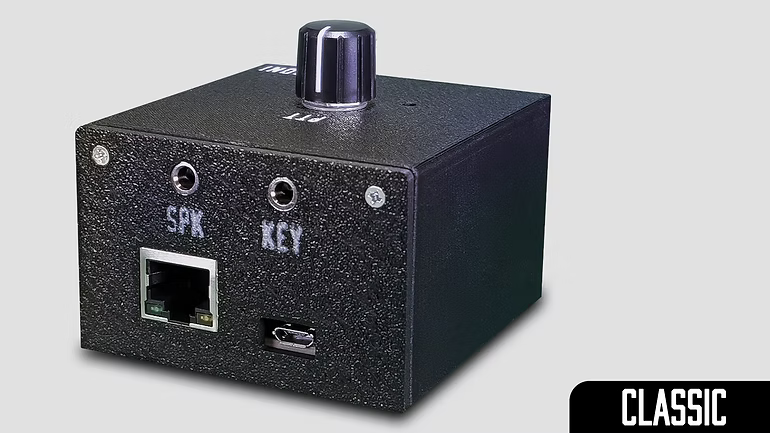

-- CLASSIC UNIT (CLIENT): Fitted with speed potentiometer and paddle/key jack. Generates the sidetone locally to eliminate the audio delay typical of internet connections.

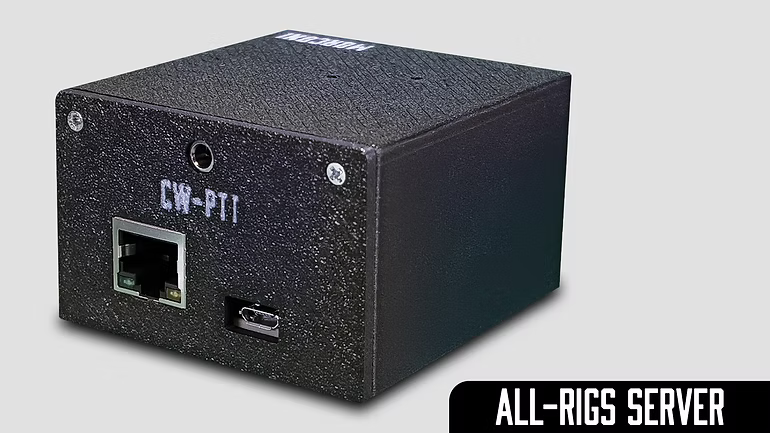

-- SERVER UNIT (RADIO SIDE): Receives UDP packets from the client and keys the radio via full galvanic isolation (optocouplers and solid-state relays).
-- BOOT MESSAGES: Both units send a CW message at start-up (format CFXXX/Y/Z) to confirm firmware version, network status and operating mode.
-- CONNECTIONS:
• Client: KEY jack (3.5mm TRS) for paddle/straight key and SPK jack for monitor audio.
• Server: CW/PTT jack (3.5mm TRS). Tip: CW Keying | Ring: PTT | Slave: GND.
-- CONFIGURATION: Both units use a MicroSD card for network parameters (DHCP/static) and IP addressing. Default port for All-Rigs: 57373.
SUPPORT AND DOWNLOAD CENTRE
For complete wiring diagrams, router configuration (NAT) and software downloads:
Supporto & Download CenterMorCoNI - An idea by Max, I8NHJ - CC BY-NC 4.0 licence
