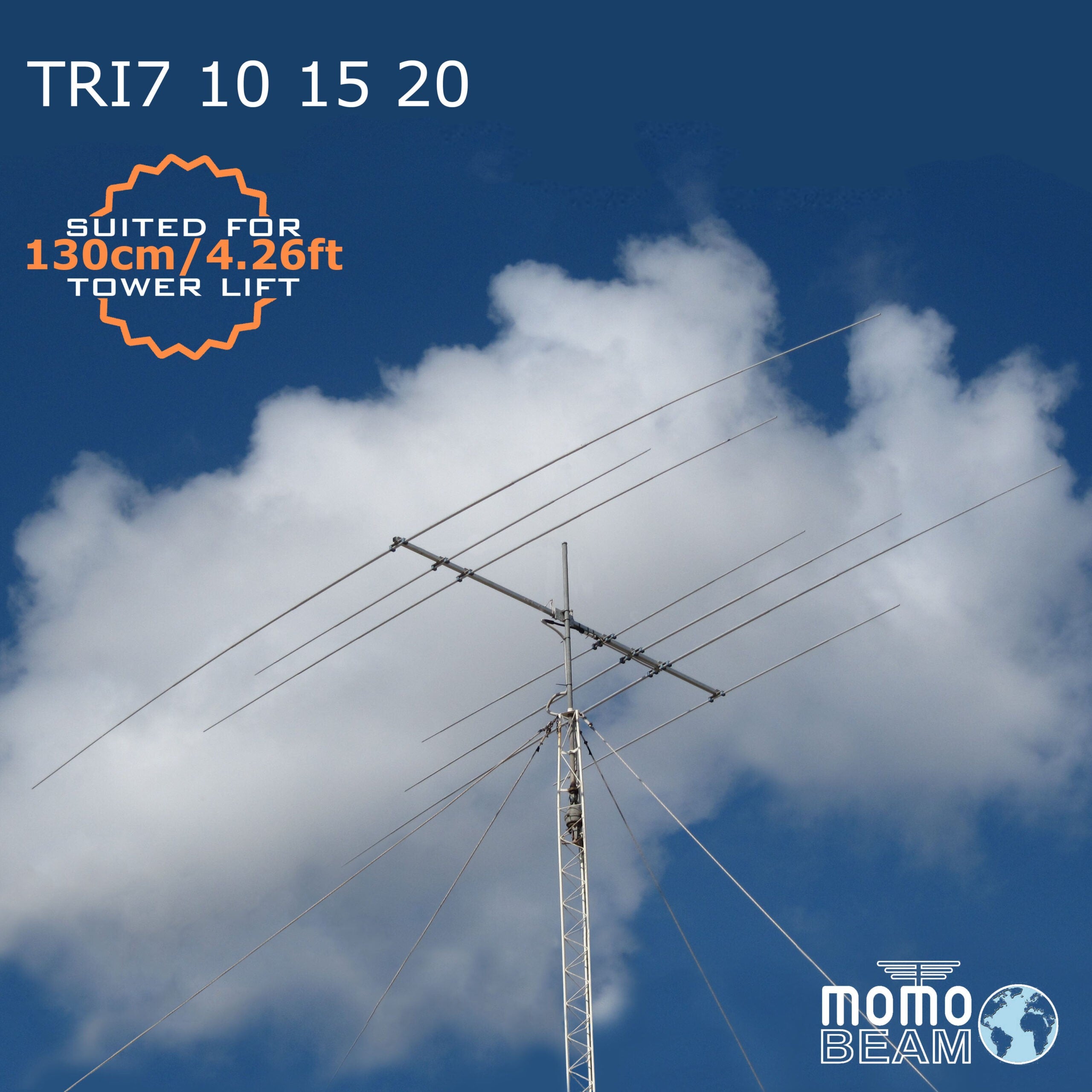

TRI7 101520 is a compact and affordable triband yagi antenna.
It covers the 10-15-20 meter bands with surprising performance and a single coaxial cable.
On 15 and 20 meters, it uses a reflector/radiator configuration with full-size elements whose performance is significantly superior to those of old-generation antennas. On 10 meters, it features 3 elements in a reflector, radiator, director configuration.
Spacing has been optimized with state-of-the-art simulation software to ensure maximum performance.
Simple to assemble, the TRI 7 does not require any tuning: during assembly, there will be no need to choose between CW and SSB.
It features a flat SWR below 1:1.5 on all operating bands and is perfectly suited for modern transceivers and linear amplifiers.
Also available with separate feeds. You can find the TRI7 101520 SF in the "Separate Feeds" section
Suitable for crank-up towers with 130cm side.
Requires a medium/light duty rotator.
RF Choke: 3kw included
FEATURES:
| TRI7 101520 | 10 mt | 15 mt | 20 mt |
|---|---|---|---|
| Gain dBi: (at 20 meters above ground) | 13,8 | 12,00 | 11,50 |
| Gain dBd free space: | 6,1 | 4,3 | 4,2 |
| F/B: | 18 | 15 | 15 |
| Active elements: | 3 | 2 | 2 |
| Bandwidth KHz SWR ≤ 1.5:1 | 800 | 450 | 350 |
| Boom length: | 420 cm | ||
| Turning radius: | 600 cm | ||
| Required feed lines: | 1 x 50 Ohm | ||
| Max tower side for trolley: | 130 cm | ||
Longest element: 1110 cm
Applicable power: 10 kW
Wind surface area: 0,68 m²
Wind load 130Km/h: 558 N
Wind survival*: 130 Kmh
Mast attachment: 40/60 mm (upper on request)
Balun: 3 kw included, 5/10 Kw to be purchased separately
Weight (packaging excluded): 27 Kg
MATERIALS USED
Tubes and plates: aluminum alloy, 6060T6
Hardware: stainless steel
Insulating shells: UV-resistant polypropylene
Manuals available: Italian – English
*Wind survival is the maximum wind speed to which the antenna can be subjected without permanent deformation (value calculated in the absence of ice)
