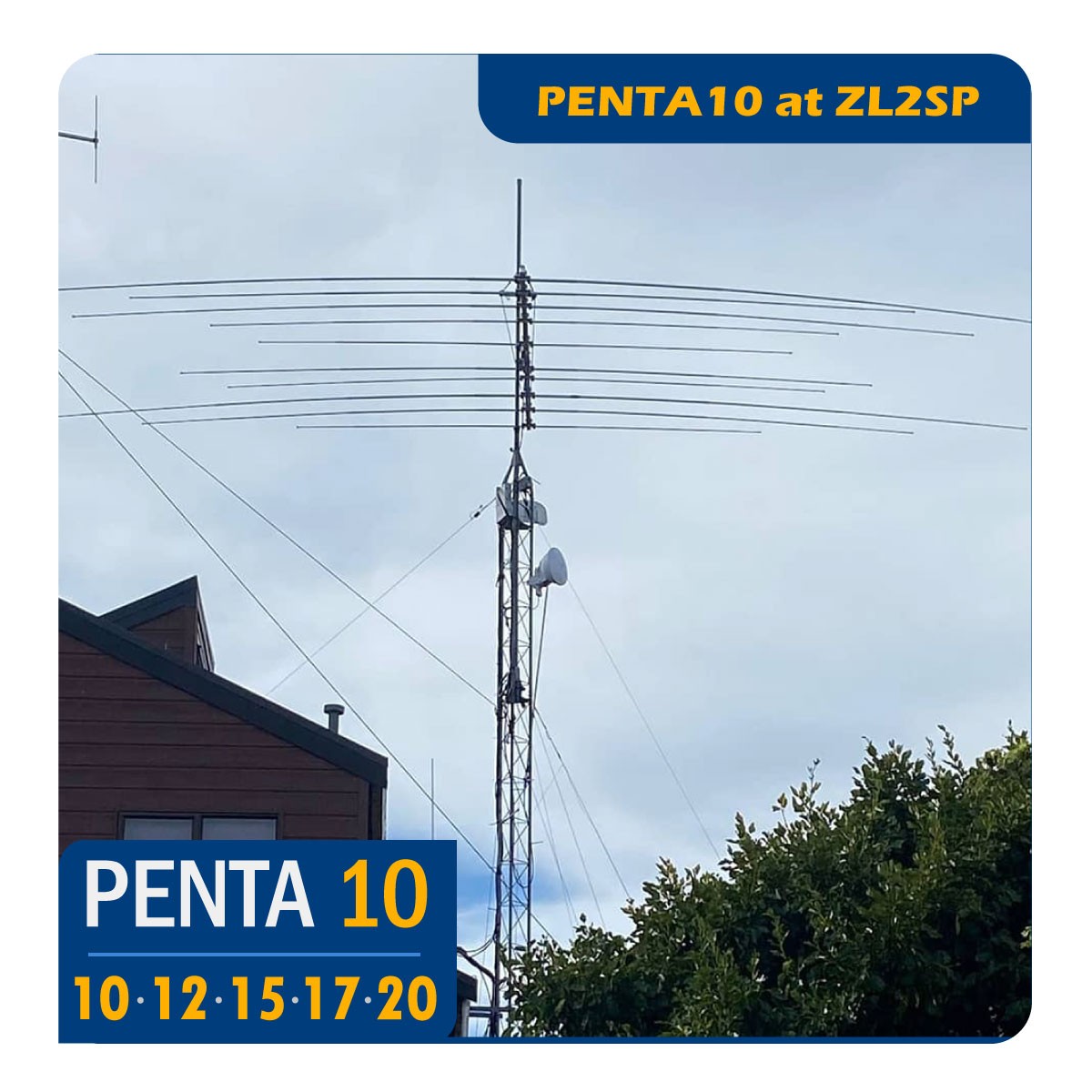

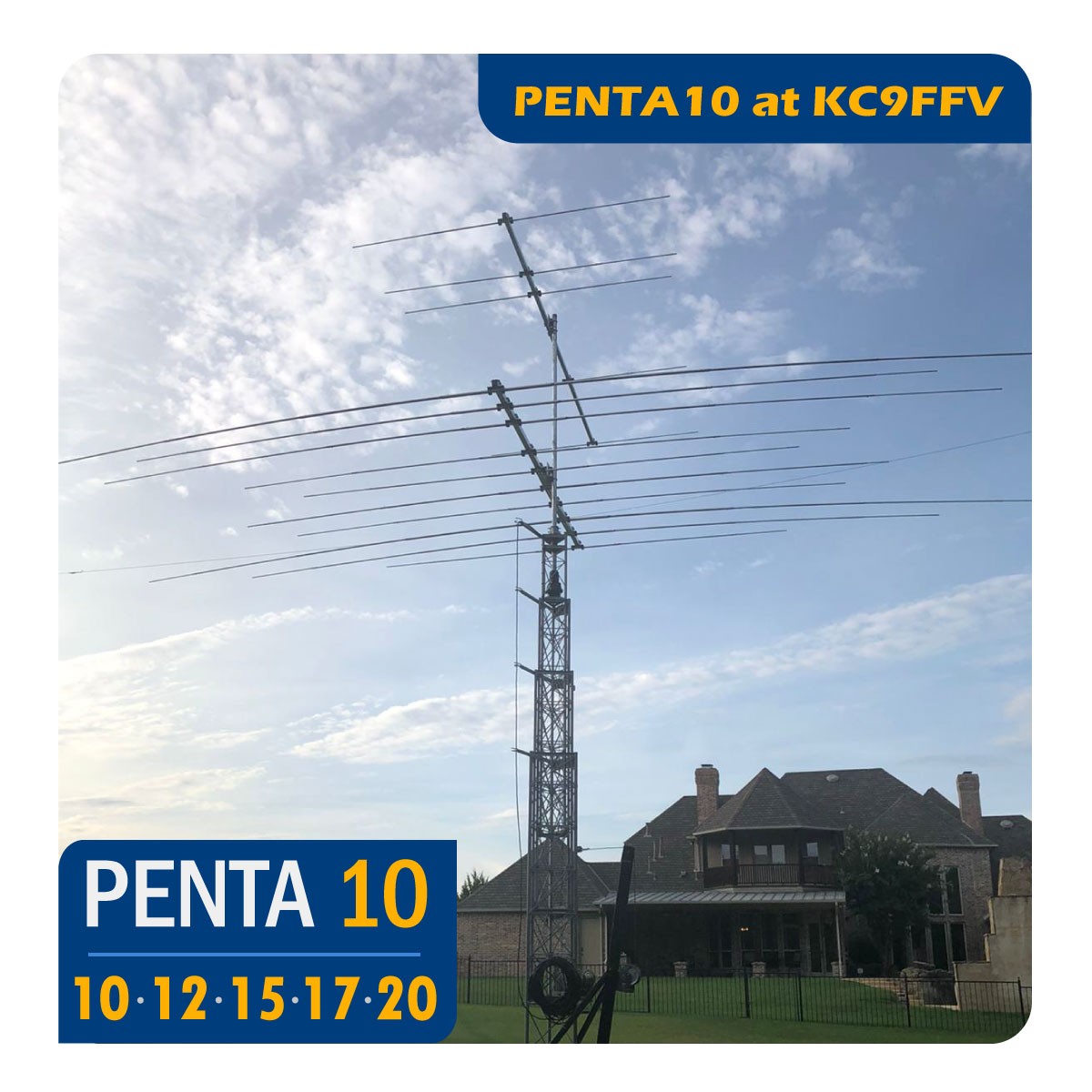

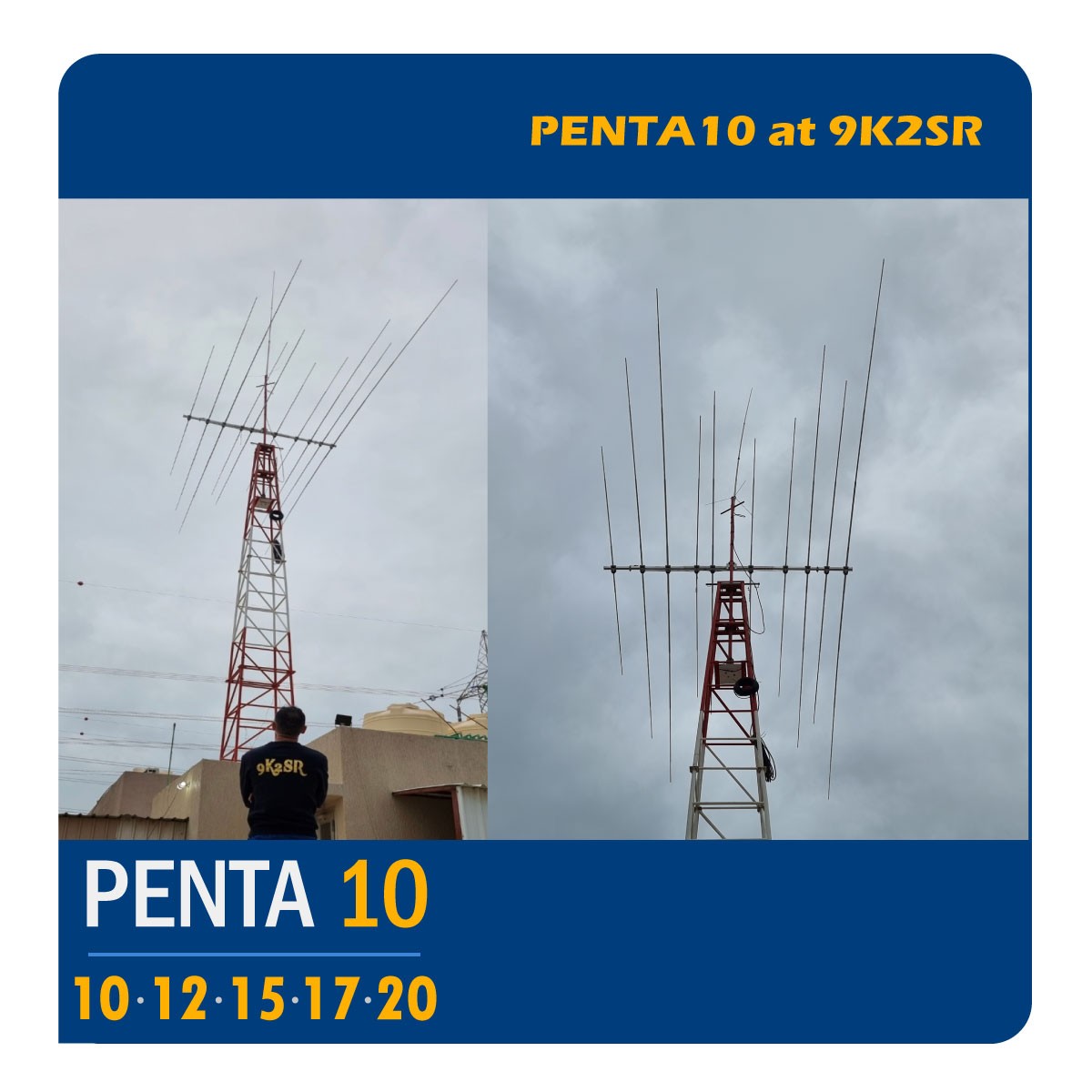

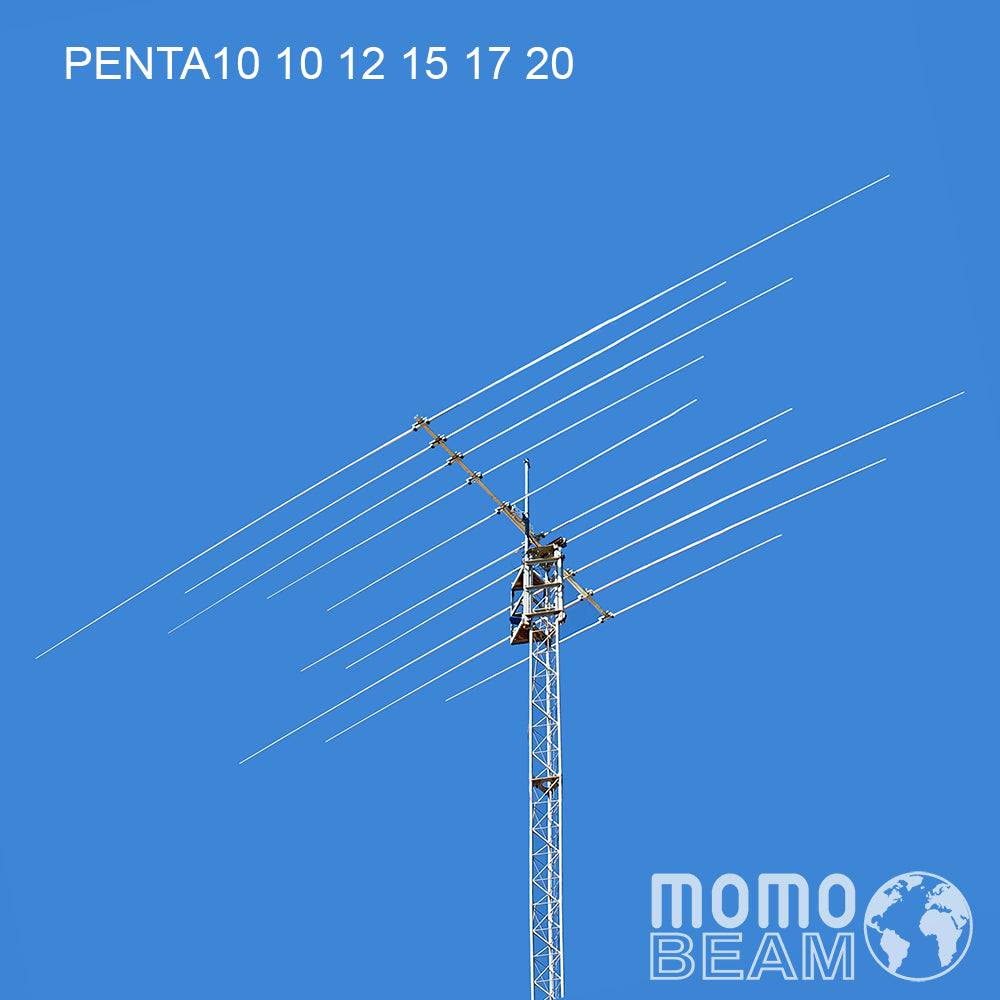

PENTA10 10/12/15/17/20 is the renowned multi-band yagi with a super compact design, covering the 10-12-15-17-20 meter bands using a single coaxial cable. All elements are full size, thus ensuring significantly superior performance compared to older generation antennas. The spacings have been carefully studied using state-of-the-art simulation software to guarantee optimal performance.
Extremely simple to assemble thanks to the labeling of its parts and hardware, PENTA10 requires no tuning; during assembly, there will be no need to choose between CW and SSB thanks to its flat SWR which never exceeds 1:1.5 on all operating bands.
PENTA10 is the ideal partner for anyone looking for an antenna that is simple to assemble, offers excellent performance, and has compact dimensions.
It requires a medium-category rotator and is suitable for crank-up towers with a 50cm side.
RF choke: 3kW included
Availability: Normally delivered within a few days
| PENTA10 10/12/15/17/20 | 10 mt | 12 mt | 15 mt | 17 mt | 20 mt |
|---|---|---|---|---|---|
| Gain dBi: (at 20 meters from the ground) | 12,3 | 12,5 | 11,50 | 11,60 | 12,00 |
| Gain dBd free space: | 4,9 | 4,7 | 4,0 | 4,1 | 4,5 |
| F/B: | 25 | 15 | 15 | 15 | 15 |
| Active elements: | 2 | 2 | 2 | 2 | 2 |

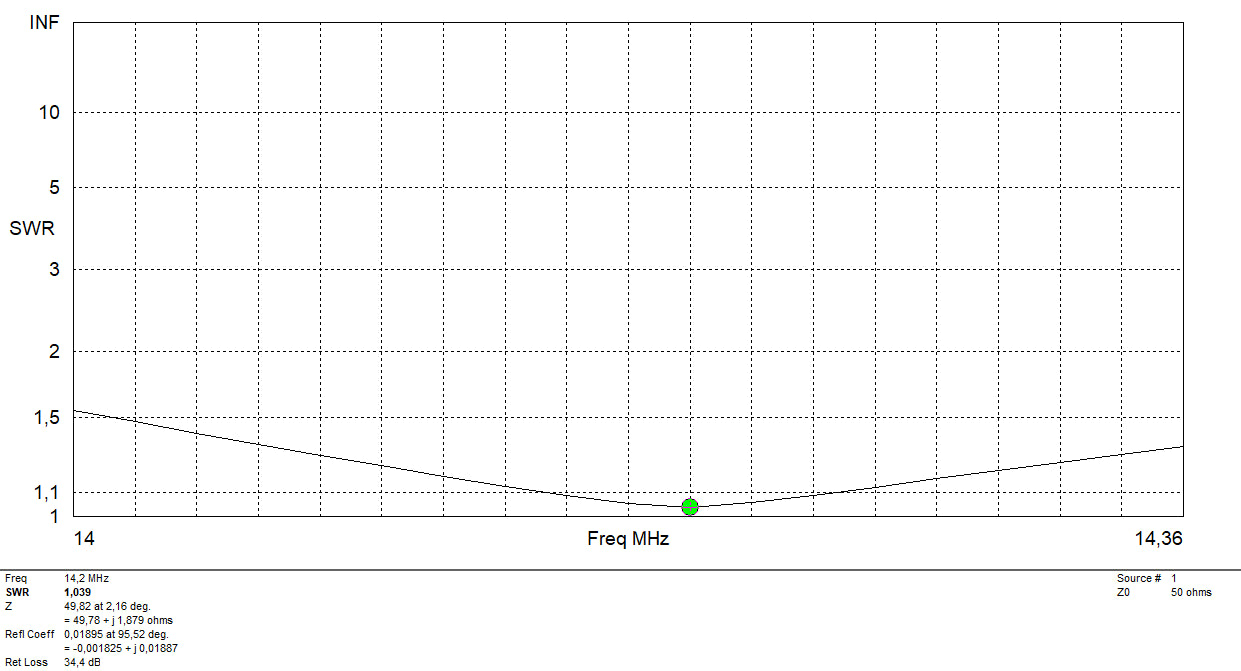

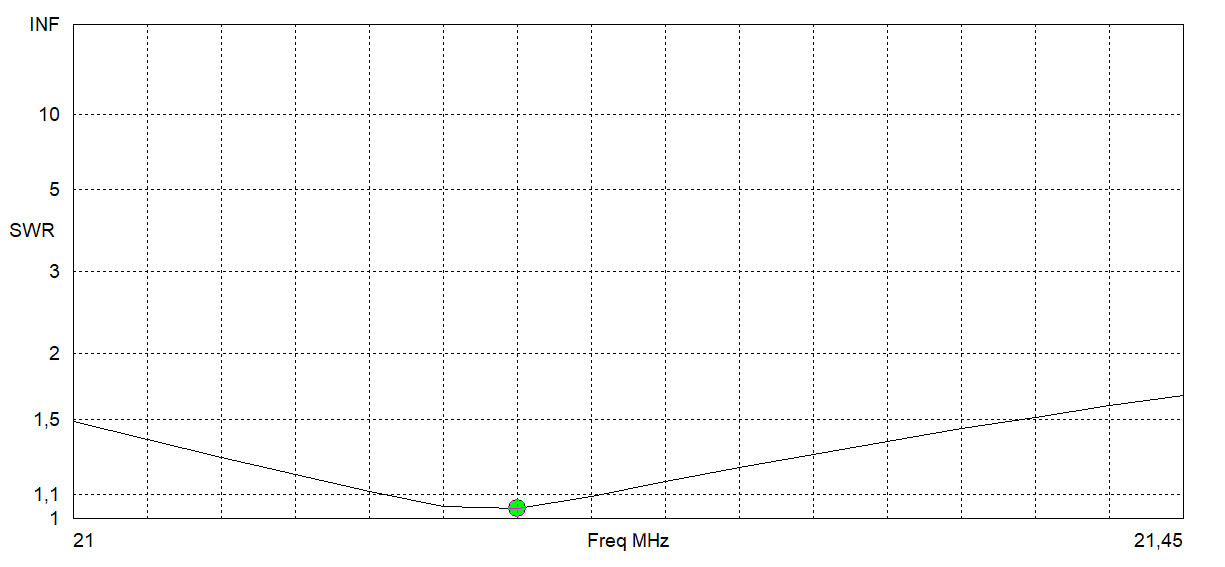

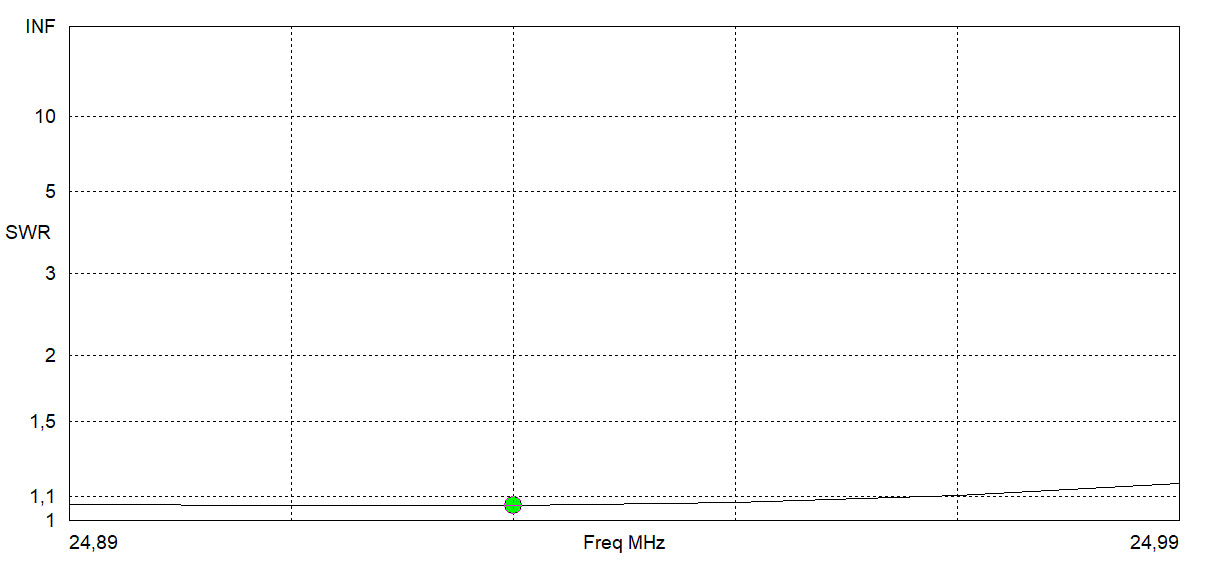

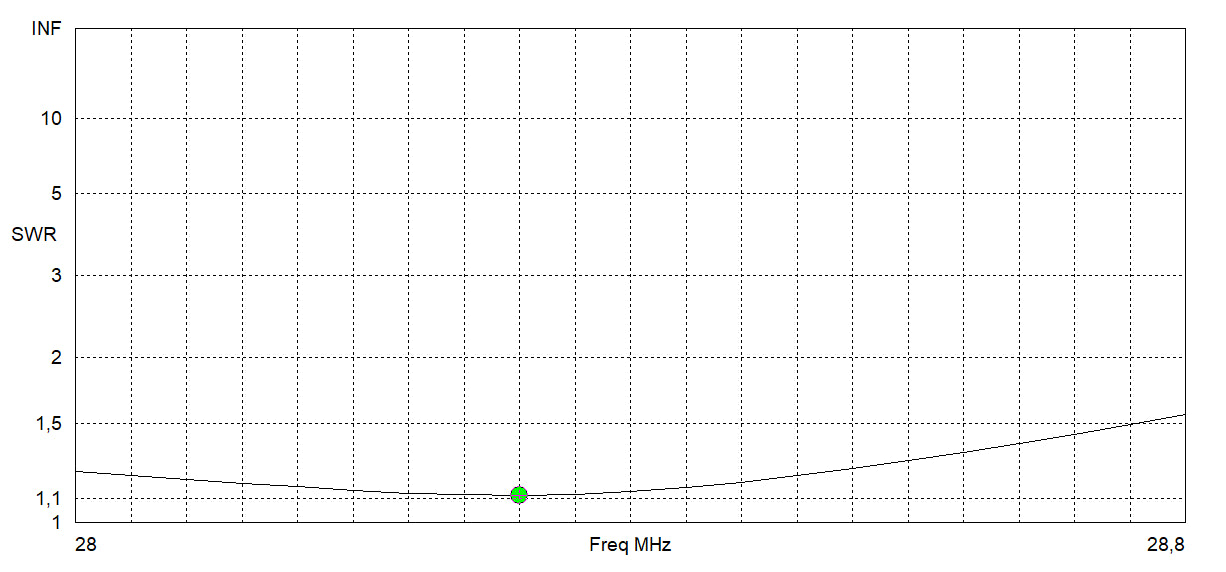

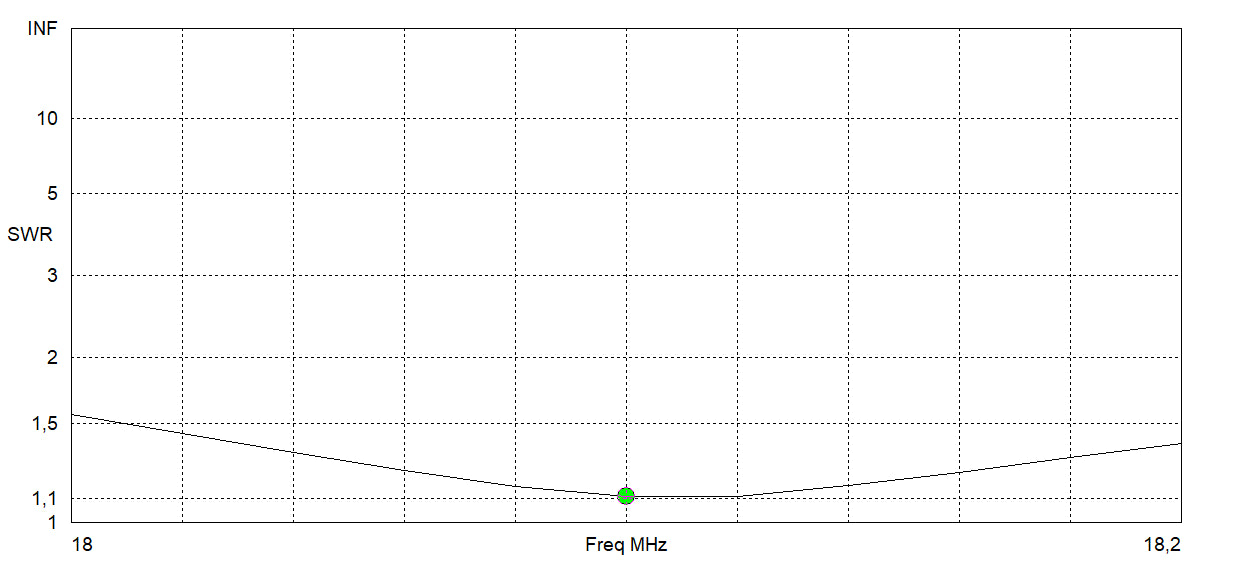

| Bandwidth KHz SWR = 1.5:1 | 700 | 100 | 450 | 100 | 350 |
| Boom length: | 390 cm | ||||
| Turning radius: | 590 cm | ||||
| Required feedlines: | 1 x 50 Ohm | ||||
| Max tower side for trolley: | 50 cm | ||||
Longest element: 1100 cm
Applicable power: 10 kW
Wind surface area: 0.795 m²
Wind load 130Km/h: 635 N
Wind survival*: 130 Kmh
Mast attachment: 40/60 mm (larger on request)
Balun: 3 kw
Weight (excluding packaging): 27 Kg
Materials used
Tubes and plates: aluminum alloy, 6060T6
Hardware: stainless steel
Insulator shells: UV resistant polypropylene
Manuals available: Italian – English
*Wind survival is the maximum wind speed the antenna can withstand without permanent deformation (value calculated without ice)
