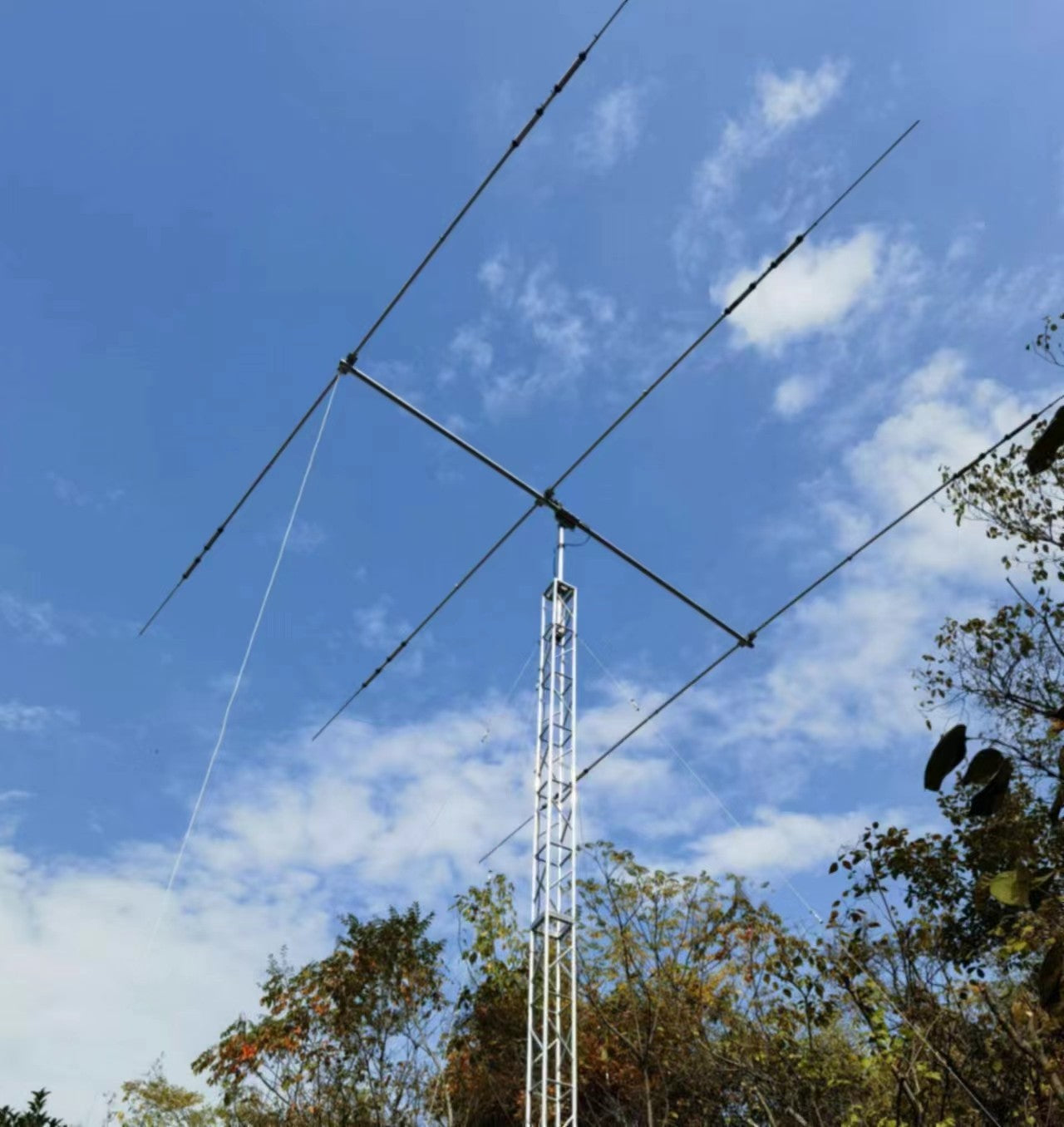

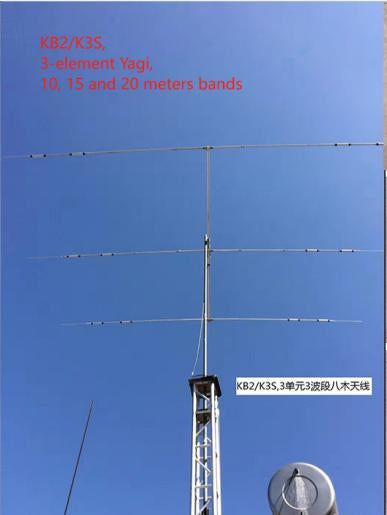

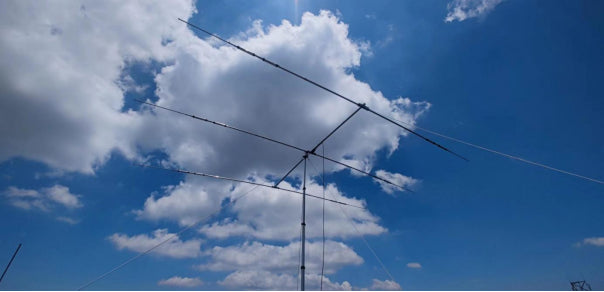

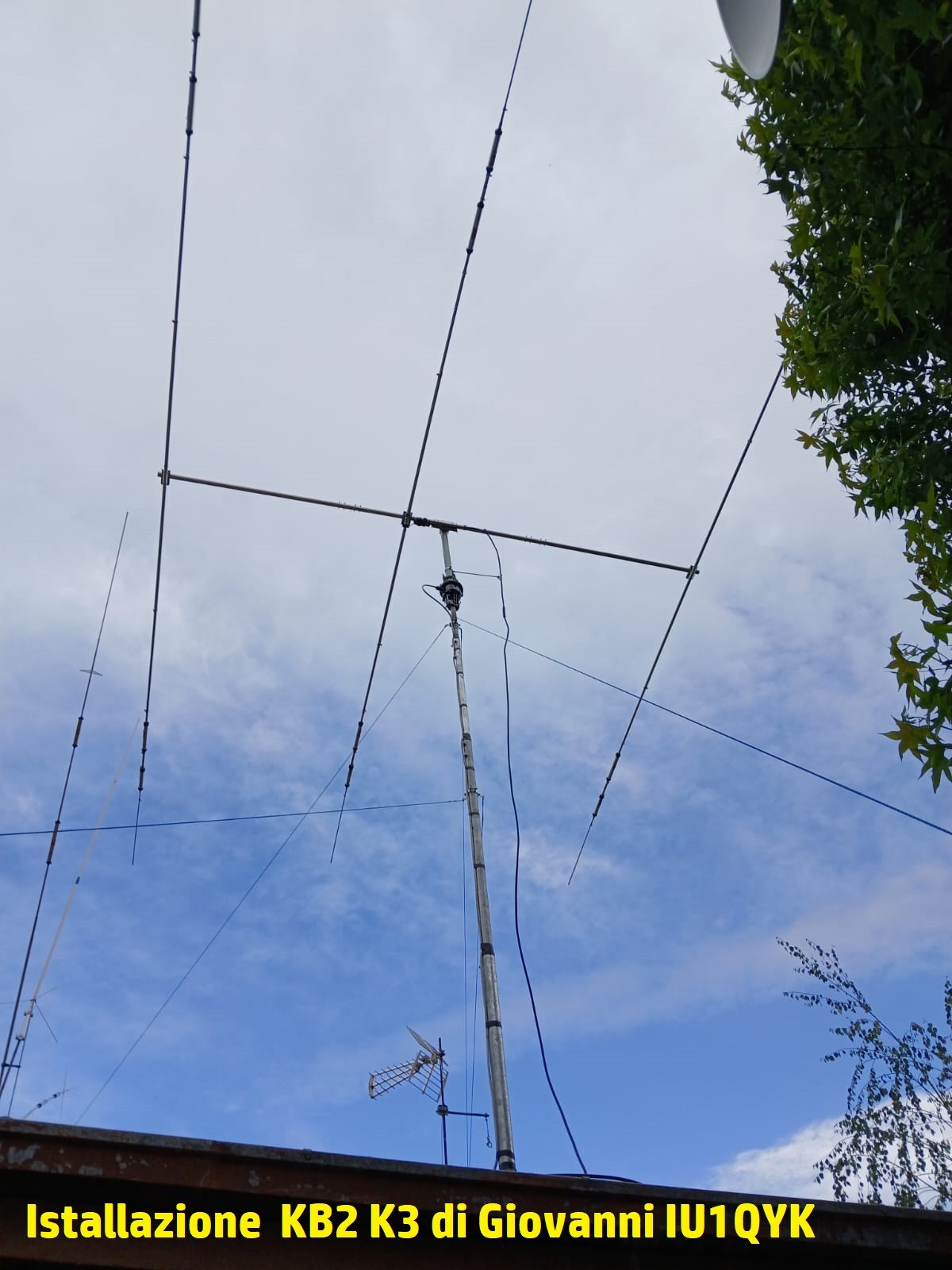

KB2 K3S 3-element tri-band Yagi
3-element Yagi for 10, 15 and 20 m, 8 dBd, 25 dB F/B, 4.3 m boom, 1:1 balun included
The KB2 K3S is a 3-element tri-band beam for 10, 15 and 20 metres, with 8 dBd of gain and a 25 dB front-to-back ratio. The package also includes the 1.5 kW 1:1 balun.
Key features
8 dBd
On 14, 21 and 28 MHz.
25 dB F/B
Good rear rejection.
Balun included
1:1, 1.5 kW.
Specifications
| Bands | 14 / 21 / 28 MHz |
| Elements | 3 |
| Gain | 8 dBd |
| F/B ratio | 25 dB |
| SWR | 1.5:1 |
| Boom | 4.3 m |
| Longest element | 8.4 m |
| Turning radius | 4.8 m |
| Weight | 17 kg |
| Balun | 1:1, 1.5 kW (included) |
In the box
- 1:1 1.5 kW balun
