KB2 K3S-2 2 elements 20/15/10 m
2-element tri-band beam 14/21/28 MHz, 3.6 dBd, 500 W CW / 1 kW SSB, 2.4 m boom, 1:1 balun included

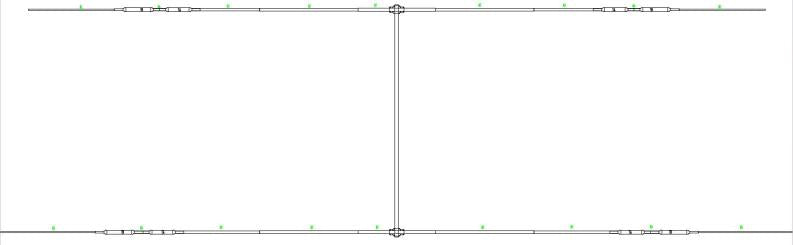

The KB2 K3S-2 is a 2-element beam for the 20, 15 and 10 metre bands, built with quality materials. The package includes the 1.5 kW 1:1 balun.
Product description
With a boom of only 2.4 m and a turning radius of 4.2 m it also suits limited spaces; it weighs 9 kg. A 3-element K3S version is also available.
Key features
Tri-band
20, 15 and 10 m.
Compact
2.4 m boom, 9 kg.
Balun included
1.5 kW 1:1.
Specifications
| Bands | 14 / 21 / 28 MHz |
| Elements | 2 |
| Gain | 3.6 dBd |
| Front-to-back ratio | 20 dB |
| SWR | 1.5:1 |
| Power | 500 W CW · 1 kW SSB |
| Boom | 2.4 m |
| Longest element | 8.4 m |
| Turning radius | 4.2 m |
| Weight | 9 kg |
In the box
- Antenna
- 1.5 kW 1:1 balun
