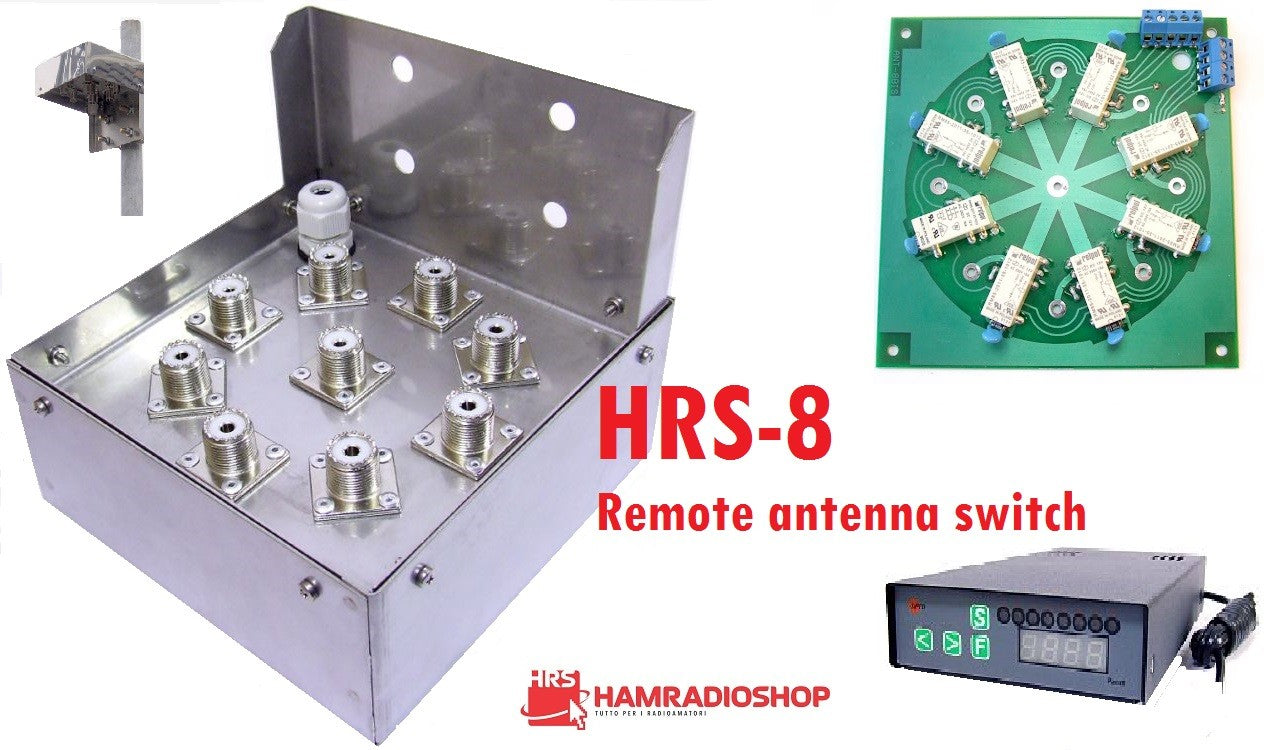

AUTOMATIC REMOTE ANTENNA SWITCH

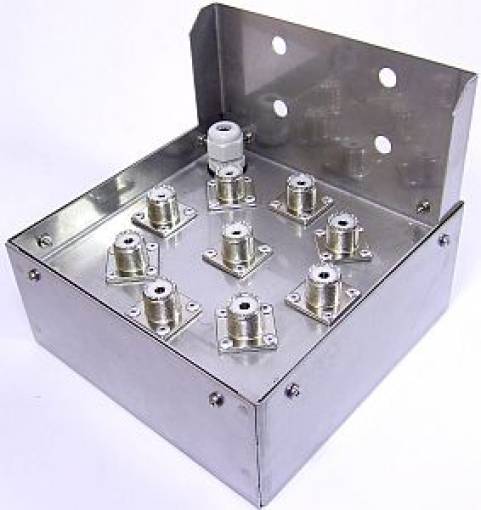

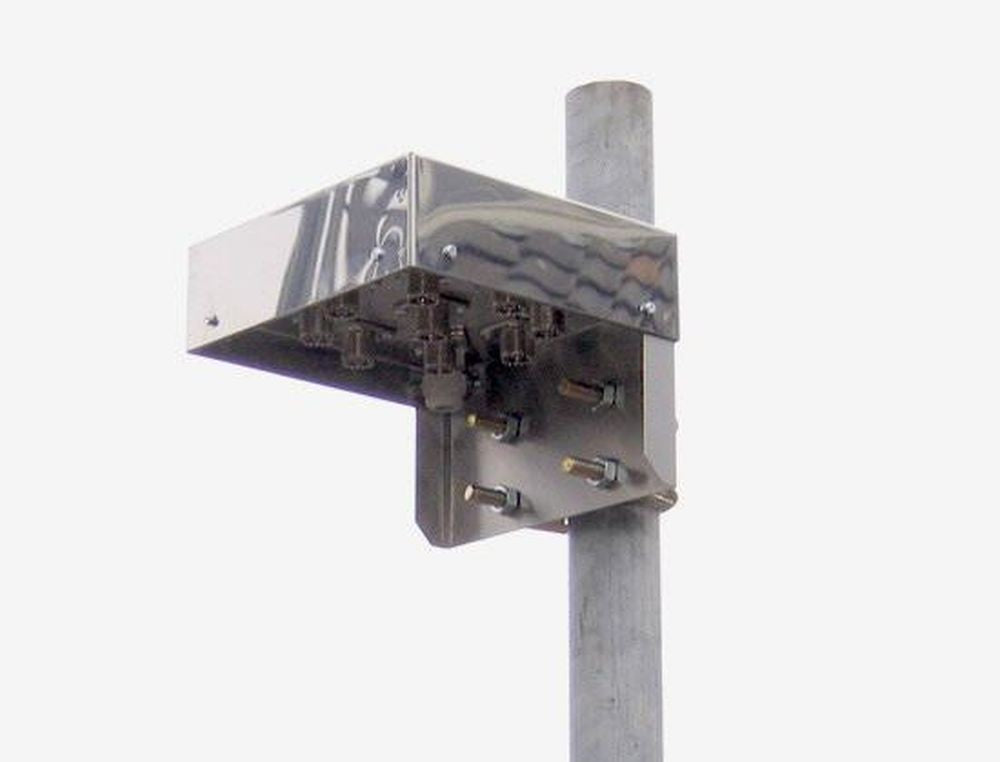

Antenna switch for outdoor installation. The switch can handle 2000W up to 30MHz. Unused antenna inputs are grounded. The outdoor unit is weatherproof thanks to a stainless steel housing. A 9-pin cable is required for the connection between the controller and the outdoor unit. The controller needs to be powered at 12-14 volts. Manual switching is done simply by a short press on the button on the front of the controller.

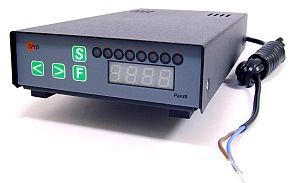

CONTROL BOX
This remote control can be operated fully automatically.
For this purpose, the controller has two ports on the rear panel. One is a 25-pin printer port for direct connection and control via PC (automatically by the supplied and included "SPIDLog" software) and the other is a USB interface. This interface is not only for a PC; the switch can also be controlled directly by a transceiver. In this case, the switch can automatically select the antenna port depending on the preset band.
In addition to automatic and manual switching, the connection selection can also be made with a mouse (included). For this, there is a separate port on the back of the controller.
SPECIFICATIONS:
- Frequency range: 0.1 to 30 MHz;
- Connectors: PL;
- Power supply: 12 (12-24) Volt, negative on ground 500 mA;
- Dimensions: 150x150x50mm;
- Max. Power: 2000 W;
The package contains:
- 8:1 Switch
- Controller
- Centronics cable
- CD-ROM (Manual and Software)
8 to 1 antenna switch for outdoor installation. The switch can handle 2000W up to 30MHz. Unused antenna inputs are grounded.
The weatherproof outdoor unit is in a stainless steel housing. For the connection between the controller and the outdoor unit a 9-pin cable is required.
The controller can be connected directly to the station power supply. The manual switching is done simply by a short press on the button in front of the controller.
This remote switch can be operated fully automatically.
For this purpose, the controller has two ports on the back panel. One is a 25-pin printer port for direct connection and control via the PC (automatically by the provided and included software "SPIDLog") and the other is a USB interface. This interface is not only for a PC, the switch can also be controlled directly by a transceiver. In this case, the switch can automatically select depending on the preset band the antenna port.
In addition to automatic and manual switching, the selection of connection can also be done by an mouse (included). For this, a separate port is provided at the rear of the controller.
| Specifications | |
|---|---|
| Frequency Range | 0.1 bis 30 MHz |
| Connectors | PL |
| Power supply | 12 (12-24) Volt, minus on the ground 500 mA |
| Dimensions | 150x150x50mm |
| Max. Power | 2000 W |
Included in delivery:
- Switch 8:1;
- Controller;
- Centronics cabel;
- CD-ROM (Manual and Software)
