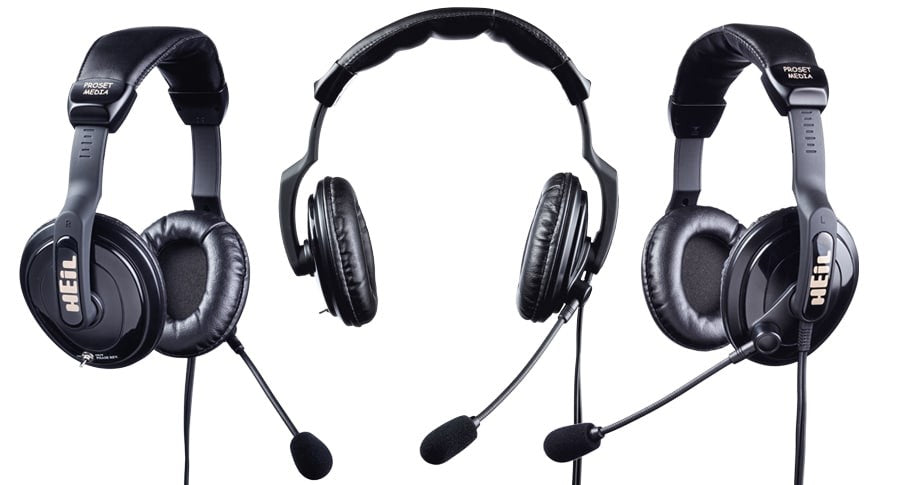

PRO SET MEDIA PRO
The Pro Set Media Pro was designed for use with computers for software defined radio (SDR) in amateur radio applications.
Based on Heil Sound's popular Pro Set communications headset, the Pro Set Media Pro uses a high-output electret microphone element specifically designed for the requirements of computer sound card inputs. The result is beautiful, broadcast-quality audio with plug-and-play functionality.
The Pro Set Media Pro earphones are acoustically tuned and incorporate Heil Sound's exclusive phase reversal switch that creates a spatial widening effect that often makes incoming audio easier to understand. The Pro Set series headphone speakers are 200-ohm devices, with a -3 dB point at 8000 Hz. This combination greatly reduces the hiss found in receiver audio stages.

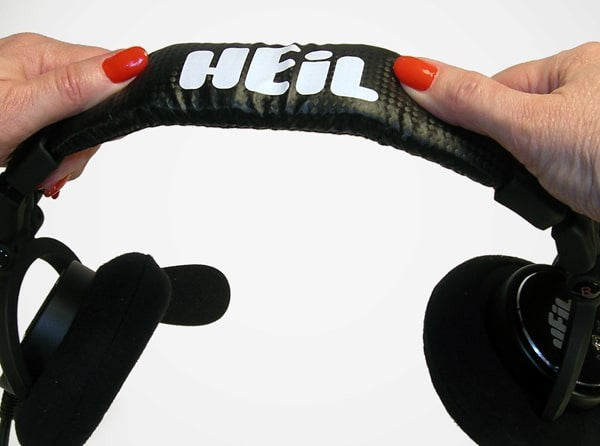

The Heil Sound Pro Set Media Pro is terminated with two industry standard 3.5mm male jack connectors: the red connector plugs into the “Microphone” input jack on the sound card, while the black connector plugs into the sound card's audio output (“headphone” or “speaker” jack). The Media Pro comes with removable cotton ear covers that can be washed. The vinyl ear pads can also be removed, in case they need to be replaced. Each Pro Set is equipped with a microphone windscreen. The windscreen does not affect the microphone's frequency response and is very effective in minimizing breath blasts while speaking.
Note: Pro Set Media Pro does not work with amateur radio transceivers.
Specifications
Generating Element: Electret element
Frequency Response: 35 Hz – 12 kHz
Polar Pattern: Cardioid Impedance: 200 Ohm
Output Level: -48dB at 1 kHz Weight: 10.6 ounces
