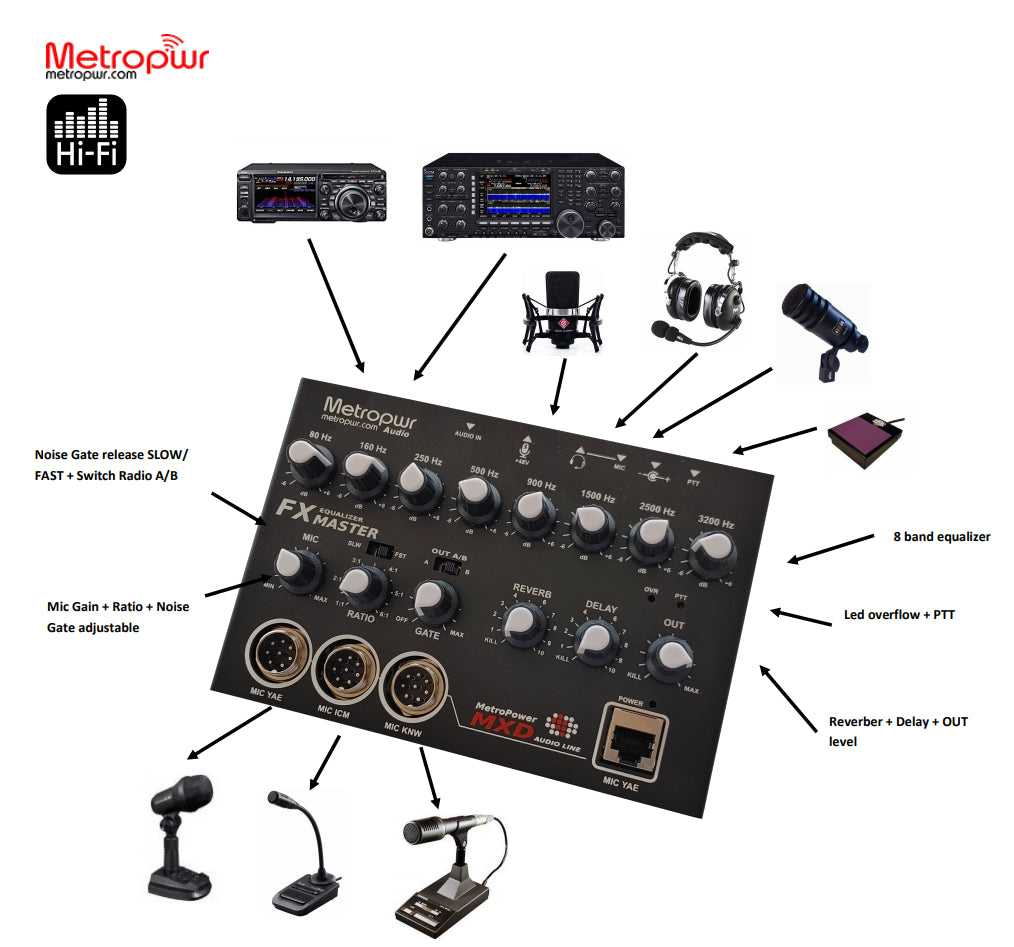

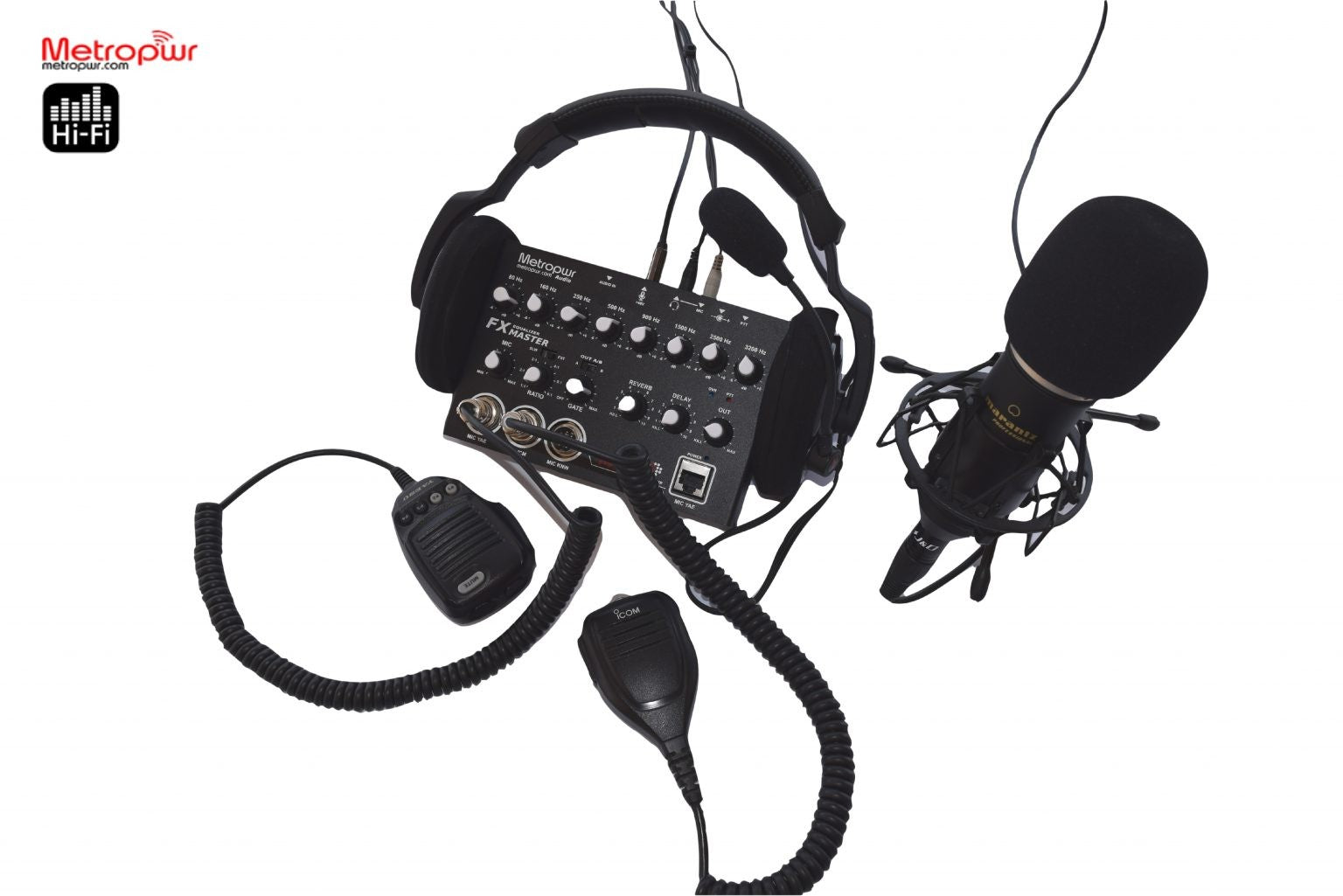

FXMASTER is an 8-band equalizer with adjustable noise gate and reverb. This device has the ability to interface any type of studio microphone from different brands and switch it between 2 radios. The high audio quality allows even new/old radios to be transformed into hifi ssb. The audio can be perfectly amplified and equalized to suit any type of microphone. It handles dynamic condenser studio microphones or ICOM, YAESU, KENWOOD, and other commercial microphones. All microphones can be connected directly without needing new connections or adapters. FXMASTER has an internal switch to use 2 radios simultaneously.
An LED indicates an AF signal overflow. It has two XLR studio microphone jack inputs. Via a standard jack/XLR cable, dynamic and condenser studio microphones with phantom power can be connected (requires third-party phantom power).

CONNECTIONS: ability to connect any type of microphone from any brand without having to redo the connections. Dual input for XLR studio microphones and the ability to connect a Heil Sound headset.
Through the adjustable NOISE GATE, background noise can be eliminated in noisy environments. It also includes an adjustable REVERB to improve the modulations of some microphones. FXMASTER allows you to manage 2 RADIOS and switch microphones via a slide switch. Two LEDs indicate PTT and modulation overload.
-
TECHNICAL SPECIFICATIONS
- high quality 8-band equalizer
- adjustable noise gate
- adjustable fast/slow attack speed
- separately adjustable echo/reverb/delay
- input/output impedance 600 ohms
- ability to connect 2 radios simultaneously (Radio A/B switch)

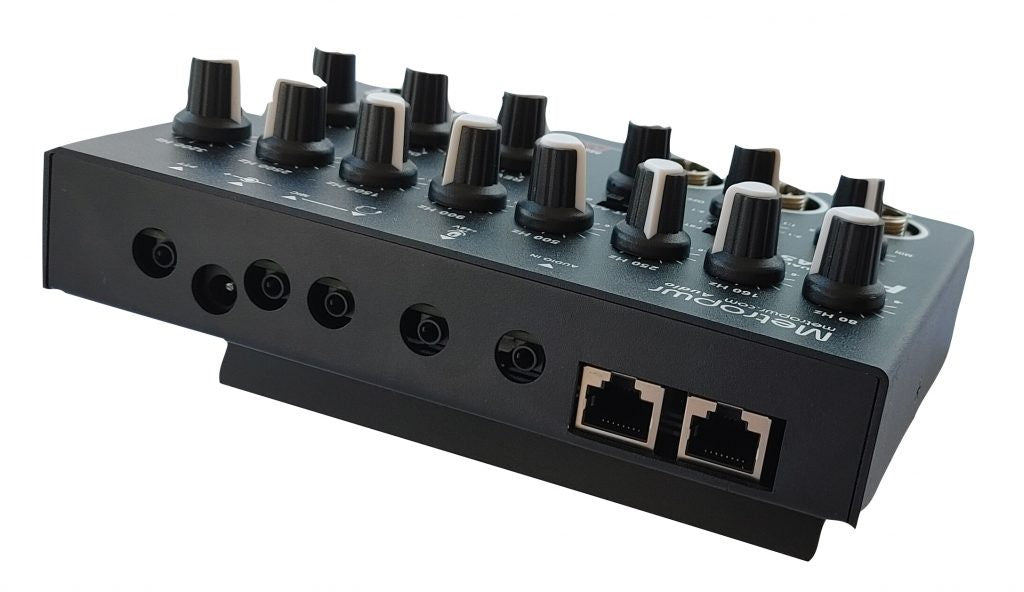

- dual RJ45 output
- three 8pin + RJ45 inputs for commercial microphones
- ability to connect 6 types of microphones
- Heil Sound headset microphone input or other
- input for dynamic microphones (XLR connection)
- for condenser microphone (requires third-party phantom power)
- remote PTT input
- radio speaker pass-through input to power headphones
- separate input and output microphone gain adjustment
- overload/PTT LED
- dimensions 170x113x50mm (with knobs)
- adjustable rear bracket from 30 to 90 degrees
- external power supply 9/13.8V
