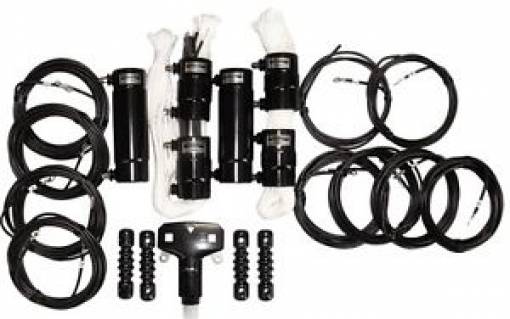

W-8010
WIRE DIPOLE 10 15 20 40 80 MT 1.2 KW
DIAMOND has created a series of professionally built dipole antennas for amateur radio operators, using high-quality materials, easy to assemble, and available in various models to meet every need.
TECHNICAL SPECIFICATIONS:
- Bands: 10-15-20-40-80 MT;

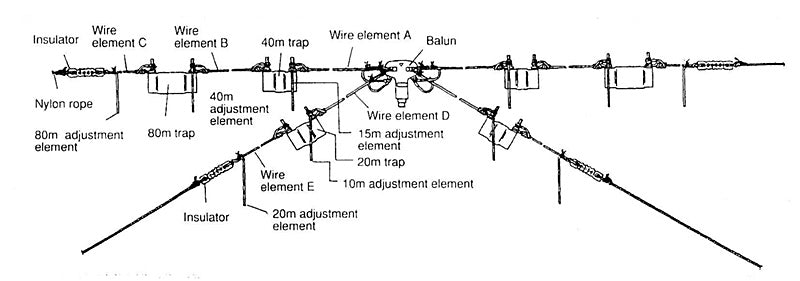

- Length: Long arms 19.2 MT (9.6 MT per side) - Short arms 6.4 MT (3.2 MT per side);
- SWR: 1:1.2 on all bands "adjustable";
- Connector: SO-239;
- Max. applicable power: 1200 Watts;
- Cable: special copper with black sheath;
- Weight: Approx. 2.5 kg
