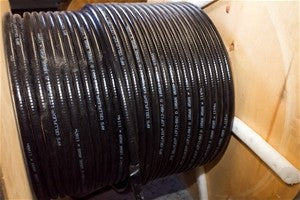

CELL-FLEX Professional coaxial cable 1/2" diameter
Price per meter
- The high attenuation performance allows the coaxial cable to be used in various RF systems, such as 3G, 4G mobile communication.
- Wide range of applications, such as indoor distribution, broadcast, various base stations, wireless cellular, and more.
- Low VSWR, perfect shielding effectiveness, and extraordinary intermodulation performance lead to less energy loss and external interference.

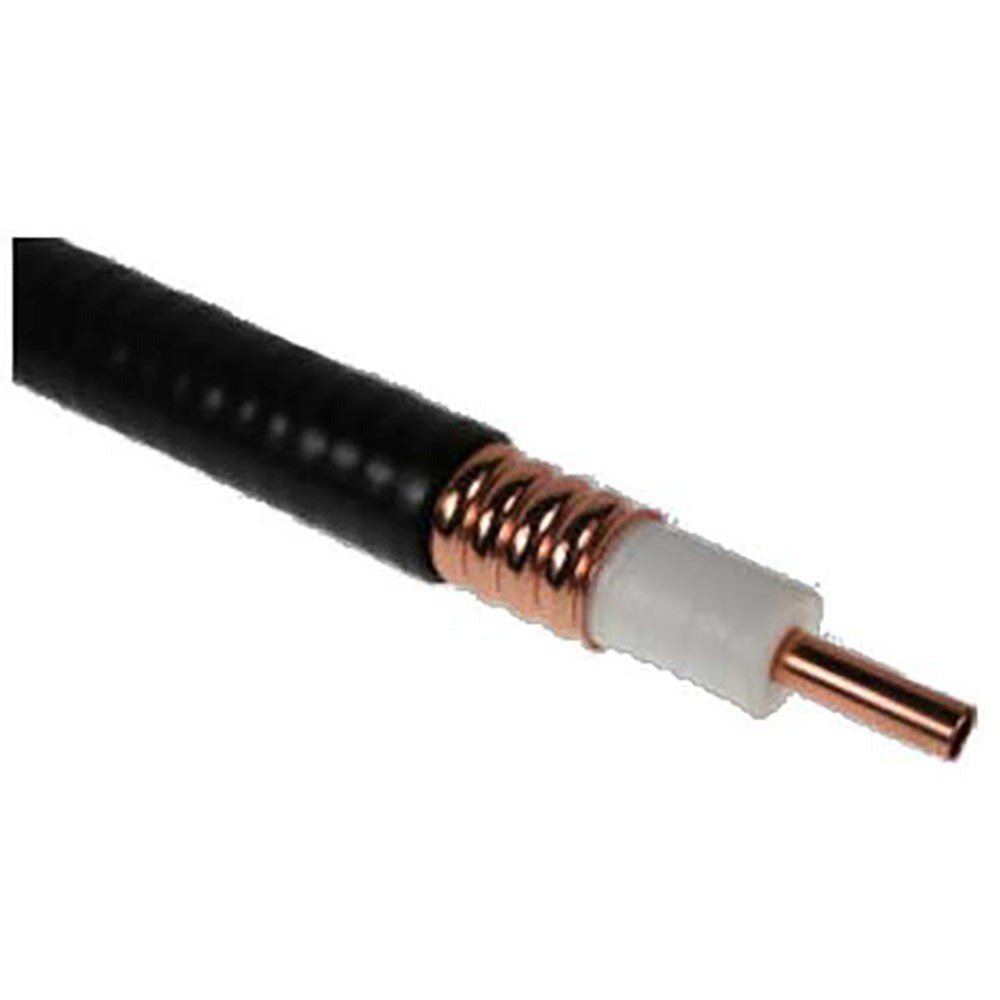

CONSTRUCTION
Inner conductor copper clad aluminum F4.80 mmInsulation Physically foamed PE F12.20 mmOuter conductor corrugated copper ring F13.80 mmFire retardant low smoke zero halogen cover F15.70mm
MECHANICAL PROPERTIES
Min. single bending radius mm 70Min.
repeated bending radius mm 125
Max tensile strength N ≥1130
Maximum recommended clamp spacing m 1
ELECTRICAL PROPERTIES
Impedance O 50±2Nominal capacitance pF/m 76Nominal inductance µH/m 0.19Propagation velocity % 86DC breakdown voltage kV 4.0Insulation resistance MO•km >10000Peak power kW 40Cutoff frequency GHz 8.8Shielding attenuation dB >120
---------------------------------------------------------------------------------------------------------------------------------------------------
PRODUCT DESCRIPTION
- The high-performance of attenuation allows coaxial cable to be used in different RF systems, such as 3G, 4G mobile communication.
- Wide range of applications, such as indoor distribution, broadcast, various base stations, wireless cellular, and others.
- Lower VSWR, perfect shielding effectiveness, and extraordinary inter-modulation performance lead to fewer energy loss and outer interference.
CONSTRUCTION
Inner conductor Copper Clad Aluminum F4.80mm
Insulation Physically foamed PE F12.20mm
Outer conductor Ring corrugated copper F13.80mm
Jacket Fire retardant low smoke zero halogen F15.70mm
MECHANICAL PROPERTIES
Min. single bending radius mm 70
Min. repeated bending radius mm 125
Maximum tensile strength N =1130
Recommended maximum clamp spacing m 1
ELECTRICAL PROPERTIES
Impedance O 50±2
Nominal capacitance pF/m 76
Nominal inductance µH/m 0.19
Propagation velocity % 86
DC breakdown voltage kV 4.0
Insulation resistance MO•km >10000
Peak power rating kW 40
Cut-off frequency GHz 8.8
Screening attenuation dB >120
CONSTRUCTION
Inner conductor Copper Clad Aluminum F4.80mmInsulation Physically foamed PE F12.20mmOuter conductor Ring corrugated copper F13.80mmJacket Fire retardant low smoke zero halogen F15.70mm
MECHANICAL PROPERTIES
Min. single bending radius mm 70Min. repeated bending radius mm 125Maximum tensile strength N =1130Recommended maximum clamp spacing m 1
ELECTRICAL PROPERTIES
Impedance O 50±2Nominal capacitance pF/m 76Nominal inductance µH/m 0.19Propagation velocity % 86DC breakdown voltage kV 4.0Insulation resistance MO•km >10000Peak power rating kW 40Cut-off frequency GHz 8.8Screening attenuation dB >120
