BS-200XW Voltcraft

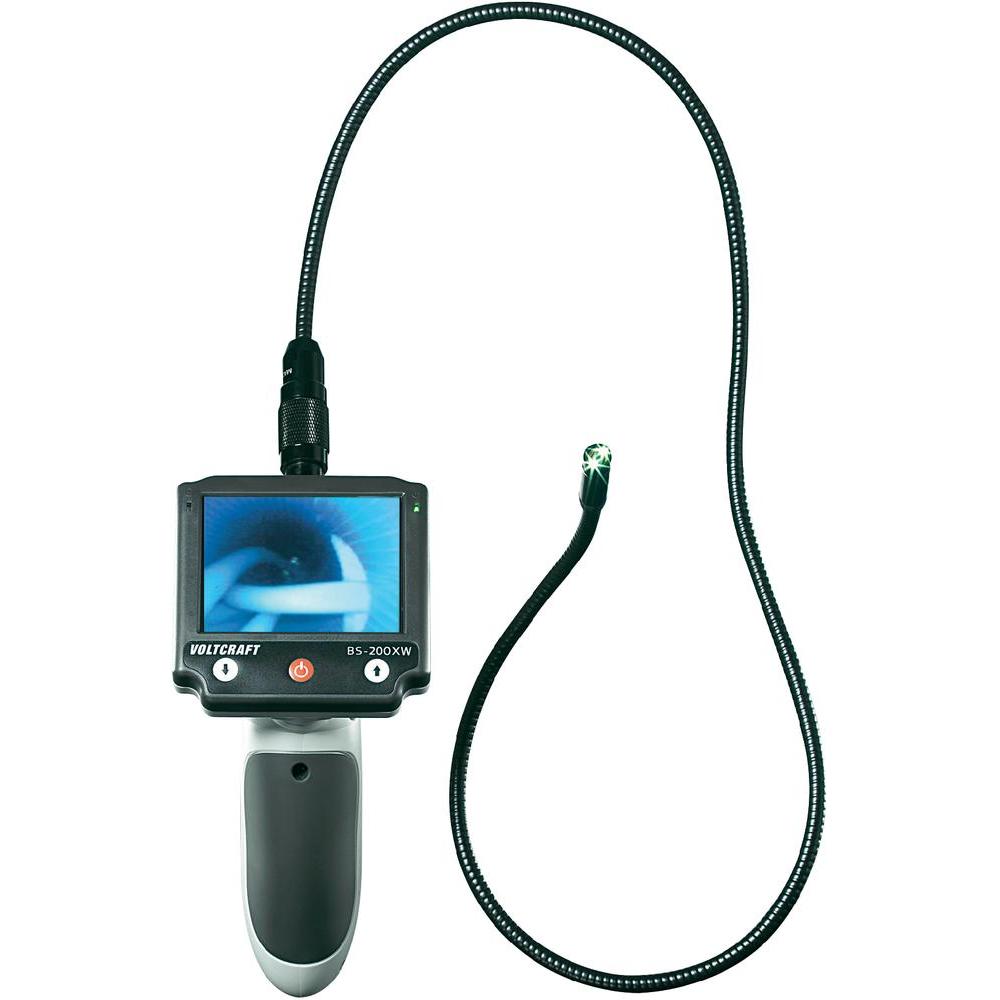

Handheld endoscope with removable display and transport case
Strengths and Details
- Semi-flexible gooseneck
- Replaceable endoscope cameras
- Optional camera range extension
- Ergonomic pistol grip
- With removable 8.9 cm (3.5") monitor with cable
- TV output Ø probe 9.8 mm
- Probe length 88 cm
- With support hook, mirror and magnet
Description
Endoscope with 88 cm waterproof gooseneck for inspecting hollow spaces. The dimmable 2-LED camera light located on the 9.8 mm camera head provides optimal illumination. Thanks to the removable monitor, you will be able to use the endoscope with maximum flexibility. For example, it can allow several people to observe the internal workings of machines by connecting the monitor to the handle via USB cable, thus ensuring an optimal view on the display from the device's position.
Features
- 88 cm flexible gooseneck
- Removable LCD color monitor

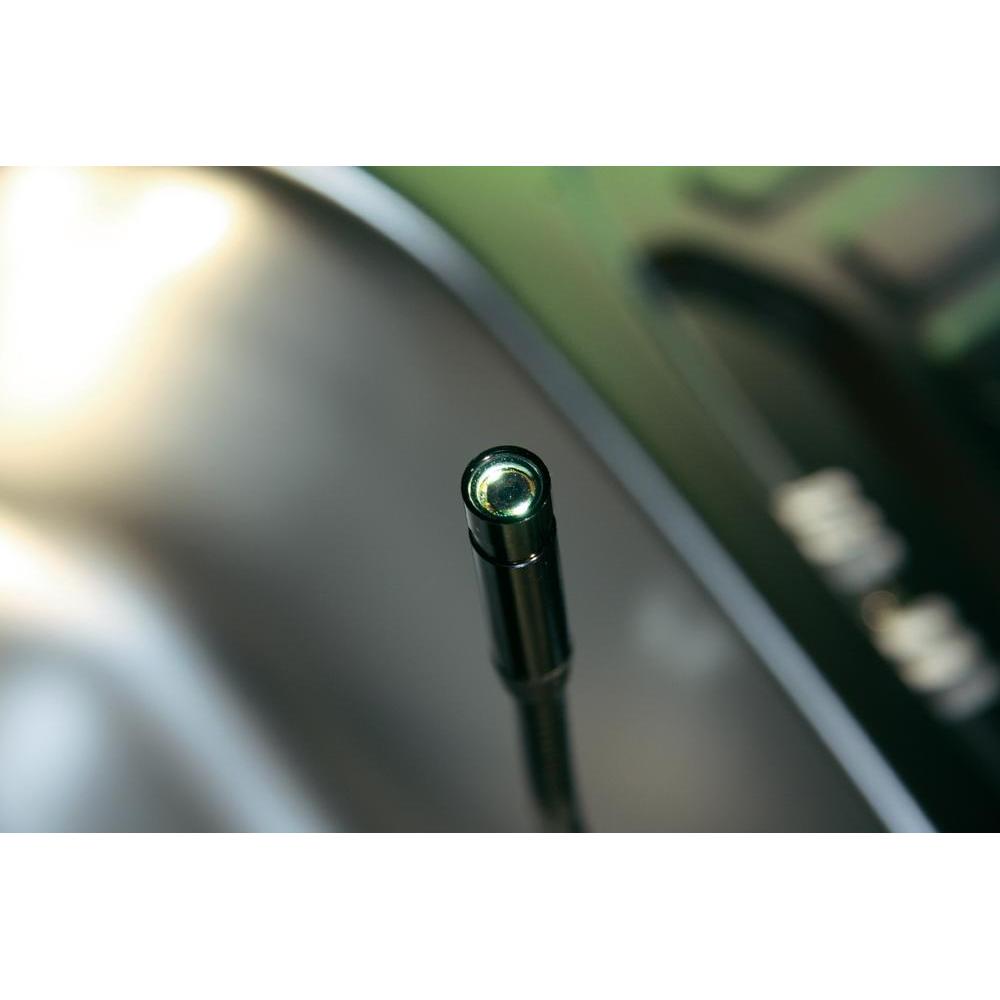

- Waterproof Ø 9.8 mm camera probe
- TV output
Included in delivery
- Magnetic attachment
- Hook attachment

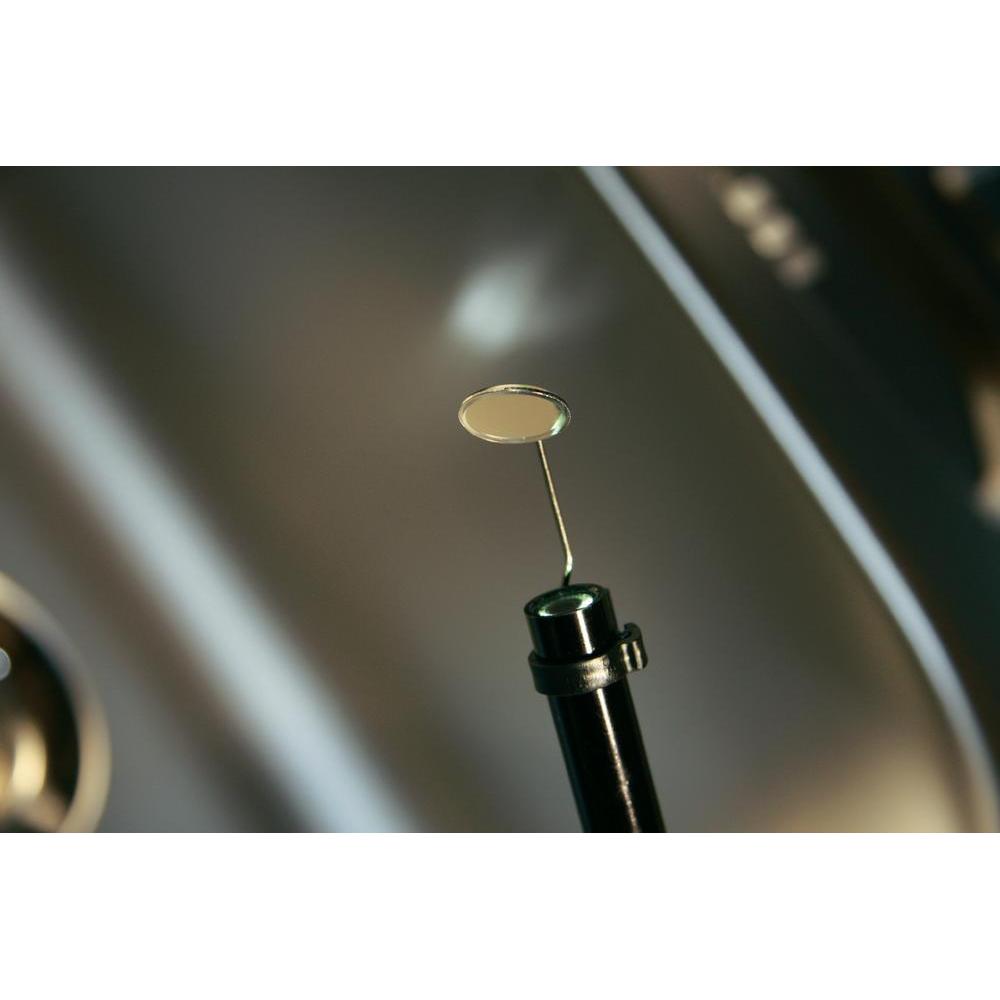

- Mirror attachment
- 1 m USB cable
- Composite video cable
- Transport case
- User manual.
Technical data
| Endoscope type (category) | Endoscope with probe |
|---|---|
| Probe Ø | 9.8 mm |
| Probe length | 88 cm |
| Display resolution | 320 x 480 pixels |
| Camera resolution | 640 x 480 pixels |
| Focus | 30 - 60 mm |
| Power supply | 4 AA batteries |
| Field of view | 54 ° |
| Light source | 2 LEDs, white |
| Max. bending radius | 45 mm |
| Weight | 430 g |
| Ambient temperature | 0 to 45 °C |
