BALUN 1:1 CURRENT 2KW
2x FT-240-43 — RF Choke 1–50 MHz 200 μH — Stainless Bracket — Made in Italy

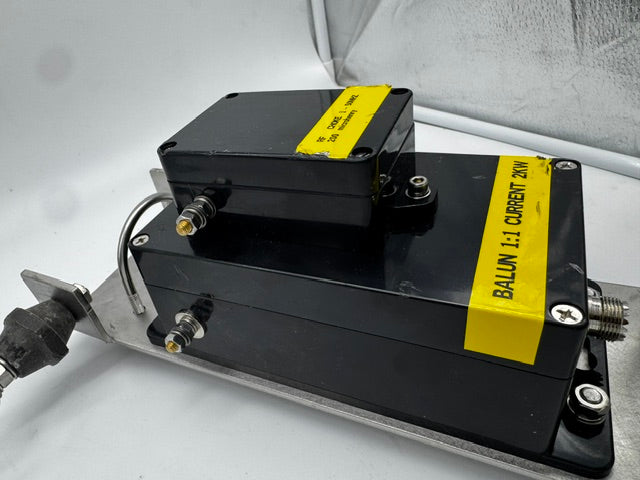

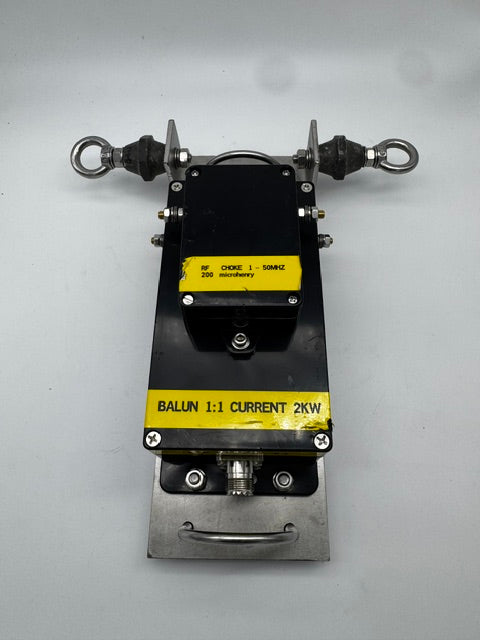

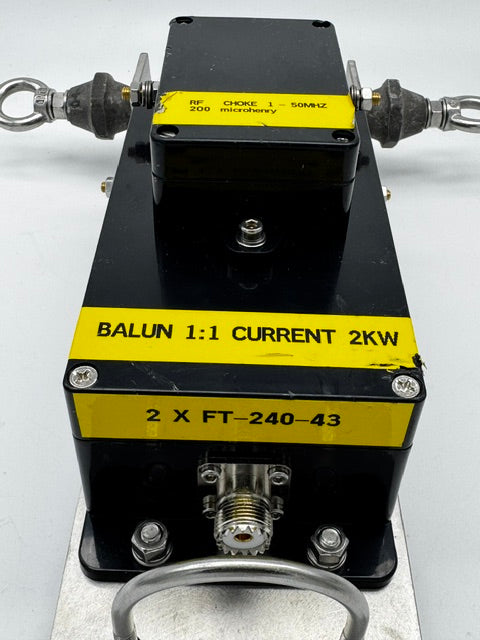

Balun handcrafted in Italy by a specialised workshop. Dual toroidal core 2x FT-240-43 with integrated RF Choke in the upper box (1–50 MHz, 200 μH). Powder-coated sheet-metal box, mast-mounting bracket in stainless steel, SO-239 connector, high-voltage insulators with eyelets for the antenna wire. Every unit is tested before shipping.
Product Description
The Balun 1:1 Current 2kW is a professional current balun designed to eliminate common-mode currents on the coaxial cable, improve the antenna's radiation pattern and protect the station from unwanted RF. Thanks to the dual FT-240-43 core and integrated RF Choke, it ensures excellent performance across the entire HF spectrum from 1 to 50 MHz, with a rated power of 2kW in SSB/CW. Ideal for dipoles, long wires and wire antennas in general.
Main Features
- Dual toroidal core: 2x FT-240-43, high-permeability material for maximum efficiency on HF.
- Integrated RF Choke (upper box): 1–50 MHz, 200 μH — effective suppression of common-mode currents.
- Rated power: 2kW SSB/CW — also suitable for medium-power linear amplifiers.
- Connector: SO-239 (UHF) on the coax side, insulators with eyelets on the antenna side.

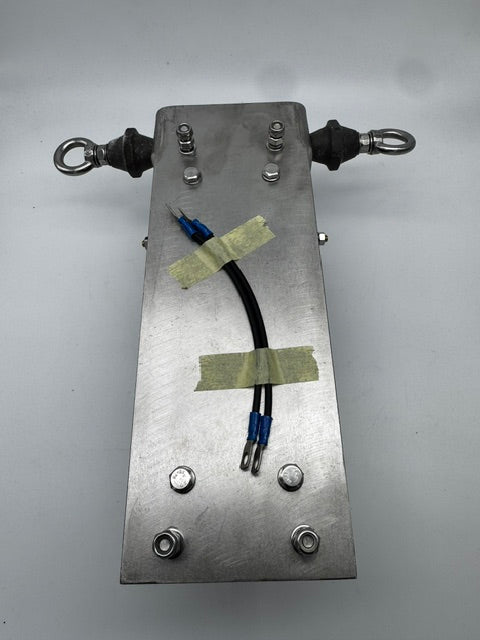

- Stainless bracket: Quick mast mounting, corrosion resistant for permanent outdoor use.
- Made in Italy: Handcrafted construction, every piece individually tested.
Usage Scenarios
- HF dipoles and long wires: Perfect balancing between coaxial line and balanced antenna, eliminating the common-mode currents that degrade the signal.
- High-power stations: Thanks to the 2kW rated power, compatible with most amateur linear amplifiers.
- Permanent outdoor installations: The stainless steel bracket and rugged construction ensure years of service even in coastal or high-humidity environments.
HRS tip: A well-built current balun is one of the most underrated investments in an HF station. This model definitively solves RF-in-the-shack problems and improves SWR.
The HamRadioShop Team's Opinion
“Finding a current balun built with this level of handcrafted care, with dual FT-240-43 core and integrated RF Choke, at this price is rare. The stainless bracket makes it ideal for permanent installations. Whoever buys it is not just buying an accessory, but a component that will concretely improve their HF station's performance for many years.”
Technical Specifications
| Type | 1:1 current balun |
| Core | 2x FT-240-43 |
| RF Choke | 1–50 MHz — 200 μH (upper box) |
| Maximum power | 2kW SSB/CW |
| Connector | SO-239 (UHF) |
| Bracket | Stainless steel for mast mounting |
| Origin | Made in Italy — Handcrafted Construction |
HamRadioShop | Selected and Tested Professional Antenna Accessories
