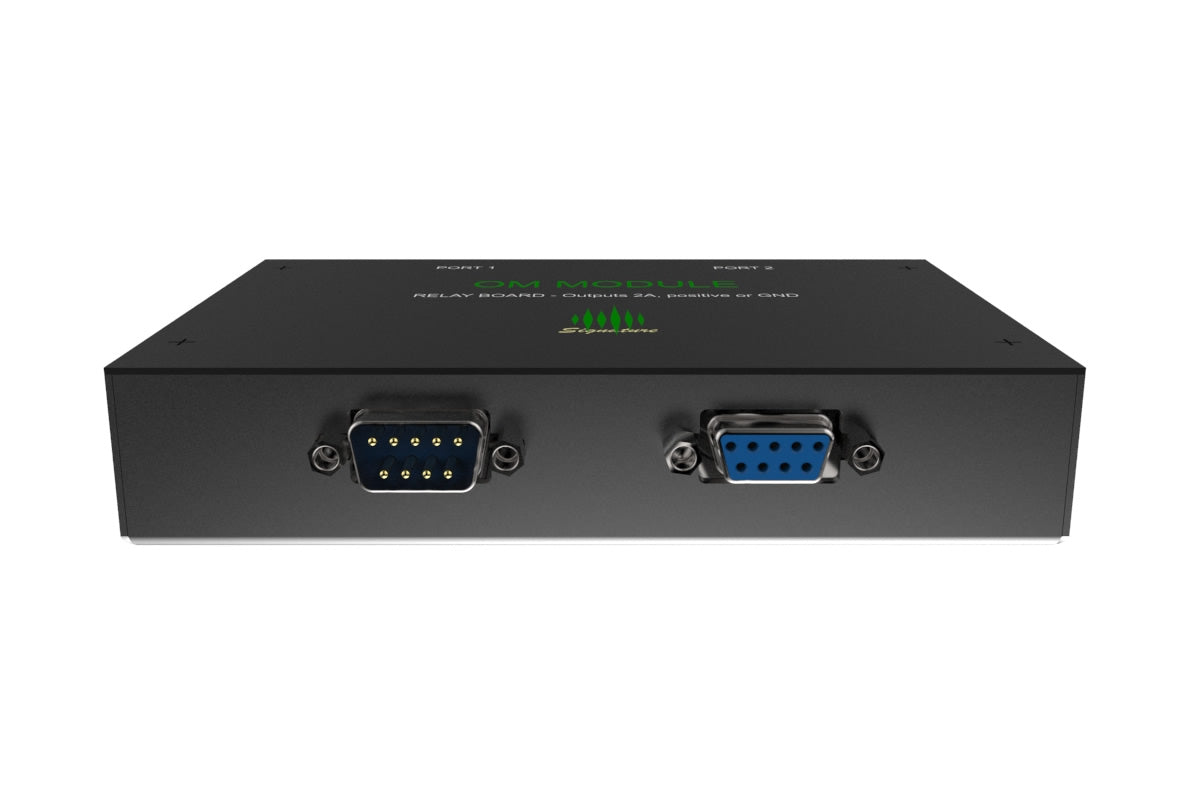

4O3A OM Module 16 relays
16 dual-contact relay output module for Antenna Genius 8x2, 8x1 and Station Genius
The 4O3A OM Module adds 16 dual-contact relay outputs to the Antenna Genius 8x2, 8x1 and Station Genius controllers, to drive station peripherals. The outputs are programmed with the controllers' Windows applications.
Product description

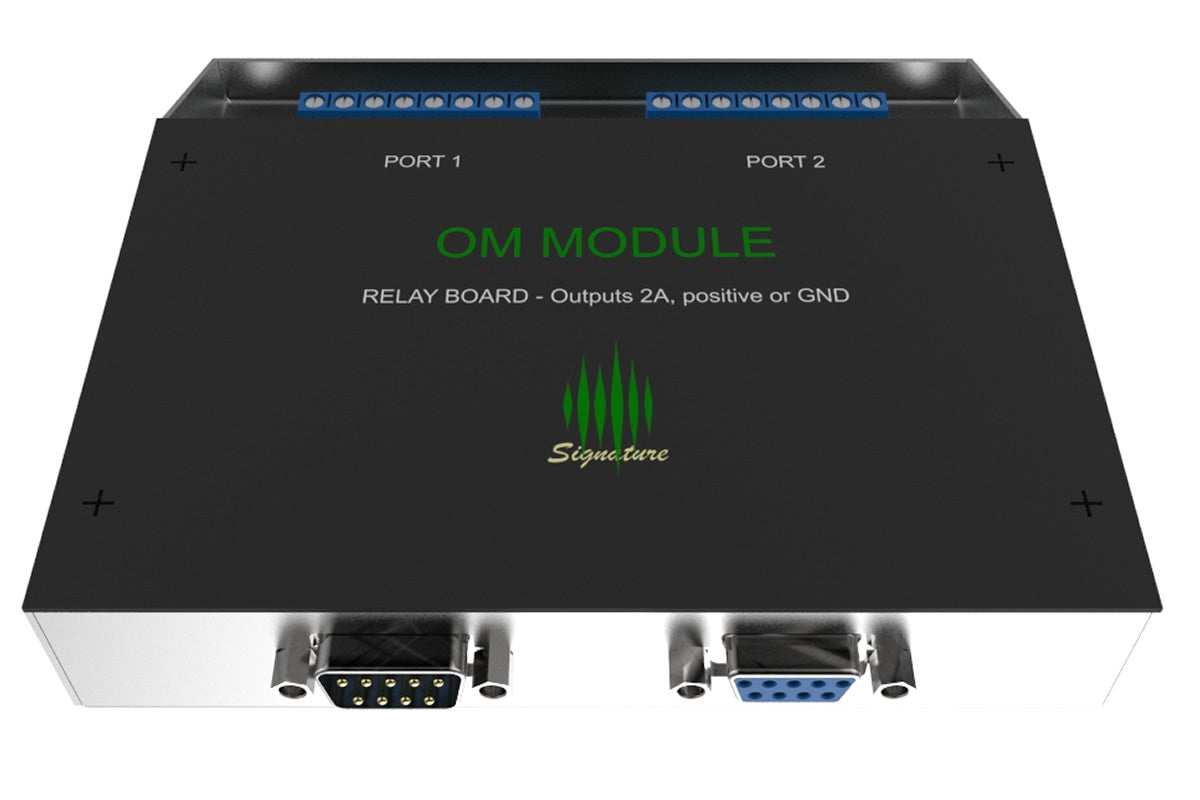

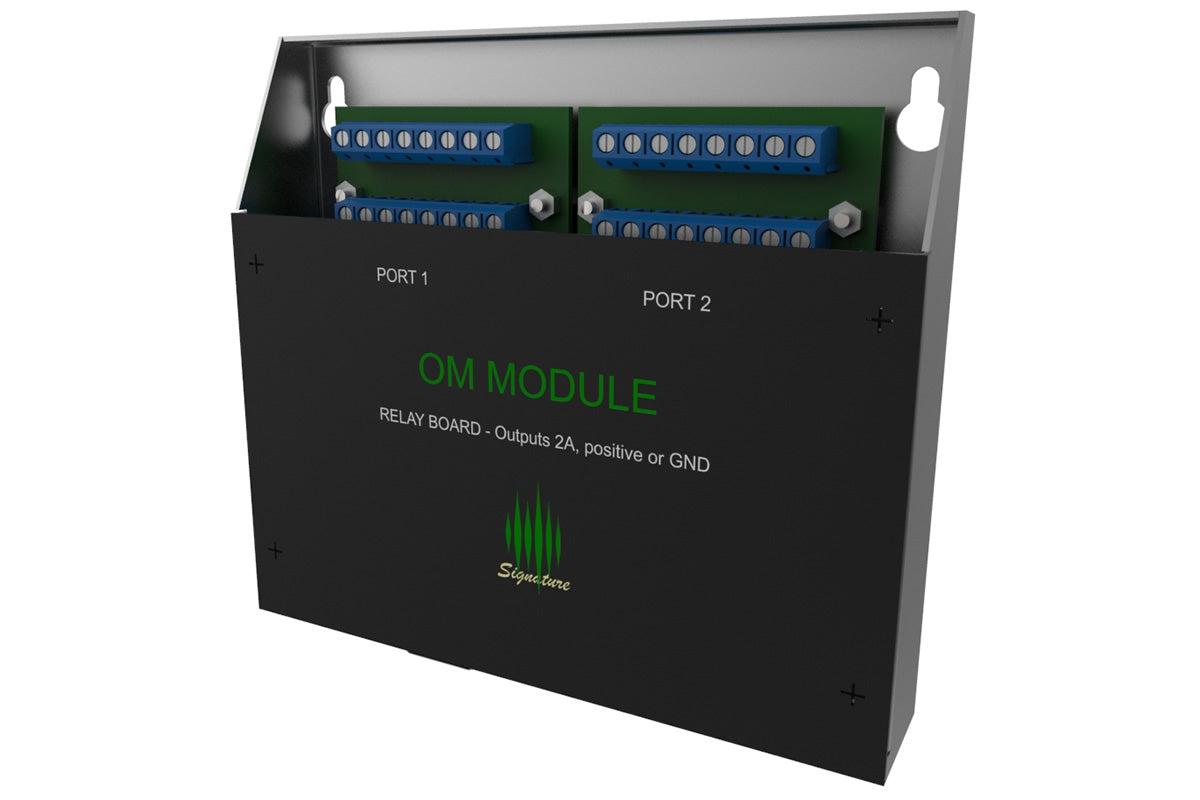

Each output has a dedicated relay with two contacts, wired to separate terminals marked A and B. Using jumpers, each terminal can be configured for positive voltage or ground: an output can provide 2 × positive, 2 × ground or 1 × positive and 1 × ground.
The case is made of stainless steel and each output has an LED showing its activation status.
Key features
Each with dual A/B contact.
Positive or ground via jumpers.
One for each output.
Note
Preliminary manufacturer specifications, subject to change without notice.
Technical specifications
| Outputs | 16 dual-contact relays (terminals A and B) |
| Output configuration | 2 × positive, 2 × ground or 1 + 1, via jumpers |
| Compatibility | 4O3A Antenna Genius 8x2, 8x1, Station Genius |
| Programming | Controllers' Windows applications |
| Case | Stainless steel |
| Dimensions | 13 × 13.5 × 2 cm |
| Weight | 0.2 kg |
