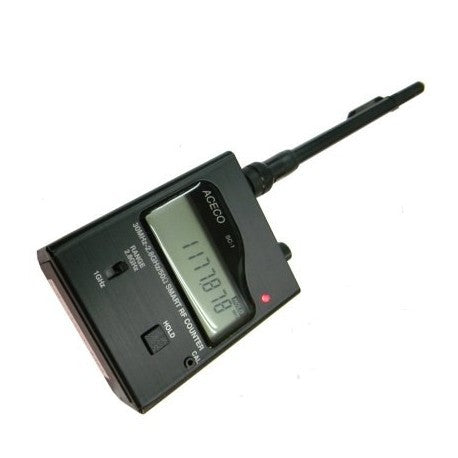

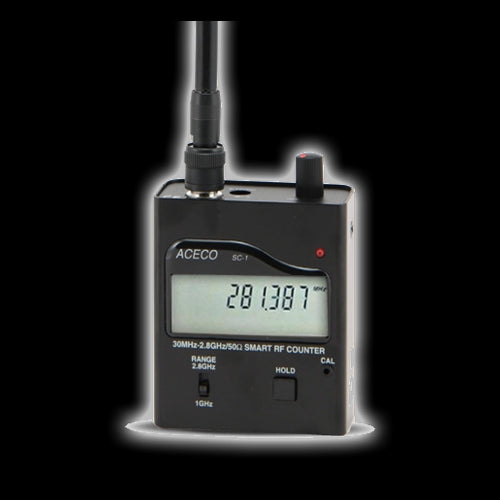

The Aceco SC1
a portable, compact, and pocket-sized radio frequency counter, designed for measuring digital signals, on/off numerical modulation in the frequency range between 30MHz and 2.8GHz.
Radio frequency counter 30MHz~2.8GHz Aceco SC-1
The Aceco SC-1 is a portable, compact, and pocket-sized radio frequency counter, designed for measuring digital signals, on/off numerical modulation in the frequency range between 30MHz and 2.8GHz.
FEATURES:
- 7-digit LCD display - Frequency meter for digital, on/off, and analog signals with a minimum pulse width of 250µS
- Ultra-sensitive synchronous detector, 16-segment bar graph for displaying RF signal strength (from -35 to 0dBm)
- Two selectable ranges: 1GHz position for frequencies 30MHz/1GHz / 2.8GHz position for frequencies 500MHz/2.8GHz
- 16-segment RSSI bar graph for displaying signal strength - Squelch adjustment for incoming signals
- Low battery indicator - Vibration alert - Low power consumption, average 5 hours - Impedance: 50ohm (BNC connector)
- VSWR less than 2:1 - Frequency range: 30MHz to 2.8GHz
- Sensitivity: less than 5mV
- Maximum input: 15dBm
- Resolution: 10kHz for digital or ON/Off signals / 1kHz for analog signals
- Die-cast aluminum casing with black anodized finish
- Batteries: 4 x AA 600mAh Ni-Cd battery pack
- Power supply: 9V DC 300mA
- Dimensions: 80 x 68 x 31 mm.
- Weight: 210 gr.
- Optional case.
