Status Quad 3/4 StQ 5 3/4 elements 5 bands
5-band cubical quad antenna for 20, 17, 15, 12 and 10 m, 3 or 4 elements per band, 5.60 m boom

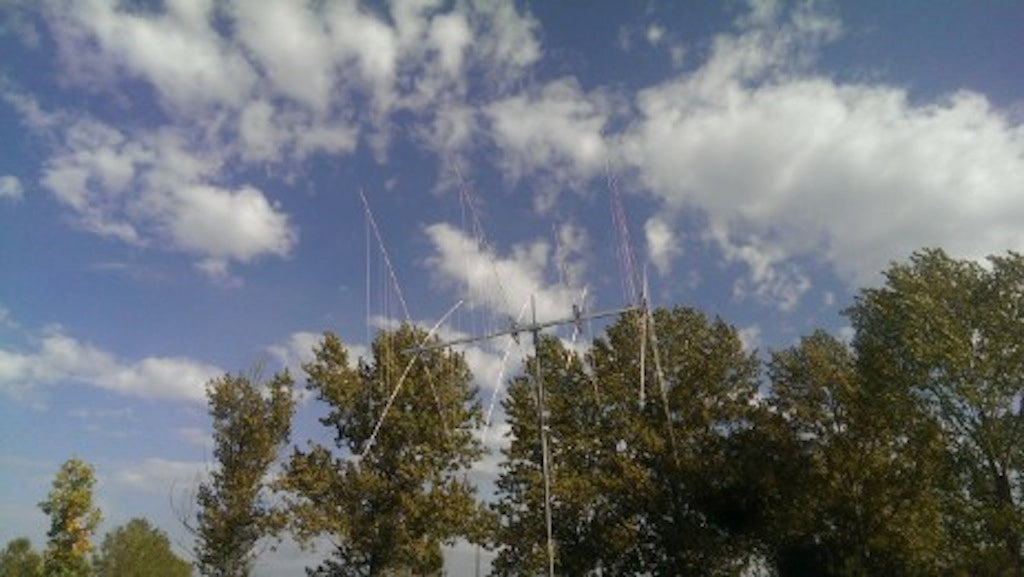

The Status Quad 3/4 StQ 5 is a 5-band cubical quad HF antenna for 20, 17, 15, 12 and 10 metres, built in Italy by Status Quad.
Product description

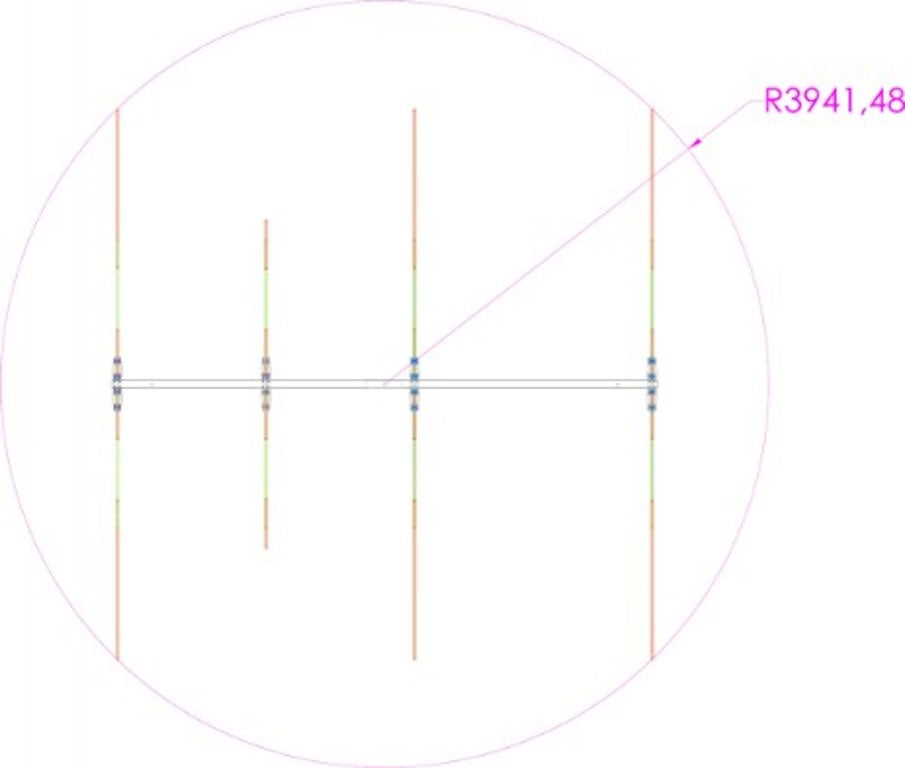

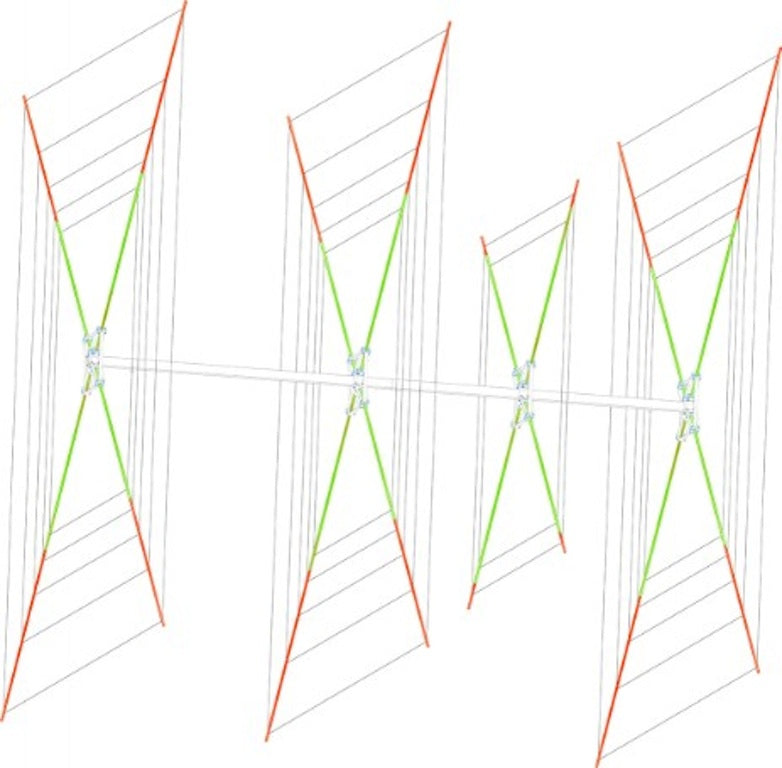

It has 3 elements on 20, 17 and 15 metres and 4 elements on 12 and 10 metres, with a 5.60 m boom.
The optional 4 StQ 50 kit for 50 MHz can be mounted on the same boom: this gives a full-size six-band quad on a single boom.
The element guy kit can be added as an option, even after installation: 25 mm fibreglass boom extensions, 3 mm Mastrant guys linking the elements to each other and to the extensions, and a Mastrant loop on each element. The kit prevents movement of the fibreglass spreaders in strong wind or with snow on the wire: the structure stays just flexible enough to absorb the wind thrust without ever exceeding the critical level of mechanical stress.
Key features
20, 17, 15, 12 and 10 m.
4 StQ 50 kit for 50 MHz on the same boom.
Optional, against wind and snow.
Technical specifications
| Type | 5-band HF quad |
| Bands | 20 / 17 / 15 / 12 / 10 m |
| Elements per band | 3 (20, 17, 15 m) · 4 (12, 10 m) |
| Boom length | 5.60 m |
