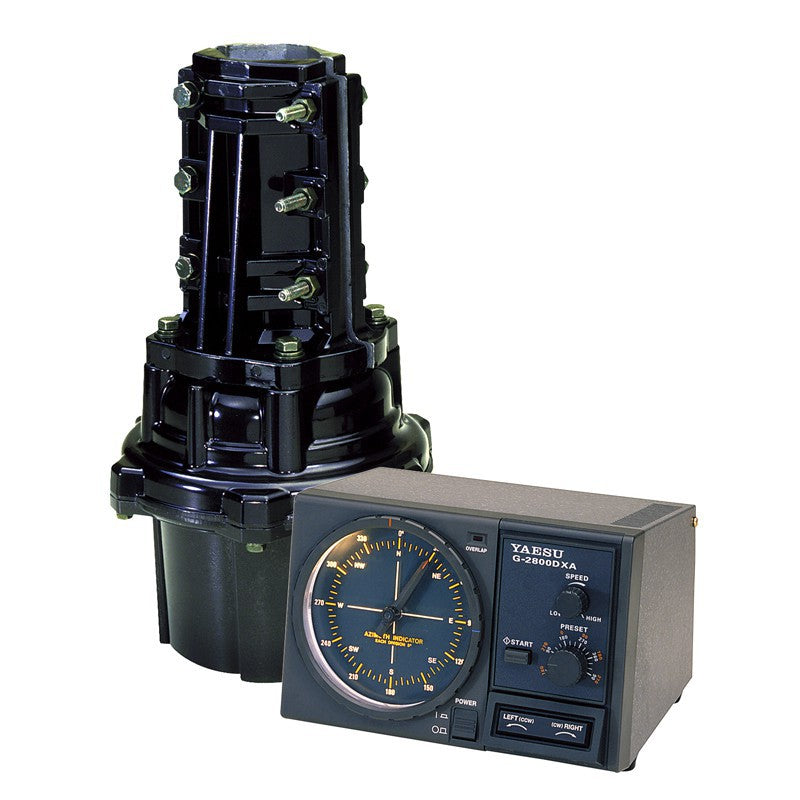

Yaesu G-2800 DXC Antenna Rotator + Connector Kit
Details:
For very heavy duty
Mast size: 48~63 f
Included Accessories:
Connector Kit
For the widest selection of rotators offered by leading radio equipment manufacturers, turn to Yaesu. With five different models to choose from, we provide rotators and controllers for VHF/UHF antennas for light applications, large HF units, and azimuth-elevation combinations for satellite applications. This is an exceptional assortment capable of satisfying virtually any need. All Yaesu rotators are housed in waterproof, die-cast aluminum enclosures and are permanently lubricated to ensure many years of quiet operation. Yaesu rotators feature a silent and reliable gear braking system.
Features:
• 450° tuning range on azimuth models
• 117 V, 220 V, and 220 V (CE)
• User-selectable North or South centering
• Models with “DXC/DXA” include variable speed and preset position controls
• Silent gear braking system
• Fits most US-made racks
Recommended application: Heavy-duty application, recommended for in-tower mounting
Wind load: 3 m²
K-factor*³: 950
Stationary torque: 25,000 kg/cm
Rotating torque: 2,500-800 kg/cm
Max vertical load: 300 kg
Max intermittent vertical load: 1,200 kg
Backlash: 0.2°
Mast size: 48~63 f
360° rotation time: 50~120 sec
180° elevation time: N/A
Boom diameter: N/A
Direct control from Yaesu HF radio: Yes
PC control*5: Yes
Rotator diameter x height: 200 f x 345
Weight: 6.5 kg
Cable requirement: 6
AC supply voltage: DXC:220 V (CE) DXA: 117/220 V
