FTA-550L

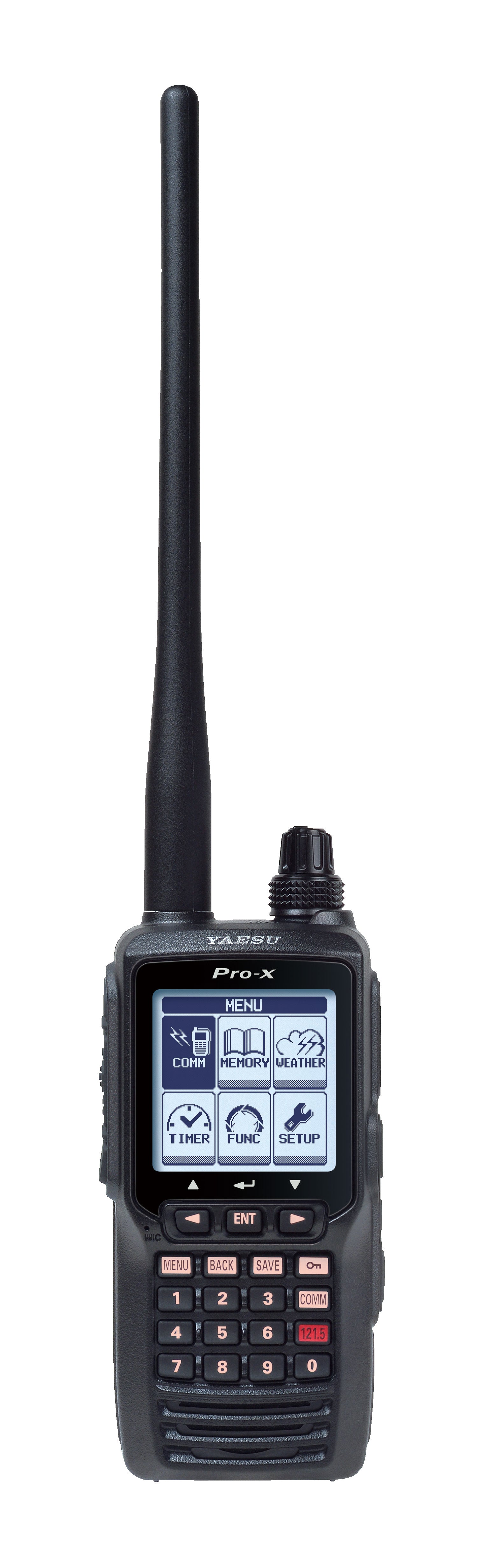

The Yaesu FTA-550L Pro-X aeronautical transceiver features an advanced user interface with a high-definition display that ensures intuitive operations and optimized performance.
The YAESU FTA-550L Pro-X is an aeronautical transceiver with ILS (localizer and glideslope) and VOR navigation.
FEATURES:
- 5 Watt TX output power (aviation: AM 5W P.E.P. typ, 1.5W carrier);
- Large 1.7" x 1.7" (43.2 x 43.2 mm) high-definition display (160 x 160 dots);
- ILS navigation display (localizer and glideslope);
- VOR navigation display;
- Receives NOAA Weather Channels*(2) • NOAA Weather Alert*(1);
- 200 memory channels with 15 alphanumeric characters;
- Backlit keypad and display with dimmer;
- Water Protection - IPX5 Rating • Loud Audio (800 mW);
- Includes high-capacity rechargeable Li-Ion battery (7.4 V 1800 mAh);
- Includes an alkaline battery tray (6 x AA)
*(1) Available only in areas covered by the NOAA weather service for glideslope) and VOR
VOR NAVIGATION SCREEN
When the FTA-750 receives a VOR signal, the display will automatically switch to the NAV screen showing a CDI based on the received signal.
INCLUDED ACCESSORIES:
- Li-Ion Batteries
- Charging Cradle
- AC Charger
- Cigarette Lighter DC/DC Converter
- Antenna
- Strap
- Headset Adapter
- Alkaline Battery Tray
- USB Cable
The FTA-550L has been tested and complies with military standard MIL-STD-810F. Similar to commercial Land Mobile radios, all current Yaesu Airband transceivers have been tested to withstand low temperatures, high temperatures, shock, vibration, dust, and rain, ensuring many years of robust use.
- Easy-to-use menu system

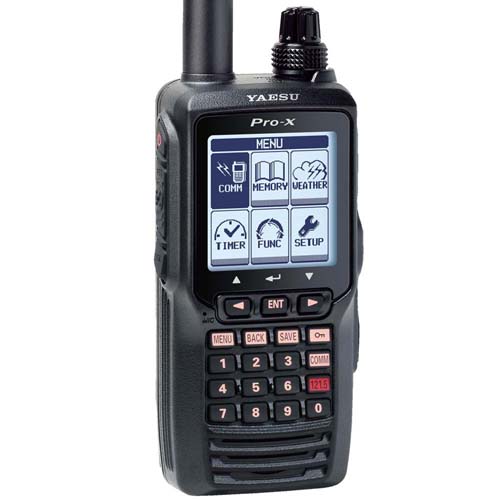

The FTA-550 is configured with an easy-to-use icon-driven menu system. Menu screens and settings are logically configured for a more intuitive user interface.
- Huge dot matrix display (160 x 160 dots)
The FTA-550 features a huge 1.7" x 1.7" dot matrix LCD display with full backlight and dimmer. The high-resolution display makes it easier to view all the great features the FTA-550 has to offer.
- VOR Navigation Display
When the FTA-550 receives a VOR signal, the display automatically switches to the NAV band screen showing a CDI based on the received signal.
- 200 memory channels with up to 15 alphanumeric characters
The FTA-550 can store up to 200 memory channels for quick and easy retrieval. With the ability to use up to 15 alphanumeric characters per name, the FTA-550 allows for a better channel description.
