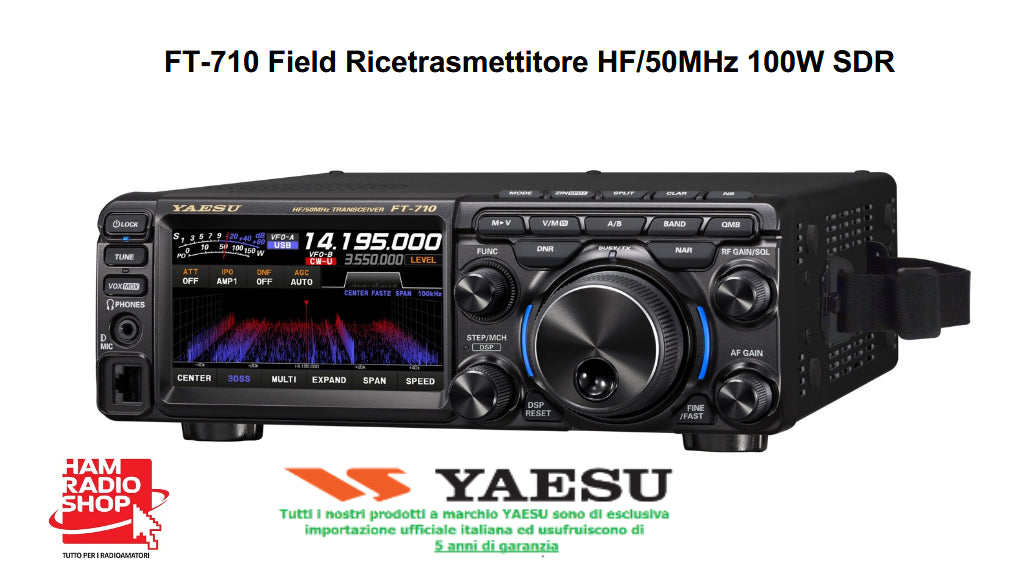

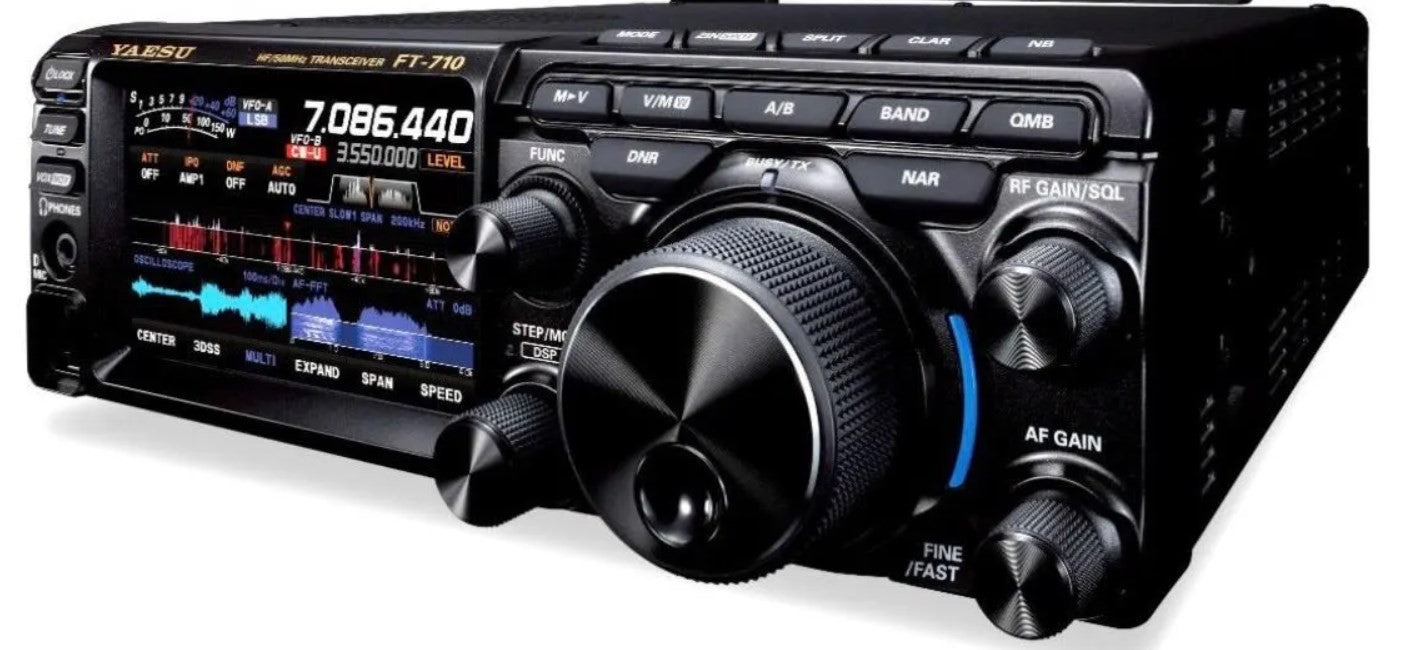

YAESU FT-710 FIELD
The FT-710 FIELD features a compact design yet delivers 100W output, utilizing the advanced digital RF technology introduced in the FTDX101 and FTDX10 series.
Some of the outstanding features of the new FT-710 include:
- Unparalleled YAESU SDR technology emphasizes receiving performance.
- Dedicated band-pass filters for amateur bands to eliminate unwanted out-of-band signals
- The RF Front-End design with 250MHz HRDDS (High-Resolution Direct Digital Synthesizer) allows for phenomenal multi-signal receiving characteristics
- QRM rejection by high-speed 32-bit floating-point dual-core DSP for SHIFT/ WIDTH/NOTCH/CONTOUR/ APF (Audio Peak Filter)/ DNR (Digital Noise Reduction)/ NB (Noise Blanker) and 3-stage parametric equalizer.
- High-resolution 4.3-inch TFT color touch panel display
- 3DSS (3-Dimensional Spectrum Stream)
- The VMI (VFO Mode Indicator) LED positioned around the VFO dial shows the current operating mode (VFO-A, VFO-B, Memory Mode and clarification/split operation).
- "PRESET" Mode function best suited for FT8 operation
- External display connection terminal (DVI-D)
- Built-in high-speed automatic antenna tuner with 100-channel memory
- Supports the FC-40 automatic antenna tuner
- SD memory card can be used to save communication records, transceiver settings, memory contents, screen capture images, and to update firmware
- Two (2) USB ports (Type-A and Type-B)
- Other essential functions such as CW ZIN and SPOT, IPO (Intercept Point Optimization), and remote operation with the network remote control system, to name a few
Technical specifications
- TX Frequency Range: 1.8MHz band – 50MHz band (Amateur bands only)70MHz – 70.5MHz (UK Amateur bands only)
- RX Frequency Range: 30KHz – 75MHz (Operating)
1.8MHz – 29.699999MHz (Specified performance, Amateur bands only)
50MHz – 53.999999MHz (Specified performance, Amateur bands only)
70MHz – 70.499999MHz (Specified performance, UK Amateur bands only)
- Emission modes: A1A(CW), A3E(AM), J3E(LSB/USB), F3E(FM)
- Supply Voltage: DC13.8V ?15%
- Output Power: 5 - 100W (5 – 25W AM Carrier)
- Dimensions (W x H x D): 9.4” x 3.1” x 9.7” (239 x 80 x 247mm)
- Weight (Approx.): 9.92lbs (4.5kg)
