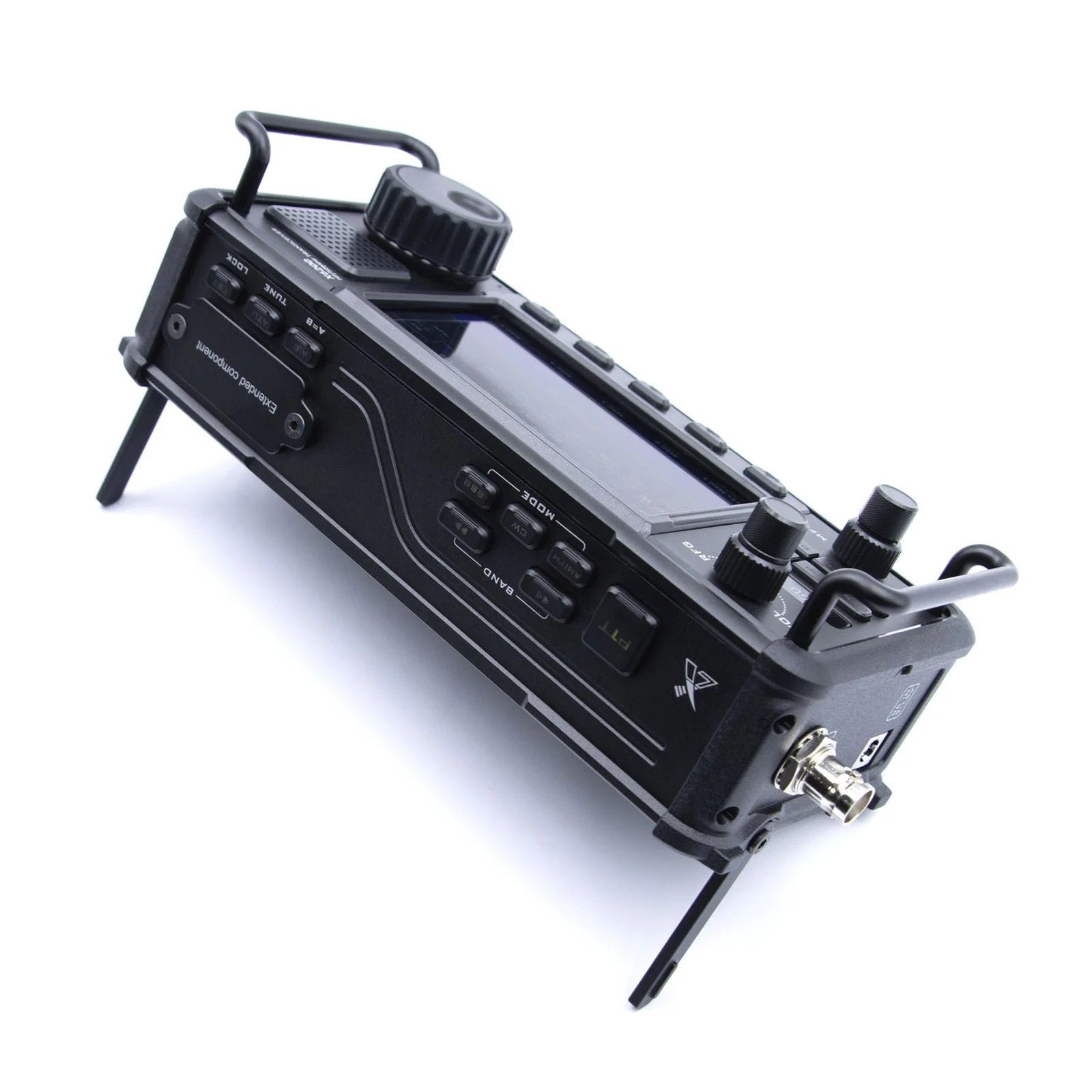

Xiegu X6200 QRP Amateur Radio

The brand new Xiegu X6200 is an ultra-portable direct sampling SDR transceiver for HF and 6m, offering additional reception in the VHF air band and wide FM reception in the FM broadcast band.

Thanks to its compact design, the X6100 from radio manufacturer Xiegu allows you to travel or hike immediately. This means that the radio hobby can also be pursued outdoors.

The Xiegu X6200 is a new generation ultra-portable flagship that uses a powerful DRFS platform architecture and offers radio amateurs a comfortable user experience.

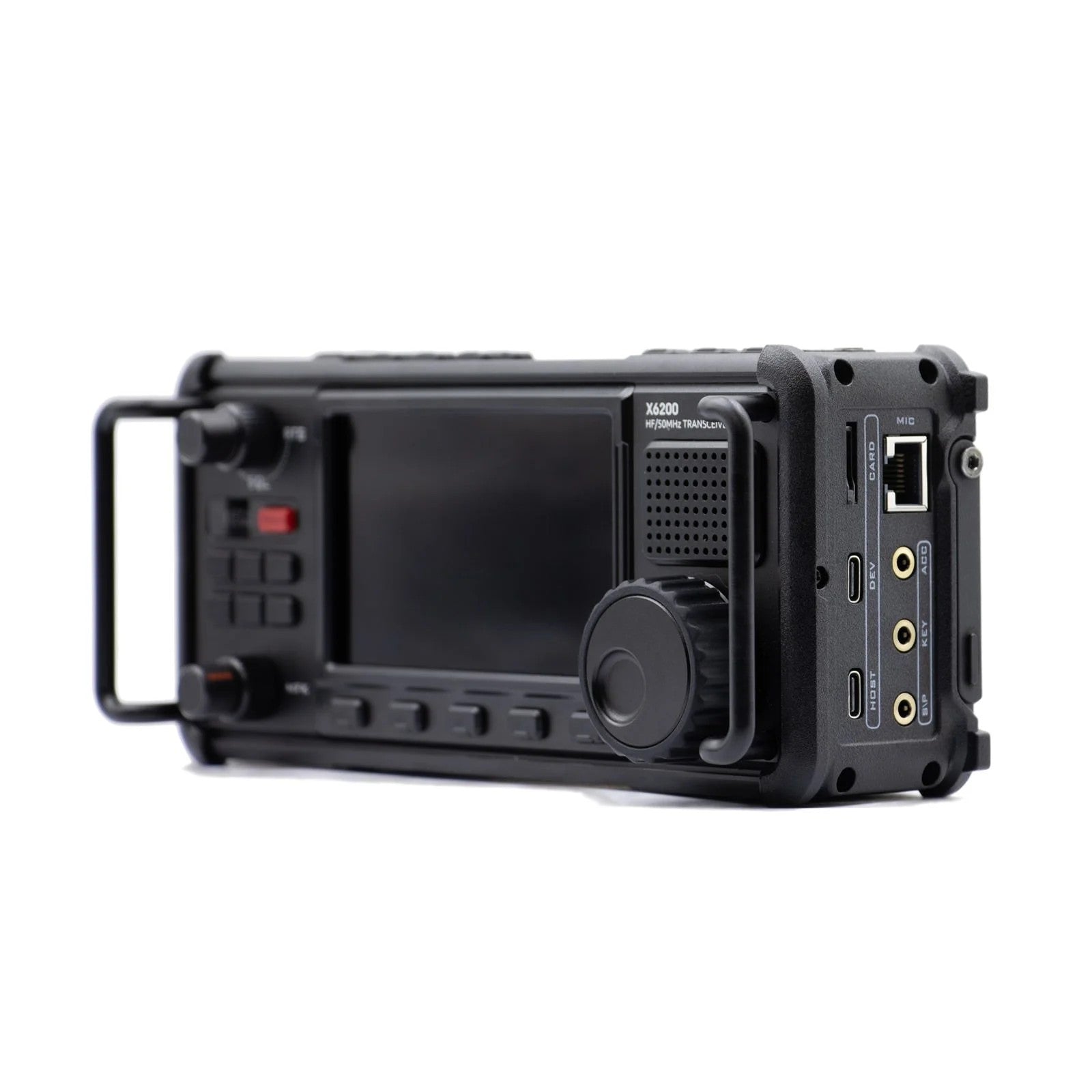

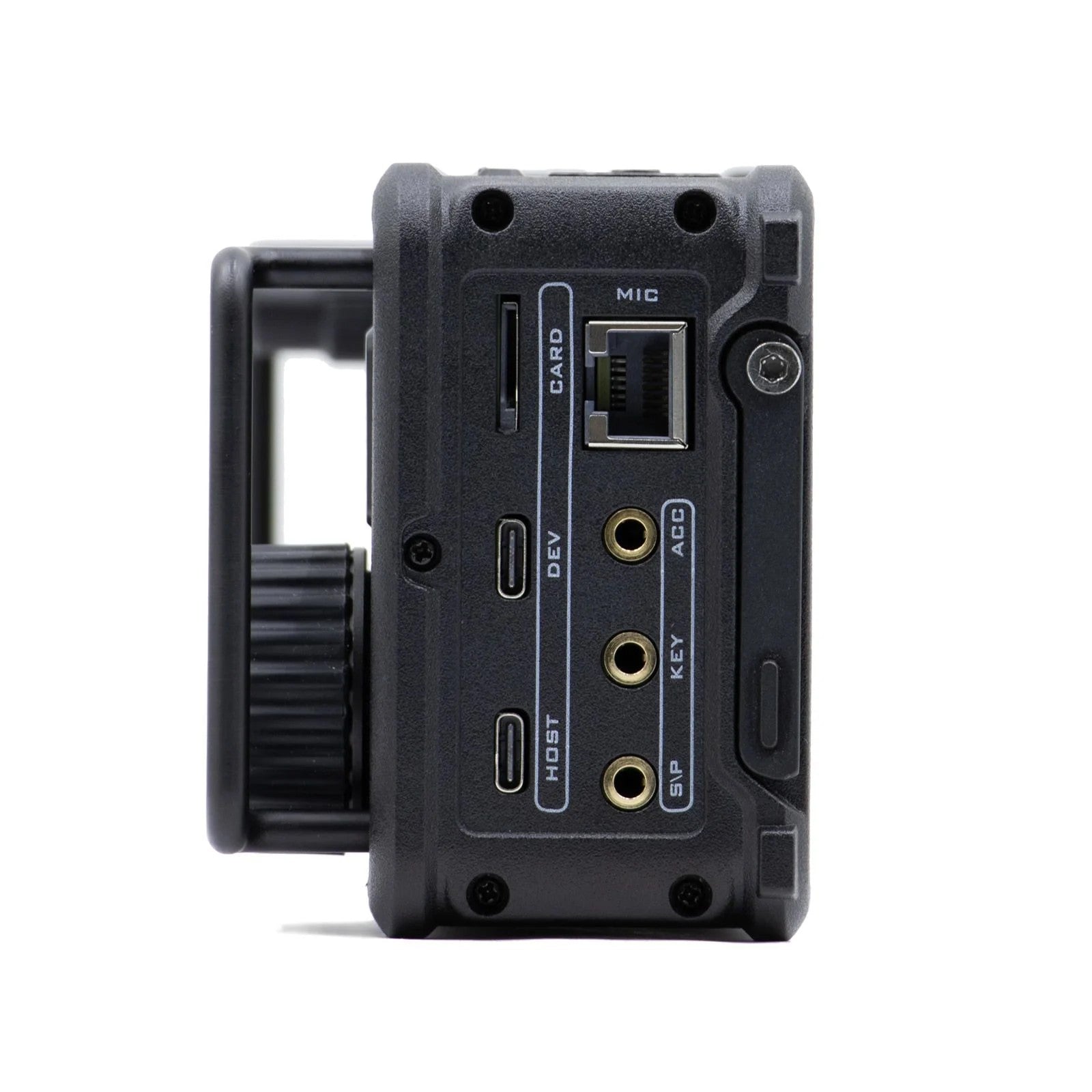

It features a 4-inch color screen, a built-in rechargeable battery, an automatic antenna tuner, a microphone, and a recorder. It also supports various SDR functions such as digital filters, noise cancellation, pulse interference removal, and spectrum/waterfall display. It also has two USB interfaces, an ACC interface, a 3.5mm KEY interface, and an S/P interface. Two slots for external expansion components allow for additional applications and connection of peripheral devices.

Xiegu X6200 main features:

• HF/50MHz all mode
• 8W transmit power with external power source, 5W with internal battery
• High resolution 4" color screen with 800*480 pixels

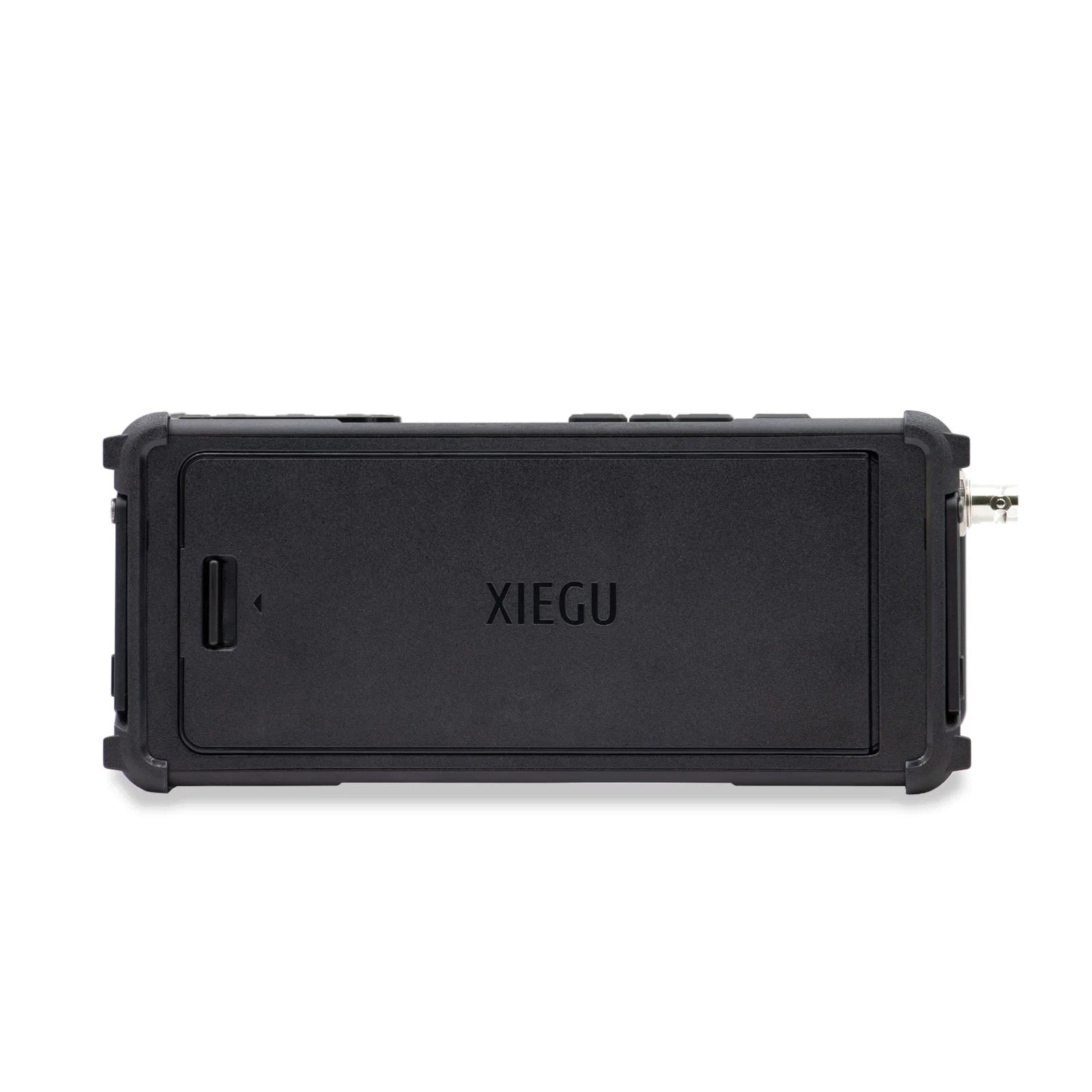

• Removable battery
• Efficient built-in automatic antenna tuner
• Integrated SWR scanner
• Voice memory keyboard
• CW memory button
• Integrated USB line control/transmission, integrated sound card
• Support for remote control
• Wireless FT8 operation
• WFM broadcast reception
• Airband reception

Xiegu X6200 General Specifications:

• Frequency coverage: 0.5-30+50-54MHz (transmission in amateur bands)
• Operating modes: USB/LSB (J3E), CW (A1A), FM (F3E), RTTY (F1B), AM (A3E)
• Minimum frequency step: 1 Hz
• External supply voltage: DC9-15V
• Frequency stability: ±1 ppm within 20 minutes of power-on
• Antenna impedance: 50 Ohm

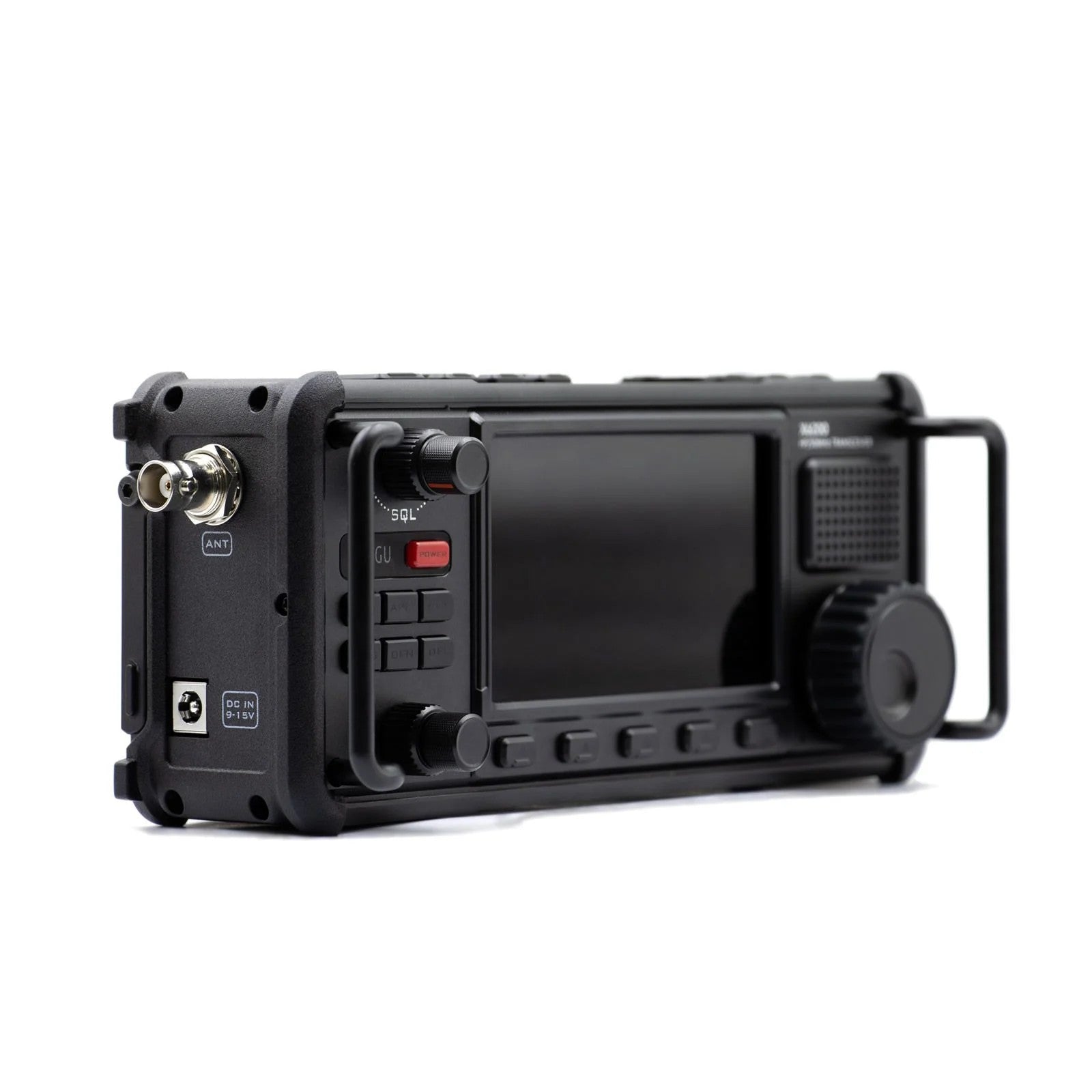

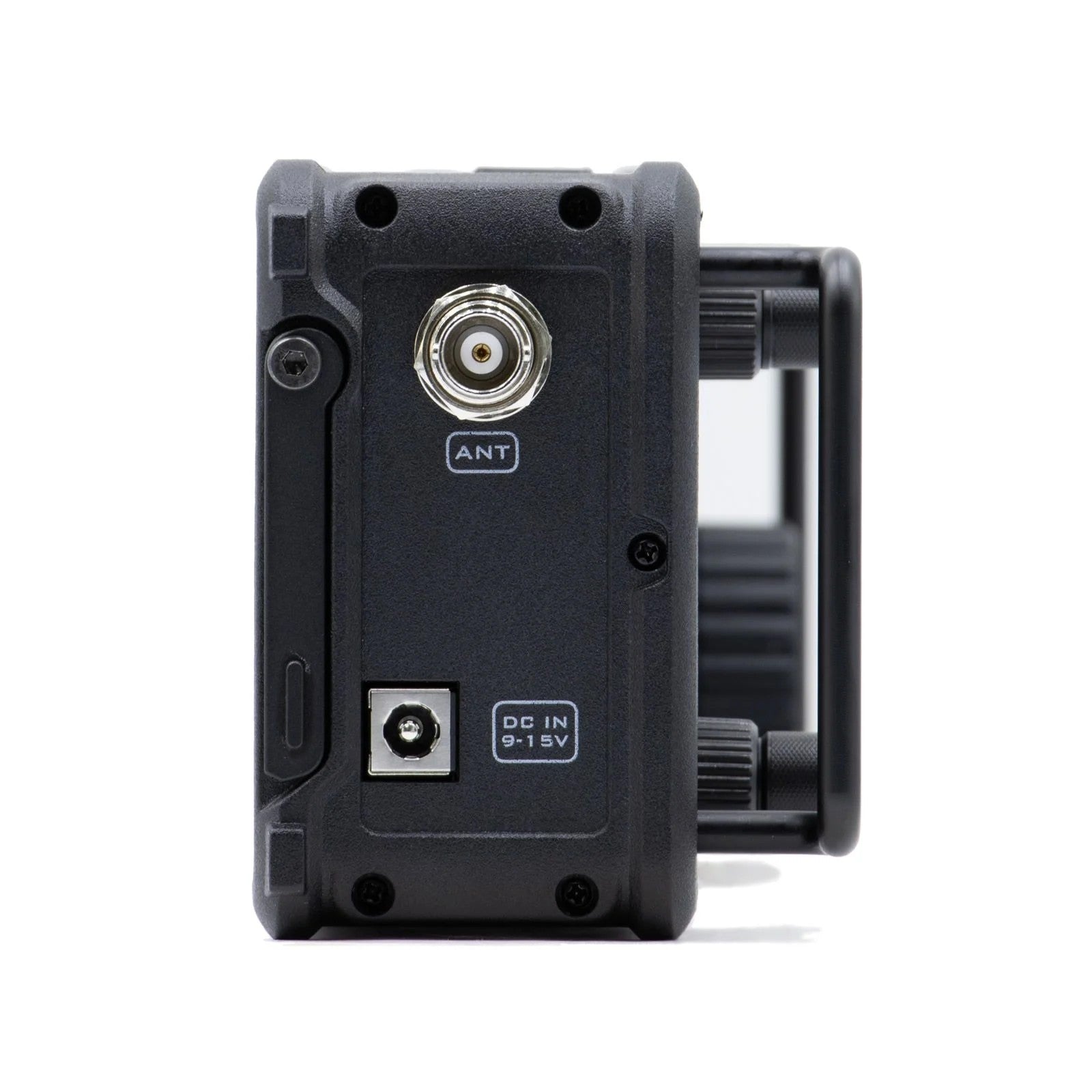

• Antenna connection type: BNC
• Operating temperature: 0 °C to +50 °C
• RX power consumption: <65 mA, TX: 3.5A

Xiegu X6200 Receiver Specifications:

Frequency Coverage:

• 0.5-30+50-54MHz
• 88-108MHz (FM broadcast)
• 108-136MHz (airband)
• Sensitivity (10dBS/N):
• 0.55-1.79 MHz AM: 10 µV
• 1.8-30 MHz SSB/CW 0.20 µV, AM 2 µV
• 50-54 MHz FM 0.2 µV AM 2 µV
• 88-108 MHz FM 5 µV
• Audio output: 0.45 (4 Ohm =10% THD)
• MDS: -138 dBm

Xiegu X6200 Transmitter Specifications:

Frequency range:

• 1.8-2.0 MHz
• 3.5-3.9 MHz
• 5.3515-5.3665 MHz
• 7.0-7.2 MHz
• 10.1-10.15 MHz
• 14.0-14.35 MHz
• 18.068-18.168 MHz
• 21.0-21.45 MHz
• 24.89-24.99 MHz
• 28.0-29.7 MHz
• 50-54 MHz

• Output power, external power supply: 8W +/- 1dB
• Output power, internal battery: 5W +/- 1dB
• Suppression of interference emissions: 1.8-29.6 MHz: =50 dB, 50-54 MHz =60 dB
• Carrier suppression: =50 dB
• SSB frequency response: 300-2700 Hz (-6 dB)
• FM modulation variation: +/- 5 kHz
• Microphone impedance: 0.2-10k
• Antenna tuner tuning impedance range: 20-175 Ohm
• Initial antenna tuner tuning time: = 10s
• Antenna tuner memory recall time: = 0.1s

Xiegu X6200 Wireless/Bluetooth Network:

• Wireless LAN standard: IEEE802.11b/g/n
• Authentication and encryption: WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES)
• Frequency band: 2.4G
• Bluetooth version: 4.0

Xiegu X6200 General Specifications:

• Dimensions: 200 x 89 x 51 mm
• Weight: 880 g (radio only)

The Xiegu X6200 package includes:

• Xiegu X6200 radio complete with antenna tuner and rechargeable battery

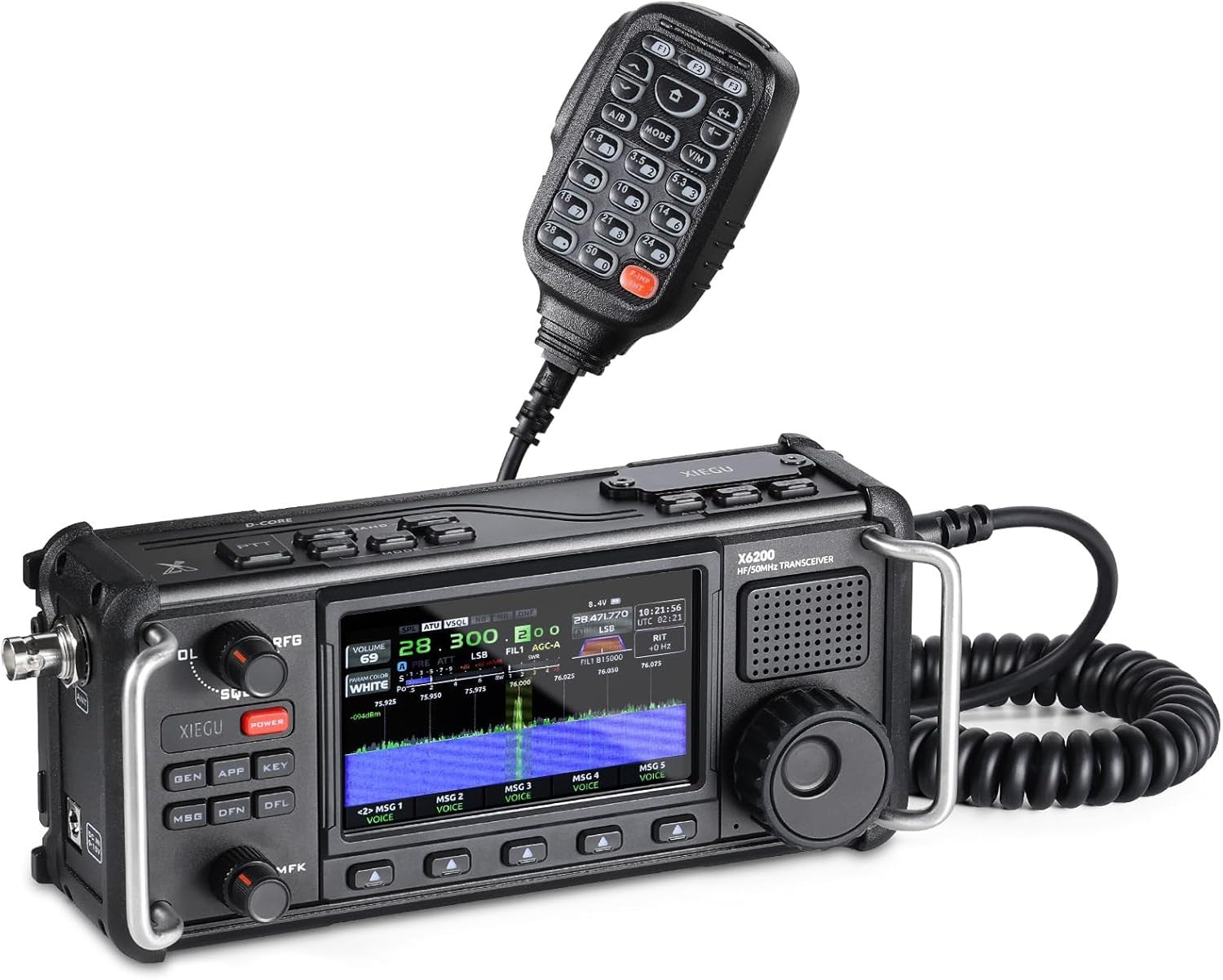

• Microphone with illuminated keyboard for remote control
• Serial cable for PC connection
• 12-volt DC cable
• English manual
• Xiegu service card
