RTX SDR 24 bit, 20 W output, detachable front panel, internal automatic antenna tuner, waterfatt, I/Q output, CAT control
Xiegu G90 Features
High-performance narrow-band front-end ESC preselector
0.5 ~ 30 MHz frequency range, SSB / CW / AM
1.8-inch high-brightness color TFT LCD display
±24kHz band spectrum display with waterfall
Software-defined narrow filter (CW mode: 300Hz)

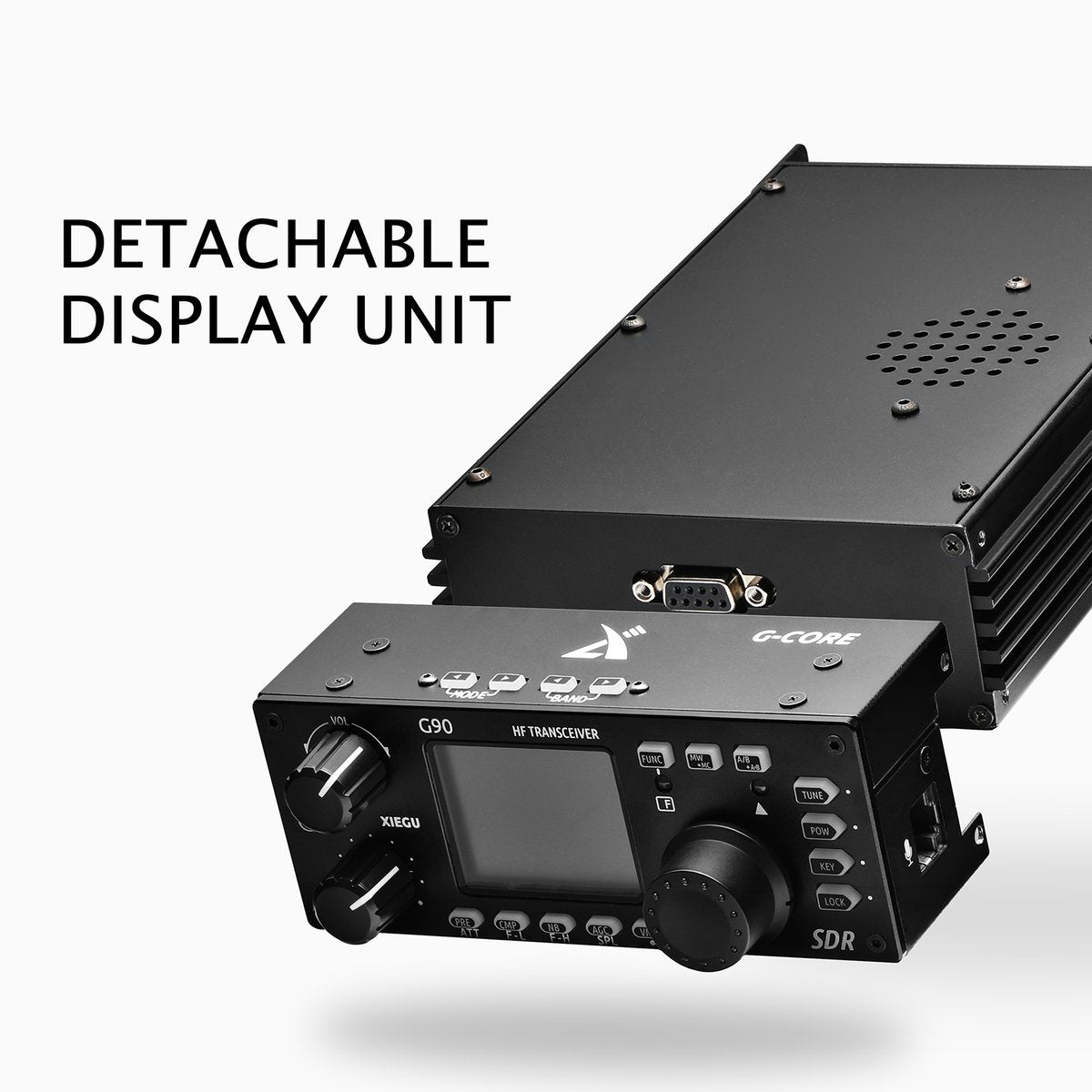

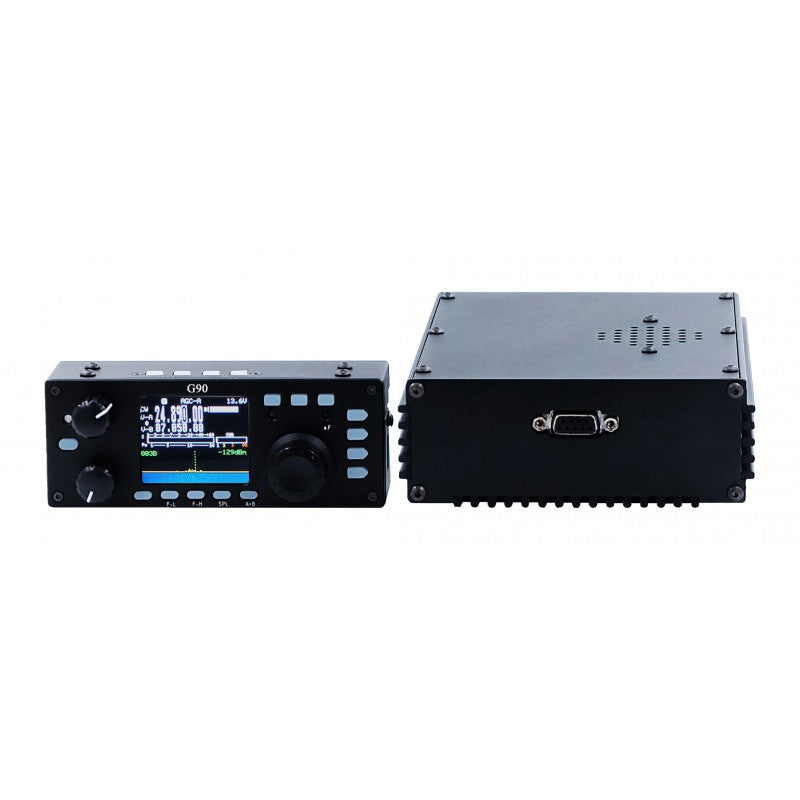

Detachable front panel
Up to 20W RF power

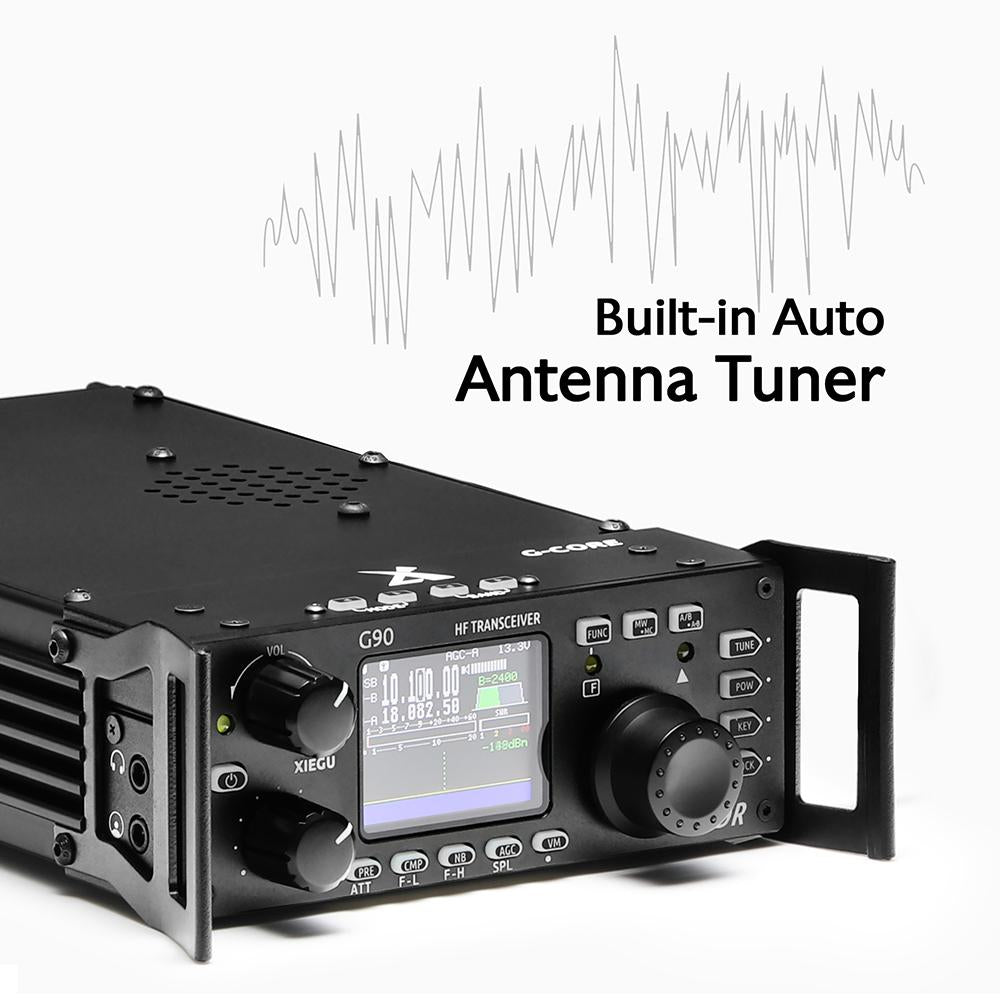

Built-in wide impedance range automatic antenna tuner

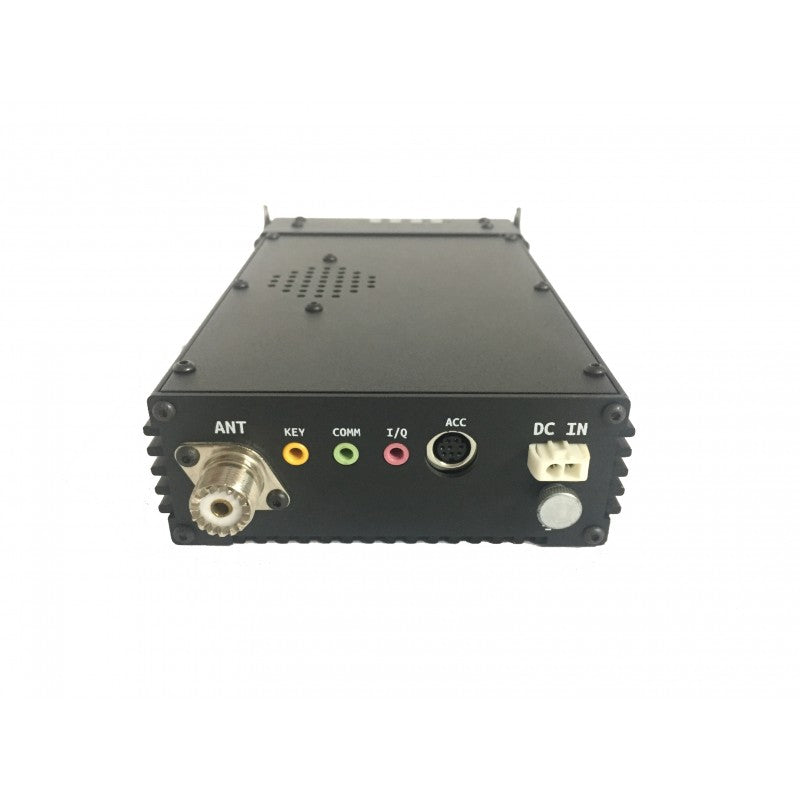

I/Q output for interfacing with a PC or Xiegu XDT1 panadapter accessory
Xiegu G90 Receiver Parameters
RX Frequency Range: 0.5 MHz to 30 MHz
Modes: SSB / CW / AM
RX Sensitivity: better than 0.25uV @ 12dB Sinad (PRE: ON) Machine dynamic range: 90dB
Adjacent channel suppression: 60 dB
Audio output power: 0.5 W @ 4O
Standby current: 750 mA @ max
Xiegu G90 Transmitter Parameters
TX Frequency Range: all amateur bands from 1.8 to 30 MHz
Modes: SSB / CW / AM
RF Output Power: 20W
Spurious suppression: =50 dB
Carrier suppression: =50dB
Sideband suppression: =50 dB
Transmitting working current: 8A @ max
Xiegu G90 Antenna Tuner Parameters
Initial tuning time: =12s
Tuning time after first tune: = 2s
Xiegu G90 General Specifications
Operating voltage range: 12 ~ 15 V DC
Operating temperature range: 0 ° C ~ 55 ° C
Frequency stability: ± 2ppm (after 30 minutes of power-on)

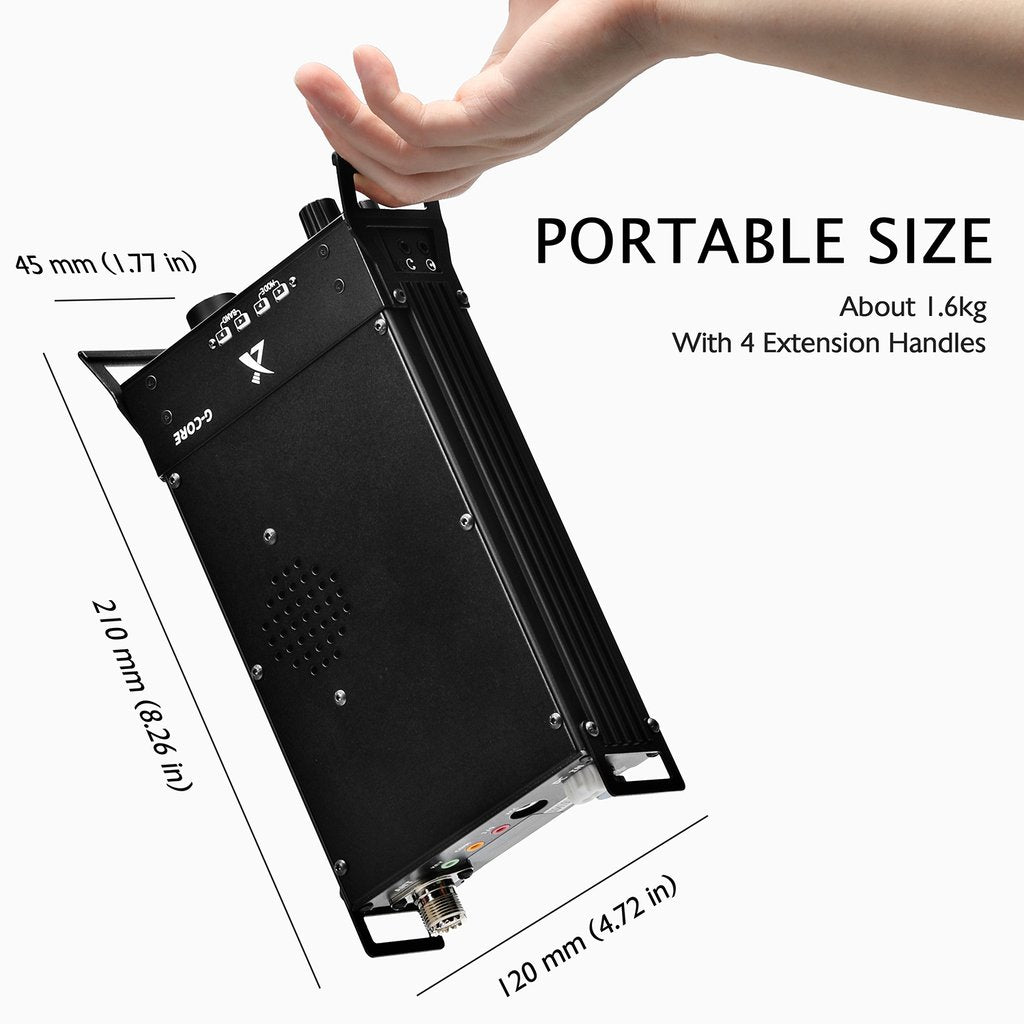

Dimensions: 120 * 45 * 210 mm (without protrusions, main unit combination state, assembled and ready-to-use kit)
Weight: approx. 1 kg
