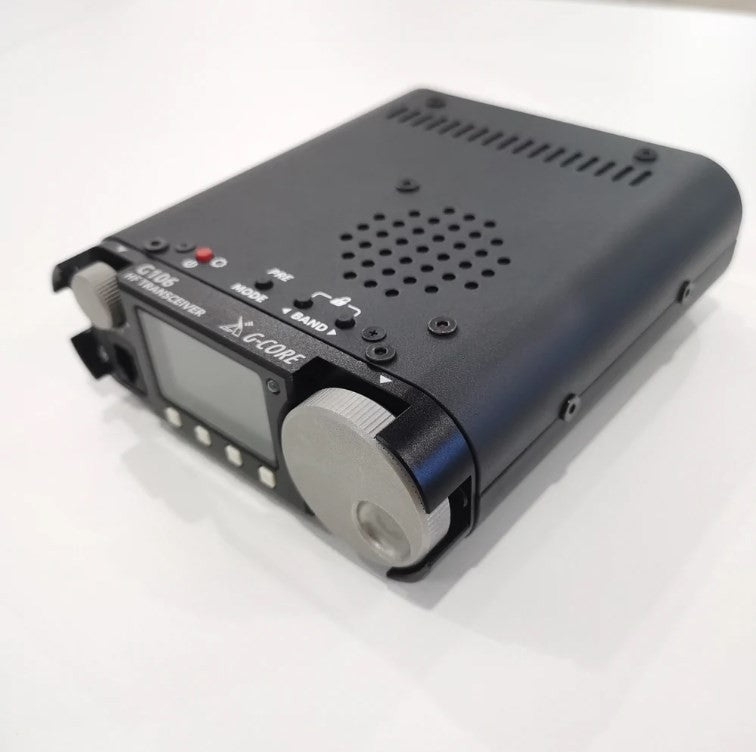

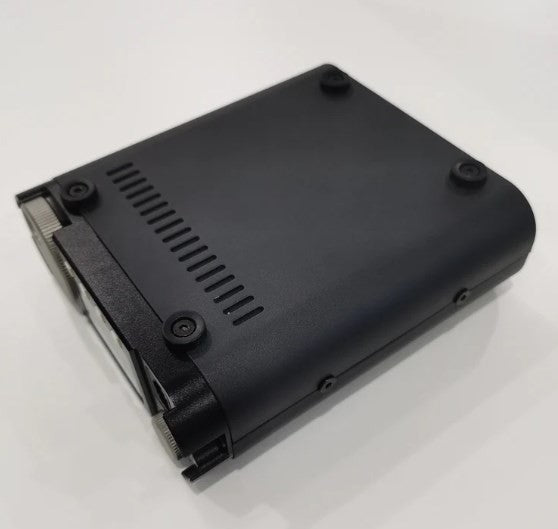

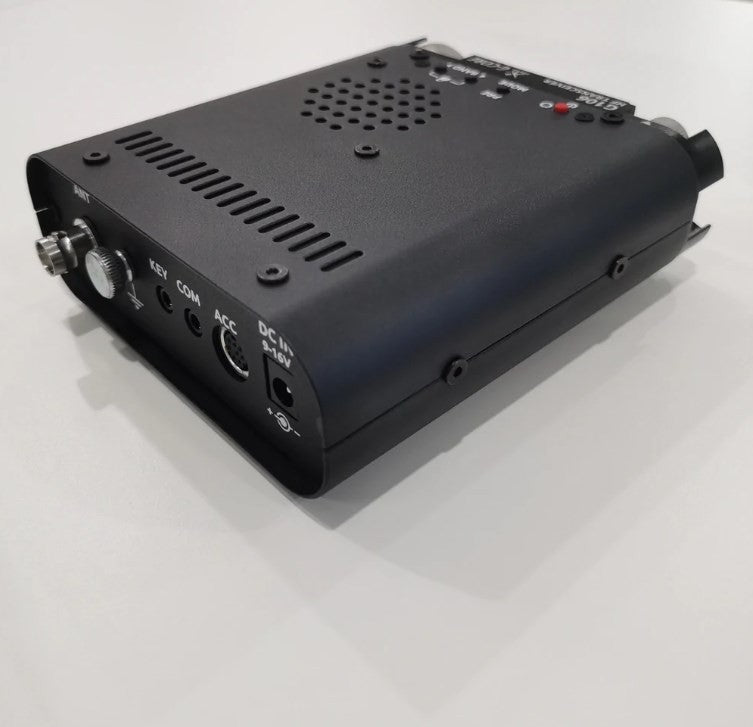

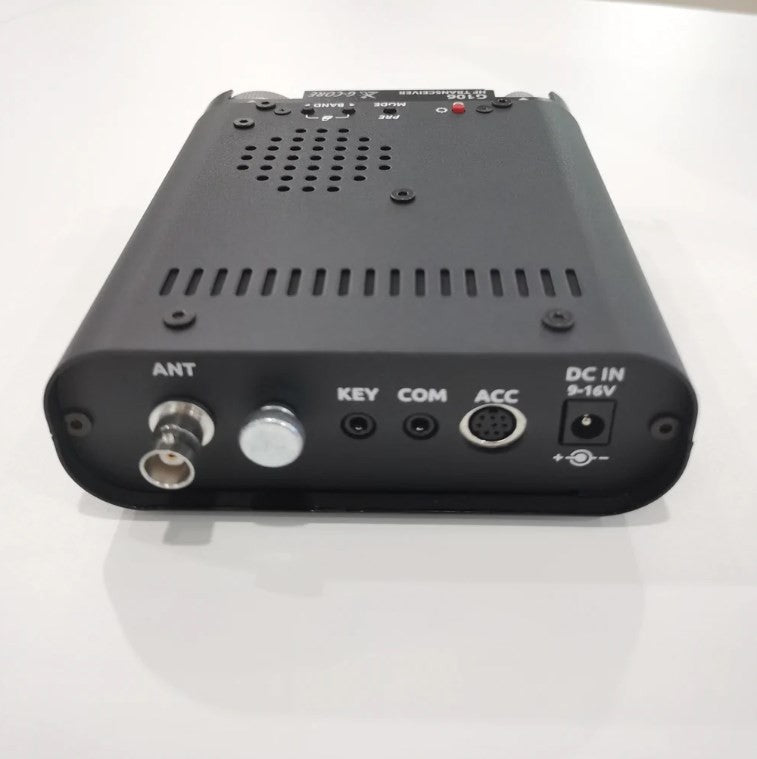

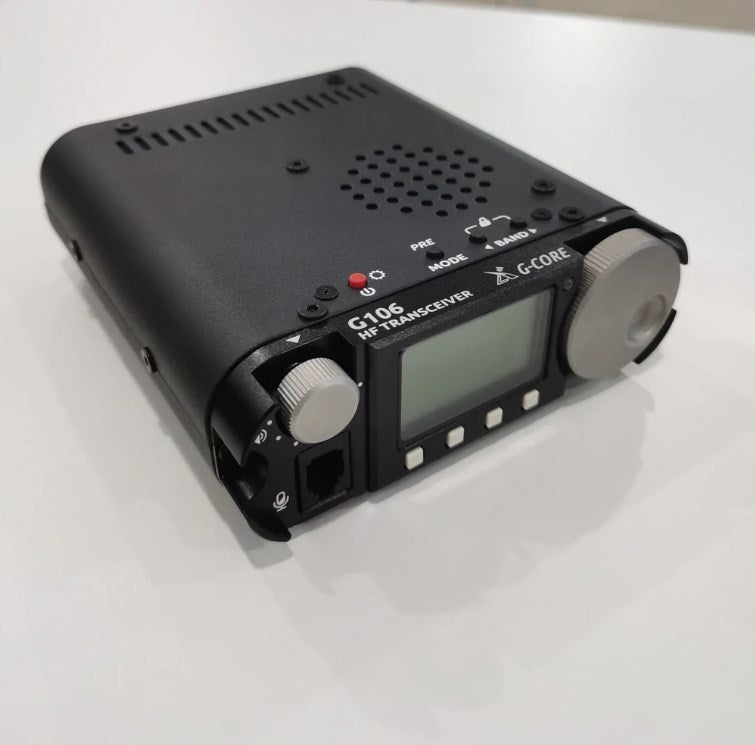

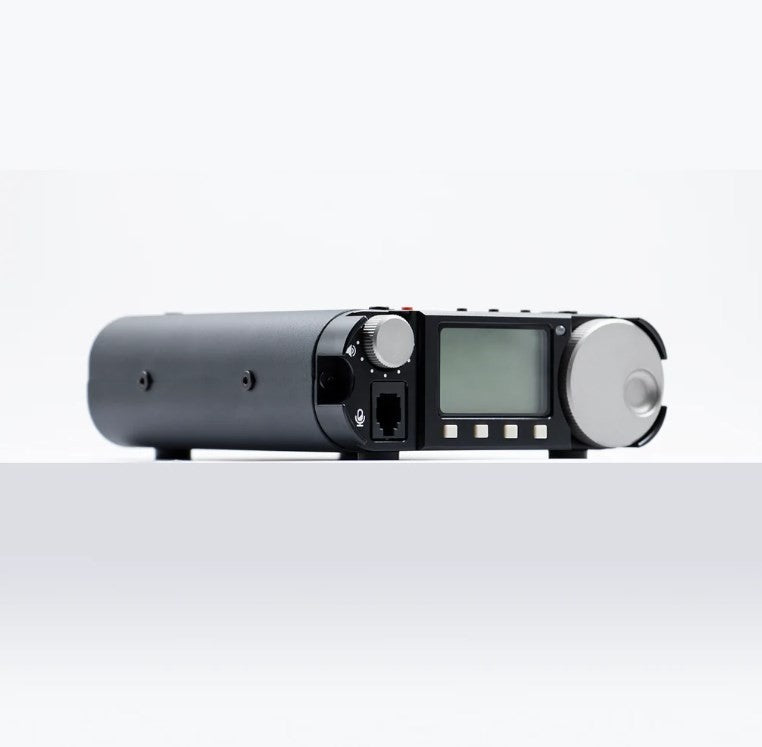

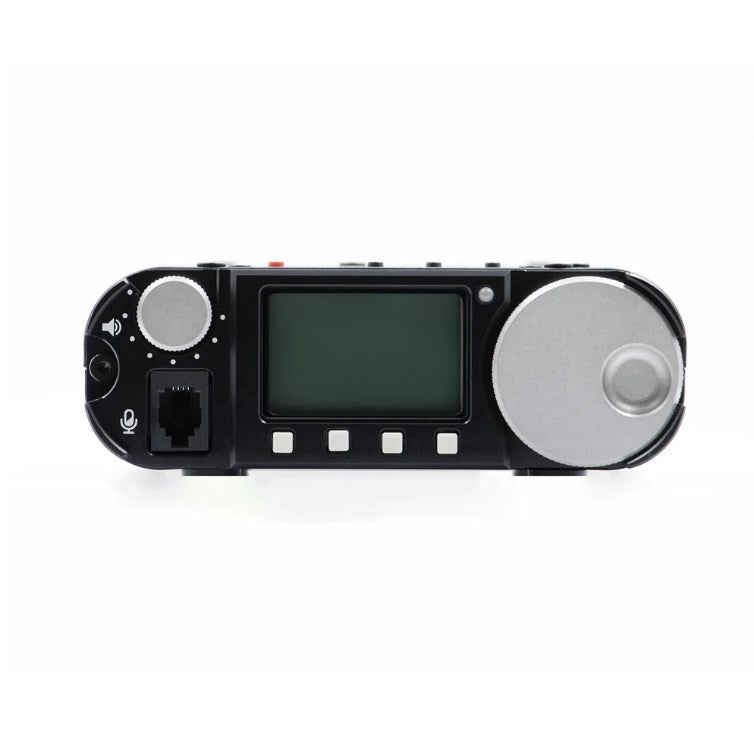

Xiegu G106 is a 5W portable QRP radio with an SDR circuit structure that uses 16-bit CODEC sampling, capable of providing superior performance.
The entire device features three modes: SSB/CW/AM and an extra WFM (88~108 MHz) reception function, allowing you to listen to local FM broadcasts during communication. Equipped with a digital CW filter with three bandwidths, it can help you connect to more radio stations. With the external DE-19 / CE-19 digital adapter, it can be easily connected to a computer and complete FT8 communication.
As an entry-level portable SDR transceiver, the G106 will be the ideal choice for operating in CW and FT8.
Basic Features
- High-performance SDR core circuit
- Compact and sturdy structure
- Transmission and reception on all amateur frequency bands within 3.8~29.7 MHz
- WFM broadcast reception
- Continuous full-range shortwave reception
Amateur data communication available
Computer control available
Specifications
Reception Frequency: 0.55 ~ 30 MHz 88 ~ 108 MHz (WFM)
Transmission Frequency:
- 3.5 ~ 3.9 MHz
- 10.1~10.15MHz
- 18.068~18.168MHz
- 24.89~24.99MHz
- 7.0~7.2MHz
- 14.0~14.35MHz
- 21.0~21.45MHz
- 28.0~29.7MHz
Operating Modes: SSB/CW/AM, WFM (reception only)
Reception Sensitivity:
CW: 0.25uV @10dB S/N
SSB: 0.5uV @10dB S/N
AM: 10uV @10dB S/N
Frequency Stability: ±1.5 ppm within 30 minutes of power-on @25°C: 1ppm/hour
Transmission Power: =5 W @ 13.8 V DC
Transmission Spurious Suppression: =50dB
Audio Output Power: 0.3 W
Operating Voltage: 9 ~ 15 V DC
Standby Current: 0.37 A @Max
Transmission Current: 2.8 A @ max
Dimensions: 120*40*135 (mm)
Weight: approx. 720 g (host only)
Related products (not included in the package)
- Xiegu XPA125B 100 W Power Amplifier
- Xiegu DE-19 expansion port for easy PC connection
- Xiegu GNR1 Digital Audio Noise Filter
- Xiegu VG4 40m/20m/15m/10m 4-band vertical antenna

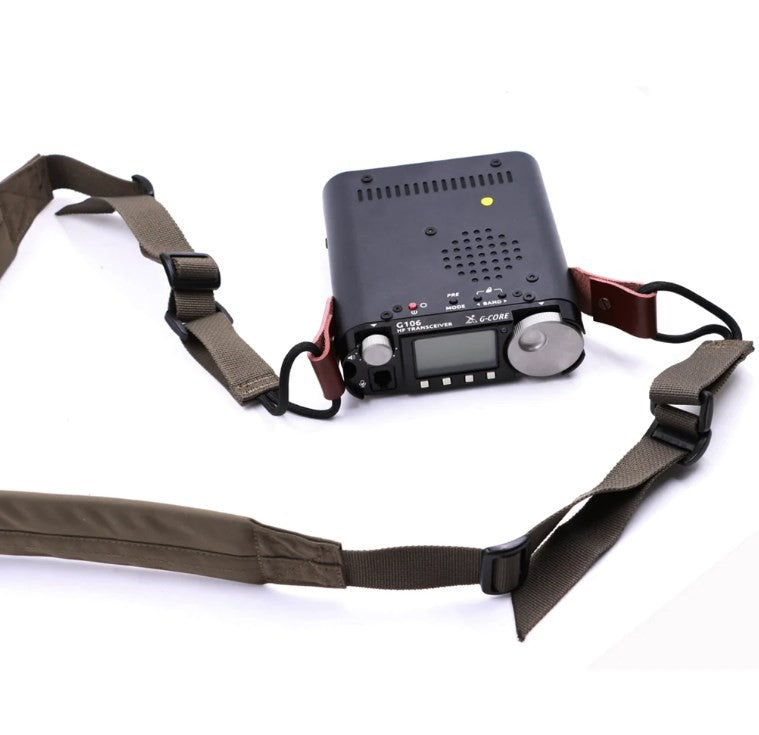

Note: The shoulder strap is for display only. Final equipped accessories not yet decided. We are communicating with Xiegu for more details.
