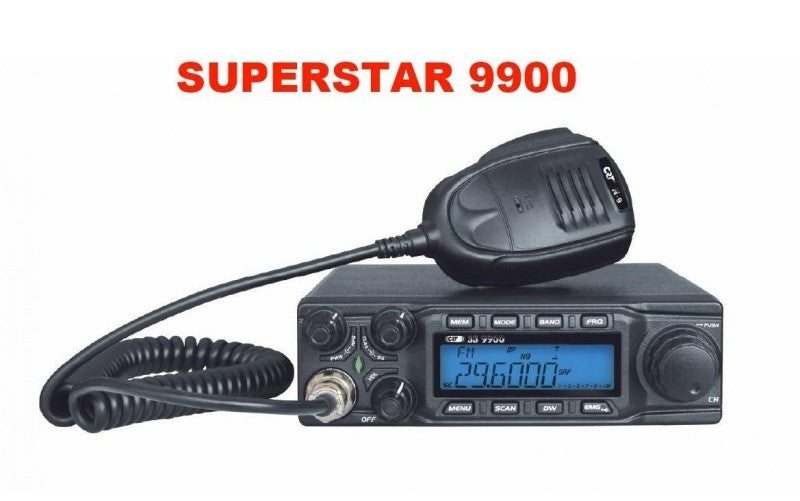

SUPERSTAR SS-9900 V4
HF / 10 Meter High Power Mobile Transceiver
New Updated V4 Version – Up to 60W in SSB – Multi-Color DTMF Display
INNOVATION AND PEAK POWER
• NEW V4 REVISION: Includes latest generation hardware and software updates for optimized frequency stability, improved heat dissipation, and even clearer and sharper audio modulation.
• HIGH ADJUSTABLE POWER: Delivers up to 60 Watts PEP in SSB, 45W in AM and 50W in FM/CW. Power is fully and linearly adjustable directly from the front controls.
• COMPLETE FUNCTIONALITY: Equipped with a customizable color LCD display, standard CTCSS/DCS function, built-in Noise Blanker (NB) and ANL filters, and original microphone with Up/Down keys and DTMF encoding.
Uncompromising Performance in Mobile and Base
The Superstar SS-9900 V4 represents the state-of-the-art for compact mobile transceivers operating on the 10-meter band (28.000 - 29.700 MHz, expandable to adjacent bands for use where permitted). Designed with a compact yet extremely robust chassis featuring a generous single-block rear heatsink, it ensures excellent transmission cycles in all emission modes (AM, FM, SSB, CW). The user interface is intuitive and flexible, ideal for both car/truck installation thanks to its small size, and as a compact base station in your radio shack.
MAX RF POWER
60W PEP (SSB)
OPERATING MODES
AM / FM / LSB / USB / CW
General Technical Specifications
| Technical Feature | Detail / Nominal Value |
|---|---|
| Frequency Range | 28.000 MHz - 29.700 MHz (10m Amateur Radio Band) |
| RF Output Power | AM: 45W / FM: 50W / SSB: 60W (PEP) / CW: 50W |
| Frequency Steps | 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz |
| Squelch and Controls | ASQ (Automatic Squelch), Manual Squelch, RF Gain, Mic Gain, Clarifier |
| Tones and Protections | 38 CTCSS tones / 104 DCS - High SWR and Overvoltage Protection |
| Advanced Functions | Dual Watch, Scan, Emergency Channels, Adjustable Echo, Scrambler, Roger Beep |
| Power Supply / Dimensions | 13.8 Vcc / 245 x 158 x 48 mm |
Package Contents:
• Superstar SS-9900 V4 Transceiver
• Original multi-function hand microphone with DTMF keypad
• Mobile mounting bracket with dedicated mounting screws
• DC power cable with torpedo fuse
• Operating manual
