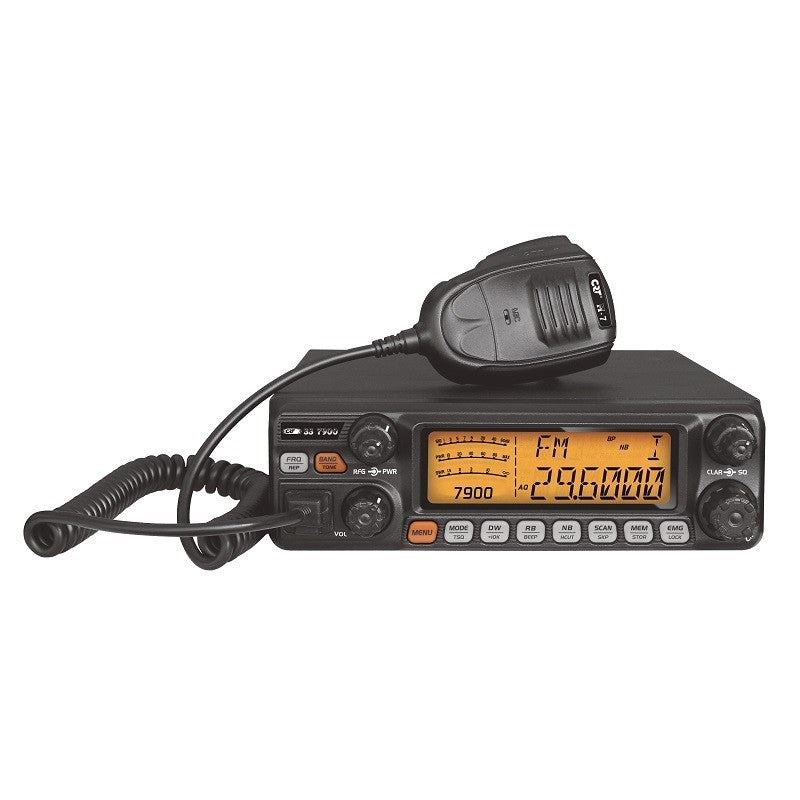

CRT SS 7900 + CTCSS/DCS encoder/decoder (included original)
Technical specifications
Amateur Radio Standard
Modes AM/FM/LSB/USB
Frequencies 28 - 29.7 mHz (EXPANDED BAND version 26-30 MHz minimum)
Power 30W AM modulated / 50W FM / 60W SSB (adjustable AM/FM/SSB)
Power supply 13.8 V DC
Shorts 6
Increment 100Hz / 1kHz / 5kHz / 10kHz / 100kHz / 1mHz
CLARIFIER Yes: (multifunction) allows voice clarification in SSB mode (frequency display -500 +500)
RELAY MODE / OFFSET Yes: allows to insert a relay with two different frequencies
Automatic SQUELCH (ASQ) AM/FM
ROGER BEEP Yes: end of transmission beep
RF GAIN Yes: allows to adjust the reception sensitivity
CTCSS / DCS (encoder/decoder) 38 CTCSS / 104 DCS: sub-audio encoding that allows selective squelch activation
NB/HI CUT filters Yes: noise filters
NRC FILTER function Yes: noise reduction in RX and/or TX - adjustable on 5 levels - particularly effective in SSB
DUAL WATCH function Yes: listening scan on two frequencies
VOX function Yes: this function activates the microphone sound (hands-free)
TOT function Yes: anti-chatter
SCAN function Yes: automatic search for occupied channels (scan)
RESET function Yes: in case of malfunction or incorrect handling, it is possible to restore factory settings or reset functions
Various functions Emergency channel + (+) 10kHz / ECO / KEY BEEP / MONITORING + OFFSET shift + SWR protection + keypad lock
Bonus clarifier frequency display - Oversized heatsinks for heat dissipation - Microphone type selection: electret or dynamic
Dynamic type microphone - UP/DOWN keys (front plug)
LARGE LCD display
Display Frequency or channel + modulation mode + receive and transmit signal indicator + squelch level
Options Programming cable + software
Programmable by computer Yes
Included Mounting bracket + Screws + Microphone holder + Detachable power cable + Instructions in French and English
Dimensions 200 (W) x 280 (L) x 60 (H) mm
Weight 1.5 kg
2 year warranty
