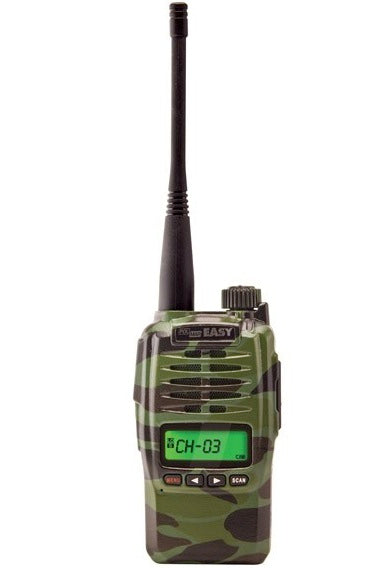

UHF PMR446 TRANSCEIVER
With excellent performance and simple to use, the EASY transceiver features several user-configurable functions.
FEATURES:
- High-capacity Lithium-ion battery;
- 50 CTCSS and 83 DTCS codes configurable by the user from the keypad;
- Power saving function;
- Configurable keypad lock function:
- Configurable SQL function;
- Deactivatable button press tone function;
- Battery charge status indicator;
- FM Radio (88 ~ 108 MHz);
- Configurable VOX function, with optional MF-11 microphone and MA-10 microphone/headset.
SPECIFICATIONS:
- Frequency Range: 446.00625 MHz ~ 446.09375 MHz
- Number of Channels: 8 channels
- Channel Spacing: 12.5 kHz
- Operating Voltage: 7.4 V
- Power Supply: 2300 mAh
- Current Consumption: 600 mA
- Operating Temperature: -20°C ~ +60°C
- Dimensions: 100 × 58 × 36 mm
- Weight: 205 g
- RF Power: 500 mW
- Modulation: FM
- Squelch Sensitivity: 0.16uV
- RF Output Power: 500 mW
- Audio Distortion: 5%
- Current Consumption in Reception:
- Sensitivity at 12dB SINAD - can: 122 dBm
