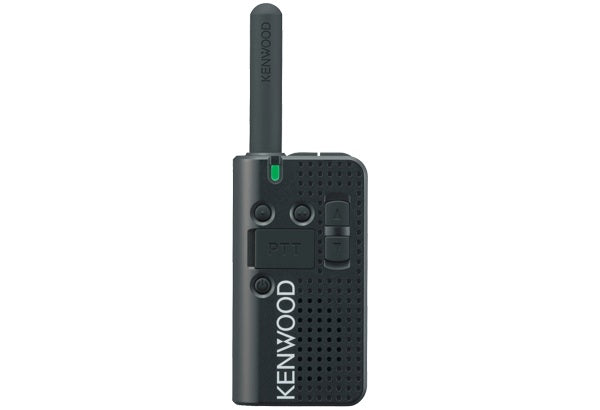

The PKT-23 radio is a very simple to use license-free PMR446 transceiver thanks to its compact form and very low weight.
Furthermore, it guarantees extreme durability and reliability thanks to the high technological standard guaranteed by Kenwood.
This makes it the ideal radio, for example, for all applications in university campuses, hotels, shopping centers, hospitality areas, and sports activities.
FEATURES
- Operation: Analog;
- Charging: via micro USB: Yes;
- Transceiver dimensions: Compact;
- VOX function: Yes;
- Resistance: IP54/55 and MIL-STD 810G
MAIN FEATURES
The simple and compact design
- Intuitive - all buttons are on the front panel
- Small, lightweight, and slim
- Includes all 8 pre-programmed PMR446 channels
- Supplied complete with battery, charger, and belt clip
Supplied with:
- Battery: KNB-71L Lithium-Ion
- Belt Clip attachment: KBH-20
- Charger: KSC-44CR Rapid Stand Charger with KSC-44SL AC Adapter
- Instruction manual: English, Spanish, German, French, Dutch & Italian;
- In addition, Turkish, Greek and Portuguese versions are available for download in PDF format.
GENERAL PMR FEATURES
- 3-color LED (Red, Orange, Green): Yes
- Battery Charging via USB socket: Yes
- Battery Save Mode: Yes
- Busy Channel Lock-out: Yes
- Call Alert: Yes
- Compact Design: Yes
- Earphone Jack Socket: Yes, 3.5mm
- Enhanced Kenwood Audio: Yes
- Key Lock: Yes
- Programmable Function Keys: 2 programmable function keys
- PTT Proceed Tone: Yes
- PTT Release Tone: Yes
- Scan: Yes
- Tone Alert: Yes
- Voice Announcement in English. Other languages to follow.
- VOX Requires suitable VOX Headset
- PC Programming with Windows system: Yes
- Wireless Cloning Function: Yes
APPLICABLE STANDARDS
- IP54: Yes
- MIL-STD 810 C/D/E/F/G: Yes
TECHNICAL SPECIFICATIONS
- Number of Channels: 8
- Channel Spacing: 12.5 kHz
- Battery Life With KNB-71L: 15 Hours (5-5-90, Battery Saver On)
- Frequency Stability: - ± 2.5 ppm Yes
- Operating Temperature Range: -10 °C to + 60 °C
- Operating Voltage: 3.8 V DC ± 10%
- Dimensions: 46 x 85 x 21 mm (W x H x D)
- Net Weight: 110 g
Receiver Specifications
- Audio Output: 300 mW / 4 Ohm
Transmitter Specifications
- RF Output Power: 500mW
