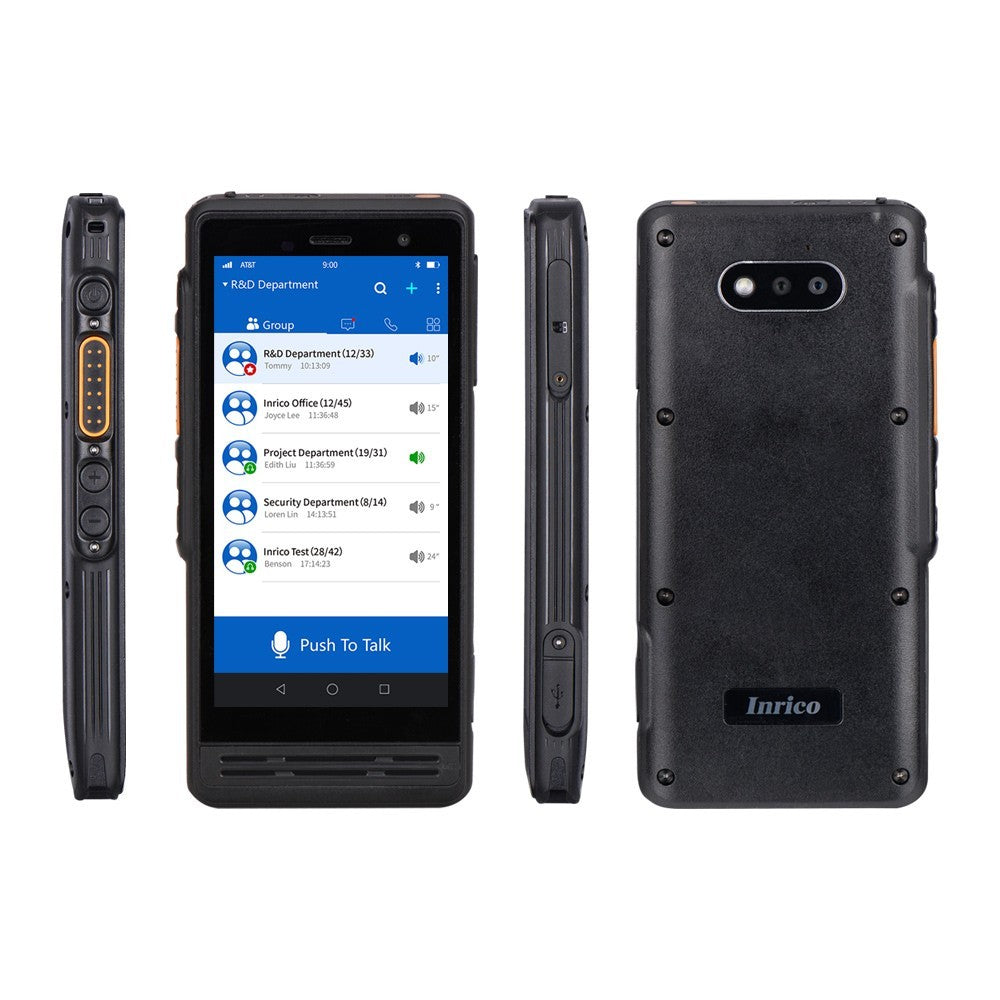

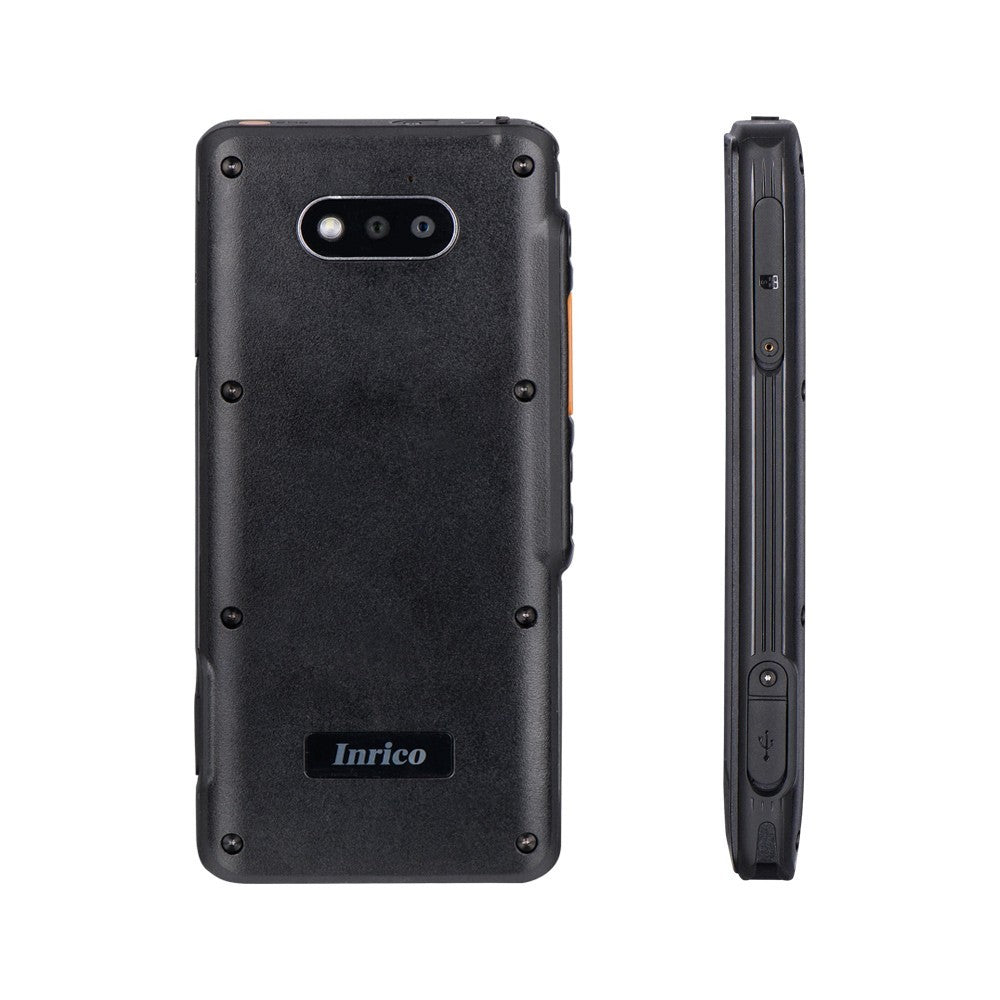

Inrico S300 PTT PoC Radio
Revolutionary PTT communication system via LTE, no more range (distance) limitations, you can communicate between PoC radios anywhere in the world as long as you are connected to the LTE, 4G or WIFI network. No ministerial license is required.
Inrico S300 is a PoC radio for 4G/LTE mobile networks. Excellent for amateur radio use with the new IRN platform, for Zello, Team Speak 3 and Echolink via 3G, 4G or WiFi. And it also works as a WiFi hotspot!
This version of the network radio is fully compatible with the International Radio Network (IRN).
To transmit on Ham repeaters, you must hold a valid amateur radio license. To use this radio on IRN, you must follow these steps and then configure the audio settings. In the RECORD tab, select "Mic" and you are ready.
Frequency | |
Model |
S300 |
EU version |
GSM: B2,B3,B5,B8 WCDMA: B1,B5,B8 FDD-LTE: B1,B3,B5,B7,B8,B20 TDD: B40 |
US version |
GSM: B2,B3,B5,B8 WCDMA: B1,B2,B4,B5,B8 FDD-LTE: B2,B4,B7,B12,B17,B28A,B28B,B66 |
Maximum Transmission Power |
32.5db |
Receive Sensitivity |
-107db |
Wi-Fi |
Operating Band: 2.4G & 5G; Standards: IEEE 802.11 a/b/g/n |
Bluetooth |
Version: BT v4.0 with BLE Operation Distance: (Max) 10 meter |
GPS |
GLONASS,GPS,AGPS, BDS |
NFC |
Optional |
Hardware | |
CPU |
MT6739, 1.5GHz, Quad-core |
RAM+ROM |
2G+16G(Optional 3G + 32G) |
External Storage |
Optional, up to 32G |
SIM card slot |
2*Nano SIM card or 1*Nano SIM+1*TF card |
USB Ports |
Type-C |
Interface |
3.5mm Earphone Jack |
Sensor |
Acceleration sensor Geomagnetic sensor |
Display |
5inch, G + FF Multi-touch Screen Glass: Gorilla Glass 3 |
Flashlight |
Support LED Flashlight |
Speaker |
Ø25*35mm, Max 3W |
Microphone |
Anti-interference microphone |
Battery |
4600mAh |
Software | |
Operation System |
Android 8.1 |
Physical | |
Dimension (H*W*D) |
156.8*75.7*16.0mm(without Antenna& Belt clip) |
Weight |
˜210g |
Working Temperature |
-5°C ~ 55°C |
Storage Temperature |
-20°C ~ 70°C |
Certifications | |
Protection Level |

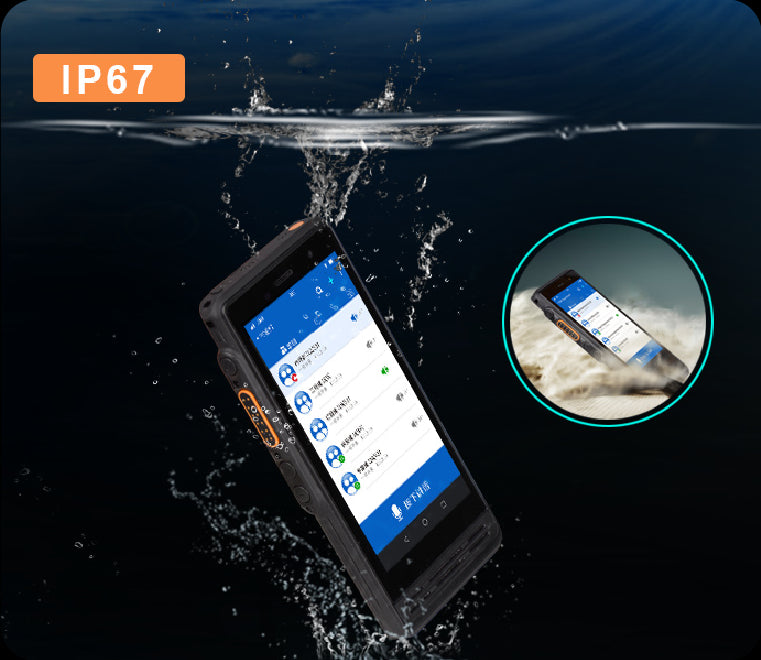

IP67 |
Drop |
1.2 Meters |
Certificate |
CE/FCC/ROHS |
