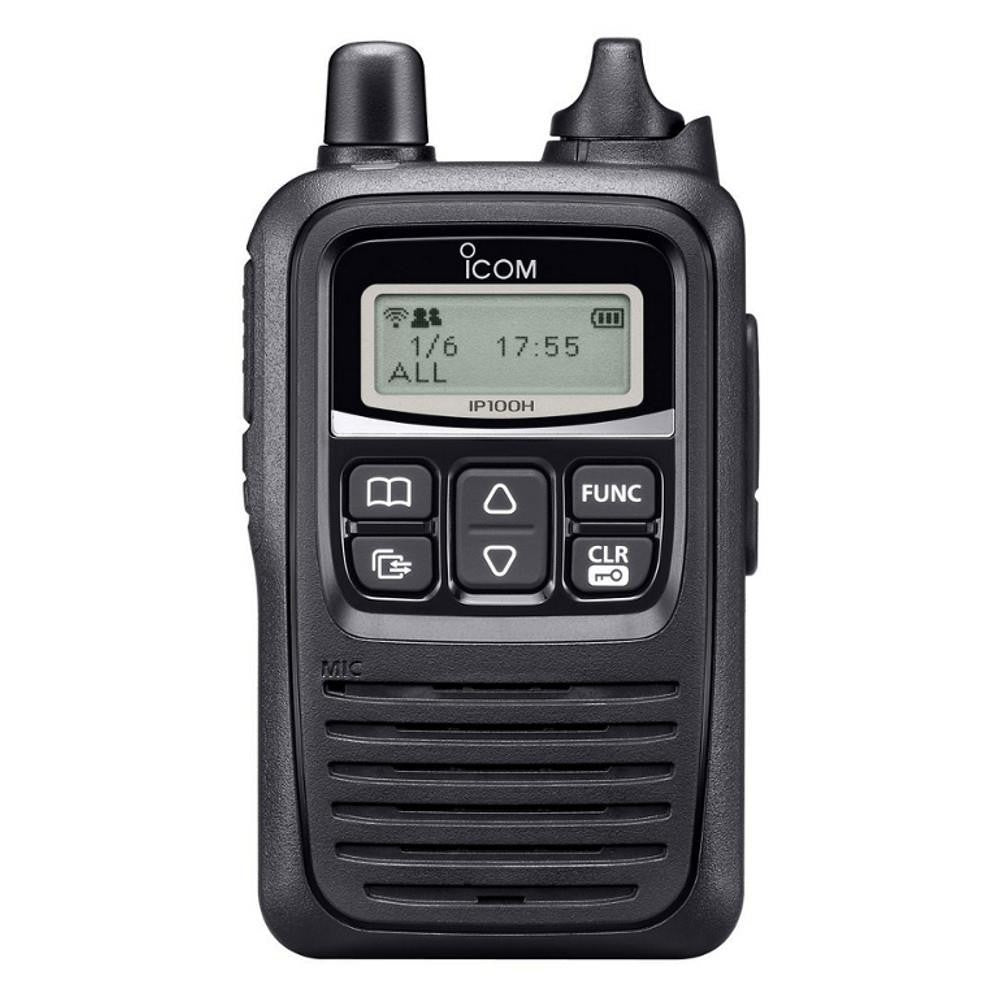

Icom IP100H#11 Radio terminal for IP100/IP1000 system on Wireless LAN and IP networks

• Icom IP100H#11 Radio terminal for IP100/IP1000 system on Wireless LAN and IP networks
• Price excludes programming, installation, maintenance and any other customization.
•

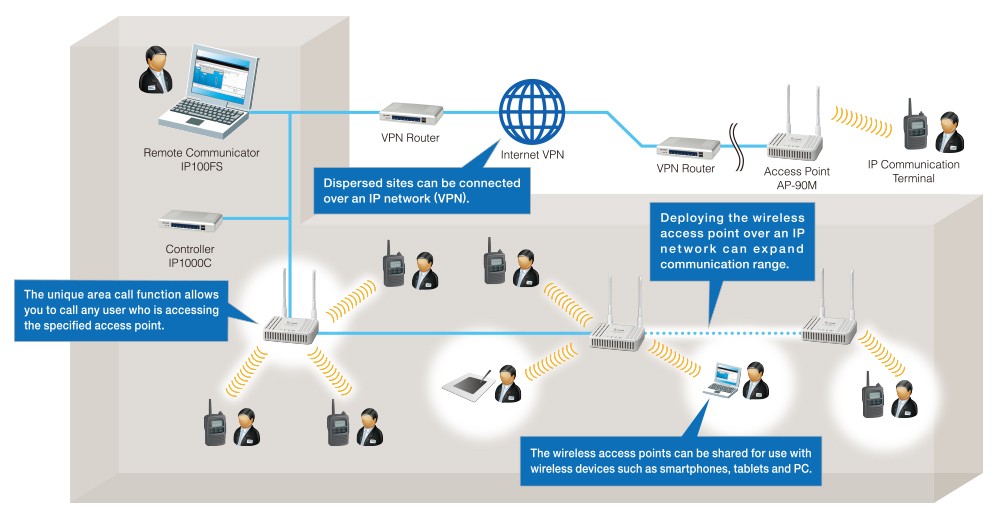

• How the innovative communication system works on wireless LAN and IP networks
• The system provides the possibility to contact any member of your staff at any time and wherever they are with an immediate, effective and secure communication system. You can choose whether to make a voice call to a single person or to several people simultaneously, whether to send a message or whether to contact only the staff present at a specific point in your facility, with the immediacy of a device that can also be used hands-free. All without call costs.
• The system is particularly suitable for:
  - hotels and tourist villages
  - shopping centers and department stores
  - restaurants/catering
  - factories
  - hospitals
  - tunnels and underground buildings
  - private communications on board boats
•

• No license fees
  No annual fee is required for installation and use. It uses the IEEE 802.11 a/b/g/n standard.

• Communicate securely
  Your conversation remains private thanks to the encryption ensured by wireless security protocols (WPA-PSK/WPA-PSK2).

  Simultaneous use
  Multiple simultaneous communications are possible in the system. Through the use of optional dedicated headphones/microphone, the IP100H transceiver can receive and transmit simultaneously as in a normal telephone conversation (full duplex).

• Terminal position information
  The optional IP100FS software can receive information on the position of each transceiver based on the access point to which it is registered and display it graphically on the screen.
• Simple management
  The IP1000C controller is able to configure most of the transceiver's operational parameters remotely.
  It is therefore not necessary to connect each individual terminal to the PC, except when it is first inserted into the system. Information such as pre-programmed text messages, address book, ID list, etc., can be modified remotely and the IP100H synchronizes with the new information when switched on.
  Two different controllers are available: up to 20 users and up to 100 users.

• Different types of calls
  The IP100H terminals and the remote communicator software IP100FS can make individual, group, general and area selective calls. This exclusive general call functionality allows calling any user accessing a specific access point.

  Mixing function
  This function allows receiving the voices of multiple users simultaneously. In this way, point-to-multipoint communication is possible, thus increasing the efficiency of information sharing.

  Roaming
  In a network consisting of two or more access points connected via IP, a transceiver can roam from one access point to another without losing communication.

  Short text and status messages
  The IP100H terminals and the remote communicator software IP100FS* allow sending short text messages** and status messages to other users of the system. Upon receiving a message, you can choose for the IP100H to vibrate strongly or emit an audible signal (pager function).
  * For the IP100FS, free text messages can be sent
  ** For the IP100H, only pre-programmed messages can be sent.

  Remote Monitor, Kill, Revive and Stun functions*
  If in an emergency, the IP100FS can force a specific IP100H to transmit the audio picked up by the microphone, to monitor what is happening.
  The "Stun" command allows disabling a transmitting radio remotely, with the "Revive" command it is possible - again remotely - to restore its functionality. In more extreme cases, such as theft, it can be made completely unusable via the "Kill" command; in this case, the device can only be restored in the laboratory.
  * Commands can only be sent from the IP100FS.

  The IP100H is supplied with a dual antenna: an external and an internal one
  You can choose which antenna to use.

  IPX7 waterproof rating (IP100H only)
  The IP100H can withstand immersion in water up to a depth of 1 meter for 30 minutes.

  IP phone and transceiver interconnection
  Through the VE-PG3 RoIP gateway, the advanced IP radio system can connect with an IP phone, a PABX switchboard, an analog radio network or an IDAS™ NXDN™ digital radio network.

  Supplied with: BP-271 Li-Ion battery, antenna, belt clip and user manual.

  The IP100H terminals, to communicate, require the radio server (IP1000C#14 for a maximum management of 20 terminals or IP1000C#12 for a maximum management of 100 terminals).

  To the system you can add:

  - the optional IP100FS software, which acts as a virtual radio on PC and dispatcher (simple control center)

  - the Icom access point AP-90M; the system also works with third-party access points*(IEEE 802.11 a/b/g/n standard)
  * Icom does not guarantee compatibility with all brands on the market

  - the access point management software RS-AP3

  <

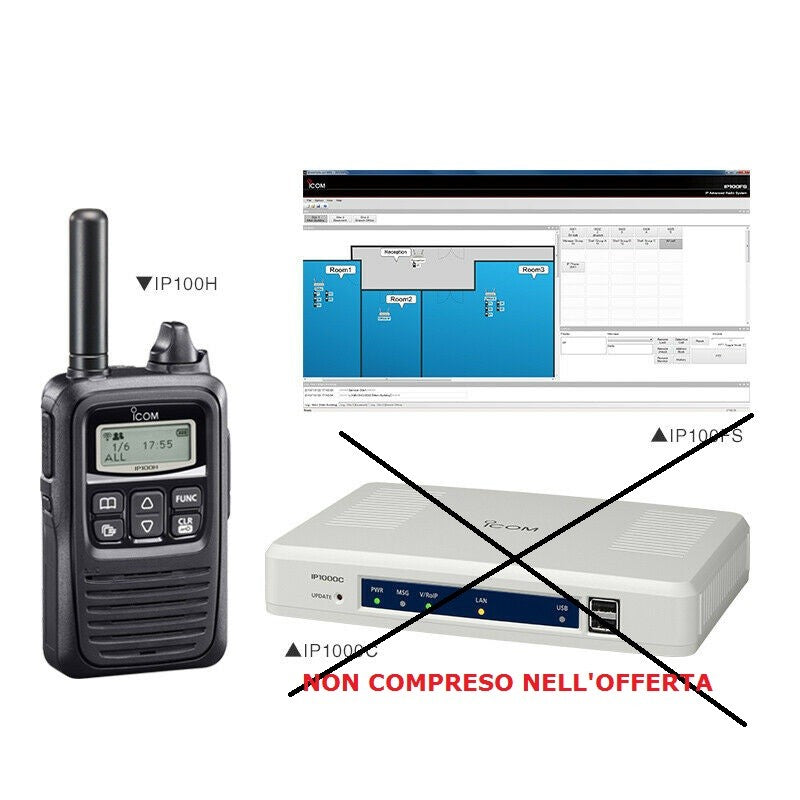

Can be combined with (not included in the offer):

ICOM IP1000C: wireless system controller (hub), which tracks the radios in your network. The IP1000C can communicate with third-party WLAN access points, allowing for great flexibility. It easily integrates into an existing WiFi network

• Can be used with all wireless network standards.
• Controls all phone configurations and voice traffic.
• Allows setting up communication groups, individual IDs, etc. which are automatically downloaded to subscribed terminals.
• Ability to control up to 20 or 100 terminals (including IP100FS), depending on the version.
• Can connect up to 11 IP1000Cs on an IP network (Internet VPN) and increase the number of IP100H+IP100FS communication terminals to 1100 units.
• Programs almost all terminal configurations over the air; for initial configuration, simply connect it to a PC via cable.
• ICOM will configure your IP1000C according to your needs

ICOM IP100FS: remote communication software (optional) that functions as an additional radio in the network. It can be installed on a Tablet PC or laptop, with a Windows operating system.

• Software supplied with a USB stick
• Works as an additional terminal
• All types of calls can be made, such as group calls, individual calls, free or predefined text messages...
• Features a "map" function, which provides information on the position of each IP1000H terminal relative to access points and places it on a map

2 configuration possibilities:

• Use of independent WiFi routers: For buildings that do not yet have a WiFi system
• Using an existing WiFi system: The IP1000C connects to the company's WiFi network and the system will use existing access points. Once installed, the radio terminals move from one access point to another in the building to maintain Full Duplex communication quality.

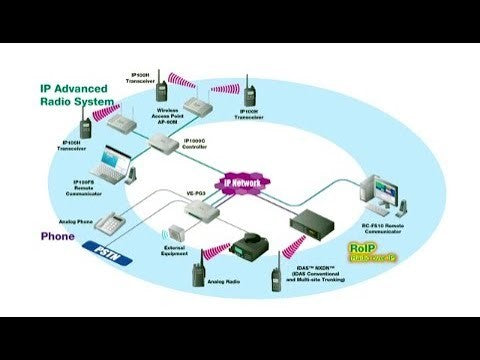

RoIP Gateway VE-PG3: Advanced IP radio system that allows connection to a multitude of protocols, including digital radios, analog radios and softphones. With the VE-PG3 RoIP gateway, the system can connect with an IP phone, IDAS digital transceivers, NXDN, IDAS dPMR Mode 2 and analog. When used with an IP telephony system, the IP100H can be used as a microphone to make internal or external calls.
