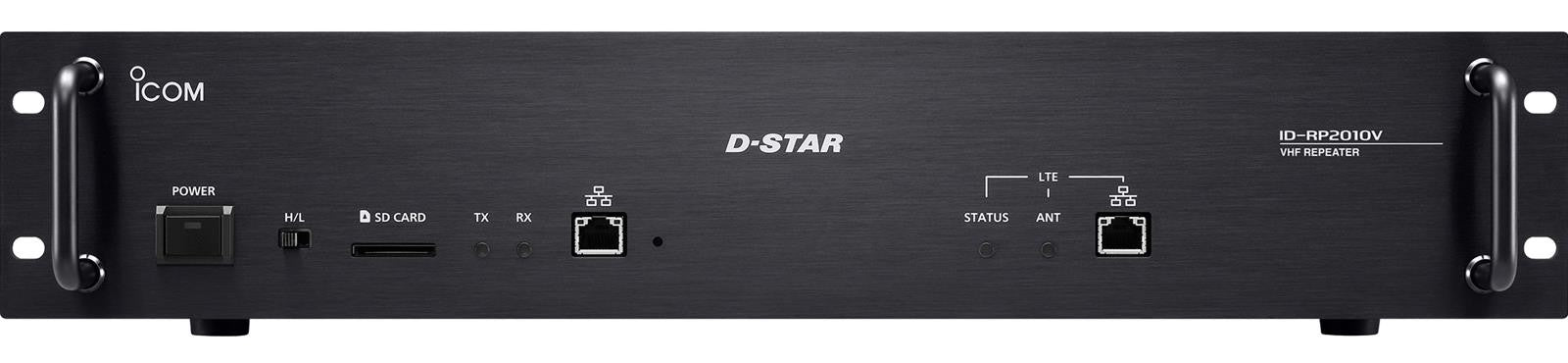

The third-generation ID-RP2010V/ID-RP4010V/ID-RP1200VD D-STAR repeaters come with more features, power and support to communicate with the amateur world. Internet or optional LTE connection, communicate globally.
Versions: |
ID-RP2010V | ID-RP4010V | ID-RP1200VD | |||
Output Power: |
25W | 25W | 10W | |||
Height: |
2U | 2U | 2U | |||
Frequencies: |
144-148 MHz | 440-450 MHz | 1240-1300 MHz | |||
Modes: |
DV/FM | DV/FM | DV/DD/FM |
Integrated Controller
An integrated controller is built into the repeater to work with the RF module unit. Also, each repeater can act independently to forward reception signals. Connect repeaters with the supplied Ethernet cable for cross-band operation. The repeater RF module in the repeater can function as a single-band D-STAR/FM repeater, the ID-RP2C is not required.
DD Mode Operation*1 ID-RP1200VD Only
The ID-RP1200VD is a 1.2 GHz repeater, switchable between DV or DD mode. DD mode operation acts as a wireless modem via a computer's Ethernet port to provide data communication and Internet access up to 128 kbps. Use the IC-9700's 1.2 GHz DD mode to set it up as a wireless modem.
Mixed Mode Operation
With mixed mode operation, the repeater can receive and transmit both D-STAR DV and analog FM signals. Great for migrating existing analog repeaters to D-STAR while providing analog compatibility.*2
*2 ID-RP2010V, ID-RP4010V and ID-RP1200VD cannot perform mixed mode operation when controlled by ID-RP2C.
An integrated controller is built into the repeater to work with the RF module unit. Also, each repeater can act independently to forward reception signals. Connect repeaters with the supplied Ethernet cable for cross-band operation. The repeater RF module in the repeater can function as a single-band D-STAR/FM repeater, the ID-RP2C is not required.
The ID-RP1200VD is a 1.2 GHz repeater, switchable between DV or DD mode. DD mode operation acts as a wireless modem via a computer's Ethernet port to provide data communication and Internet access up to 128 kbps. Use the IC-9700's 1.2 GHz DD mode to set it up as a wireless modem.
Mixed Mode Operation
With mixed mode operation, the repeater can receive and transmit both D-STAR DV and analog FM signals. Great for migrating existing analog repeaters to D-STAR while providing analog compatibility.*2
*2 ID-RP2010V, ID-RP4010V and ID-RP1200VD cannot perform mixed mode operation when controlled by ID-RP2C.
Connect the optional LTE unit, UX-262, to directly connect an LTE network and the Internet. An LTE network can be shared with multiple repeater modules at one site. A data SIM card provides network coverage. A static global IP address is required for the Internet SIM. Combining the internal Gateway function and the LTE unit, a deployable provisional D-STAR repeater site can be created for emergency situations.*3
*3 Please check legal requirements before operating the provisional repeater site
Direct RF Sampling and FPGA Platform
The IDRP2010V/RP4010V repeater uses the latest direct RF sampling method. The ID-RP1200VD uses 1.2 GHz IF Down Conversion sampling. This means that when signals are processed in the FPGA, receiver sensitivity is greatly improved.
Other features
High Duty Cycle Operation
Replace a repeater module in ID-RP2 series D-STAR repeaters, as the new modules are compatible with the ID-RP2C controller *2
CW ID/Voice ID Transmitter
SD card slot for firmware updates, setting data storage, FM mode, and Voice ID audio
Each RF module has a 10 MHz reference signal input
Each RF module has an internal controller that provides CTCSS, DTCS codes, 1750 Hz tone, and programmable CW/Voice ID for analog FM mode
Recommended System Requirements
Cent OS 7 (64-bit)
CPU Clock - 2.4 GHz or faster
RAM Memory - At least 1 GB
Hard Drive: Minimum 120 GB
Ethernet Ports - 2 required

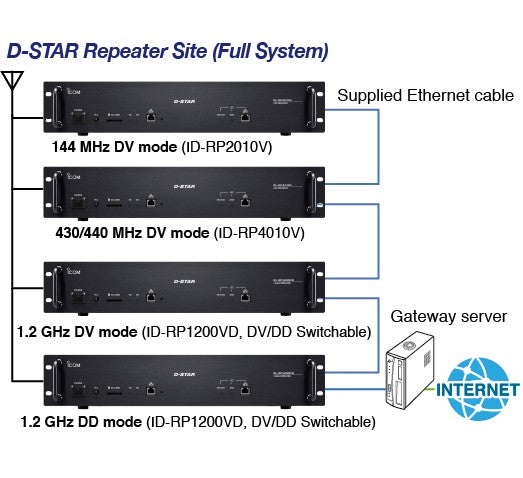

D-STAR System Overview
