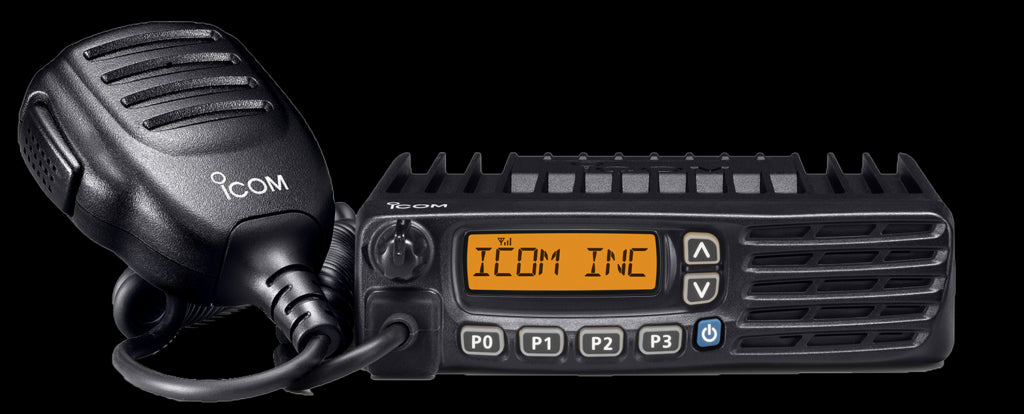

Icom IC-F5122D
VHF PMR MOBILE TRANSCEIVER

General Features

• Compatible with conventional IDAS systems and multi-site IDAS trunking
  (NXDN CAI-based)
• Built-in digital features. No optional unit required.
• Up to 128 channels divided into 8 banks.
• 8-character alphanumeric display.
• All major signaling types for selective and group calls are available:
  2-tone, 5-tone, CTCSS, DTCS, MDC 1200* and BIIS 1200* (*limited functionality).
• 4W audio output with built-in speaker and independent volume knob.
• Talk back function and call mode selection
• Optional ACC cable OPC-2078 with 25pin D-SUB connector for connection to a
  GPS receiver.
• MIL-STD-810-F compliant construction.

Compatible with IDAS NXDN CAI-based digital modes

• IC-F5122D/IC-F6122D transceivers can operate in IDAS digital mode
  with NXDN protocol, even with conventional multi-site systems and multi-site IDAS trunking.
• Connection with a GPS receiver via the optional OPC-2078 ACC cable
• Thanks to the new optional OPC-2078 cable with 25pin D-SUB ACC connector, it is possible to
  connect the transceiver to a GPS receiver or a PC.
• The optional OPC-1939 15-pin D-SUB ACC cable, common to the
  IC-F5022 series, is also available.

Up to 128 memory channels in 8 banks
IC-F5122D series transceivers can store up to 128 channels
divided into 8 banks. Memory channels can be selected using the
up/down buttons.

Alphanumeric LCD display
8-character 14-segment alphanumeric LCD display, capable of displaying a
wide variety of information. The icon displayed in the upper right part of the
display indicates that the scanning function is active.

4W (typical) audio output with built-in front speaker
4W audio output and front speaker for optimal audio performance.

Built-in 2-tone/5-tone signaling function
IC-F5122 series transceivers incorporate 2-tone, 5-tone,
CTCSS and DTCS signaling systems for individual and group calls. In addition, the device is able to
decode up to 10 2-tone codes or 8 5-tone codes. It is possible to program
different response actions for each code, such as: Acoustic alert – Visual
call indication (bell) – Answer back - Automatic transmission – Remote
disabling and re-enabling – Scanning – Activation of an external output*.
* Connection of an external device such as a horn speaker, buzzer etc. is required.

Compatible with MDC1200 protocol
The following selective calls and ANI functionalities are available for MDC signaling:

• PTT ID
• Radio Check (RX only)
• Radio Revive (RX only)
• Emergency (without ACK transmission)
• Radio stun (receive only)
• Up to 500 alias tables

Talk Back function and Call mode
With the Talk Back function enabled, IC-F5122D transceivers automatically
select the channel and ID (individual or group; IDAS digital mode only) of the last received call, while scanning stops or restarts after a preset period of time.
A specific timer warns with an acoustic signal when the talk back time ends. Thanks to this function, the operator can quickly respond to every received call.

Other features

• PTT ID transmission in BIIS mode
• 8 DTMF memories with autodial function
• Frequency stability of ±1.0ppm in both VHF and UHF.
• Programming software compatible with the IC-F3102D series

Supplied with: HM-152 hand microphone, power cable, microphone hanger, mounting
kit, key function assignment labels and user manual.
