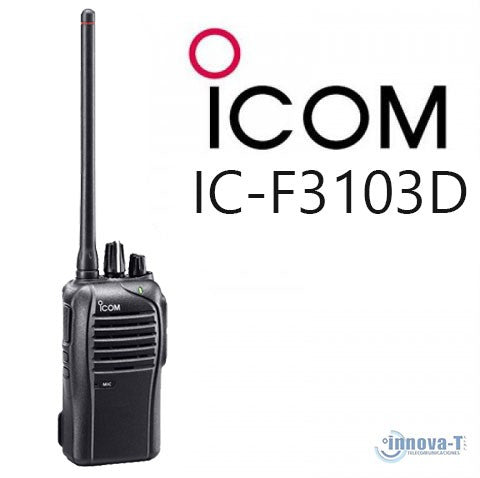

ICOM IC-F3103D IDAS
VHF FM/NXDN-IDAS analog and digital transceiver
IDAS digital entry-level series
The IDAS IC-F3103D / F4103D series portable radios are small, easy-to-use radios that are capable of both analog and digital radio communication on a single channel. The IC-F3102D / F4102D series are incredibly simple to operate and have functions that do not require an LCD and keypad. Additionally, the IC-F3103D / F4103D series are compatible with conventional and IDAS multi-site single-site trunking, thus providing a cost-effective digital migration path from analog.
Channel Announcement:
When the channel knob is rotated, the IC-F3103D / F4103D series announces the channel number in English, which is ideal for workers in dark environments.
Optional GPS Speaker Microphone, HM-171GP:
When used with the new HM-171GP GPS speaker microphone, the IC-F3103D / F4103D series can send its GPS position data with voice or emergency signaling.
800 mW Audio Output Power:
The built-in BTL (bridge-tied load) amplifier provides a powerful 800mW* audio output from the large 45mm speaker. The radio delivers loud and intelligible audio even in noisy environments. (* Typical with internal speaker)
Simple Operation for Instant Communication
The IC-F3103D / F4103D series is so easy to use that it requires no special training. The few knobs and buttons are generously sized for easy operation and are designed to provide a non-slip and positive action, even when wearing gloves. This simple interface makes it ideal for high-turnover environments and shift work where the radio is constantly passed from person to person.
Three types of batteries to choose from:
The IC-F3103D / F4103D series has three types of battery packs and cases to choose from. Lithium-Ion (Li-Ion) rechargeable battery, BP-265, Nickel-Metal Hydride (Ni-MH) battery, BP-264, and battery case, BP-263, can be selected as desired.
Rugged IP54 and MIL-STD-810-F Construction
The IC-F3103D / F4103D is tested for dust protection and water resistance equivalent to IP54 and 11 categories of the MIL-STD-810 environmental test. In short, this radio is rugged!
Internal VOX Functionality for Hands-free Operation
The radio has internal VOX functionality for hands-free operation. Optional compatible headsets with OPC-2004 adapter plug cable can be used with the radio. Additionally, VOX gain and VOX delay time are adjustable.
5-Tone Selective Encoder / Decoder
5-tone signaling provides selective calling, silent stand-by, and other convenient features with programming. The "stun/kill" function disables a radio over the air, and the "revive" function restores the disabled radio.
CTCSS / DTCS Encoder / Decoder
The IC-F3103D / F4103D series has added high-speed CTCSS / DTCS decoder to reduce decoding speed to almost half of the conventional IC-F15 series model.
Scan Functions
One or two priority channels can be monitored even while scanning other non-priority channels. The Tx channel and talk back functions allow for quick response during scanning.
Lone Worker Function
When the radio is not used for a preset period, any radio operation with a beep is required. If the radio is not used within that preset time, an emergency signal automatically transmits and alerts a colleague or attendant in case of potential problems.
Other features
• DTMF auto dial
• BIIS PTIS ID transmit
• Low battery alert
• PC programmable
• Transceiver-to-transceiver cloning
• Talk around function
• Time-out timer
• Enhanced emergency
• 2-step power save
• Environmental surveillance function
• 3-color LED (red, green, orange)
IC-F3103D IC-F4103D
GENERAL
Frequency coverage 136–174MHz 400–470MHz
Number of channels 16 channels
Type of emission 16K0F3E, 14K0F3E, 8K50F3E, 4K00F1E/F1D
Channel spacing 6.25/12.5/20kHz, 6.25/12.5/25kHz
PLL channel step 2.5/3.125kHz
Power supply requirement 7.5V DC nominal
Current drain (approx.) Tx High 1.3A 1.3A
Rx Max. audio 400mA (Internal SP) 400mA (Internal SP)
Standby 90mA (Digital mode) 100mA (Digital mode)
Antenna impedance 50Ω
Operating temperature range –25°C to +55°C (Radio only)
Dimensions (W×H×D) 58×111.5×36.5mm (With BP-265)(Projections not included)
Weight (approx.) 150g (Radio only) 150g (Radio only)320g (With MB-124, BP-265 & Ant.)310g (With MB-124, BP-265 & Ant.)
TRANSMITTER
Output power (at 7.5V DC) 5W, 2W, 1W (Hi, L2, L1) 4W, 2W, 1W (Hi, L2, L1)
Max. frequency deviation ±5.0kHz/±4.0kHz/±2.5kHz (W/M/N)
Frequency stability ±1.0ppm
Spurious emissions 0.25μV (≤1GHz) 1.0μV (>1GHz)
Residual modulation 45/43/40dB min. (W/M/N)
Audio harmonic distortion 1% typ.(AF 1kHz 40% deviation)
FSK error 5% max.
Ext. microphone connector 3-conductor 2.5 (d) mm (1⁄10′′)/2.2kΩ
RECEIVER
Sensitivity (at 20dB SINAD) –4dBμV typ. (emf) –4dBμV typ. (emf)(at 5% BER) –8dBμV typ. (emf) –8dBμV typ. (emf)Adjacent channel selectivity70/70/60dB min. (W/M/N)
Spurious response rejection 91dB typ. 80dB typ.
Intermodulation rejection 65dB min.
Hum and noise 45/43/40dB min. (W/M/N)
Audio output power (at 5% distortion)Internal SP (With 12Ω load)800mW typ. External SP (With 8Ω load)400mW typ.
Ext. speaker connector 2-conductor 3.5 (d) mm (1⁄8′′)/8Ω
