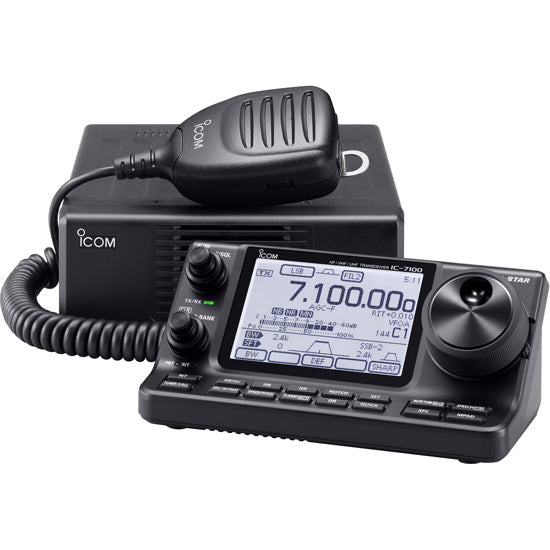

IC-7100
HF/VHF/UHF ALL MODE TRANSCEIVER
Click here for Firmware update
- Intuitive touchscreen interface: The sensitive screen provides innovative, fast, and easy control of features and memory management.
- Inclined controller: The control unit is angled to face the operator directly, improving screen readability. The efficient built-in oval speaker provides clear audio. An external speaker or electronic keyer can be connected to the control unit.
- DV, D-STAR mode operation: With the IC-7100, digital voice and low-speed data communications can be established in DV D-STAR mode*. Connecting D-STAR repeaters via the Internet allows for long-distance connections with digital modulation, providing clear and understandable audio.
*Digital Smart Technology for Amateur Radio
- IF DSP functionality: The latest 32-bit floating-point DSP technology supports many digital signal processes such as IF filter, dual PBT, manual notch filter. Of course, this advanced digital process works across all amateur bands, from HF to 70 cm.
- Suction cup base mount: optional, MBF-1 With the MBF-1 base, which attaches to your vehicle via suction cup, you have an accessory that facilitates installation. The MBA-1 mobile installation bracket is also required.
OTHER FEATURES:
- SD card reader, for voice storage and data cloning.
- Dual integrated DSP circuit, for versatile digital processing performance.
- Built-in RTTY demodulator and decoder.
- SWR (ROS) graphic display.
- DSP controlled RF speech compressor.
- 505 memory channels.
- Audio recorder with playback functions.
- 70 – 70.5 MHz coverage, with 50 W RF output power (varies depending on version).
- High frequency stability: ± 0.5 ppm.
- Optional RS-BA1 IP remote control software available.
- Included accessories
Hand microphone; DC power cable; Electronic keyer connector; Spare fuses; Vertical telegraph key; ACC cable; Controller connection cable.
TECHNICAL SPECIFICATIONS: HF/VHF/UHF all mode base transceiver with touchscreen
TECHNICAL FEATURES | ||||||||||||||||||||||||||||||||
| GENERAL | ||||||||||||||||||||||||||||||||
| Receiver: | 0.030 – 199.999 *1 / 400.000 – 470.000 *1 | |||||||||||||||||||||||||||||||
| Transmitter: | 1.830 – 1.850 / 3.500 – 3.800 / 7.000 – 7.200 / 10.100 – 10.150 / 14.000 – 14.350 / 18.068 – 18.168 / 21.000 – 21.450 / 24.890 – 24.990 / 28.000 – 29.700 / 50.000 – 51.000 70.00 - 70.500 *2 / 144.000 – 146.000 / 430.000 - 440.000 |
|||||||||||||||||||||||||||||||
|
*1 Not guaranteed on some frequency bands. *2 Only 70.100 / 70.200 / 70.300 ±25W EIRP. | ||||||||||||||||||||||||||||||||
| Mode: | USB, LSB, CW, RTTY, AM, FM, WFM (Rx only) | |||||||||||||||||||||||||||||||
| Memory channels: | 505 (495 regular, 4 call, 6 scan limits) 700 (D-STAR repeater channels) |
|||||||||||||||||||||||||||||||
| Antenna connector: | SO-239 x 2 (one for HF / 50MHz bands, the other for VHF, 50 Ohm) | |||||||||||||||||||||||||||||||
| Operating temp.: | -10 °C to +60 °C | |||||||||||||||||||||||||||||||
| Frequency stability: | within ±0.5 ppm (from +0 °C to +50 °C) | |||||||||||||||||||||||||||||||
Power supply: |
13.8 Vdc ±15% | |||||||||||||||||||||||||||||||
| Current consumption (@13.8 Vdc): |
Max. Tx power: 22A Rx max audio / Standby: 1.5A/1.2A |
|||||||||||||||||||||||||||||||
| Dimensions (W×H×D, protrusions not included): |
RF unit 167 × 58 × 225 mm controller 165 × 64 × 78.5 mm |
|||||||||||||||||||||||||||||||
| Weight (approx.): | RF unit 2.3 kg / controller 0.5 kg | |||||||||||||||||||||||||||||||
| TRANSMITTER | ||||||||||||||||||||||||||||||||
| Output power (@ 13.8 Vdc): |
SSB/CW/RTTY/FM/DV | (HF/50MHz) 2-100W | ||||||||||||||||||||||||||||||
| AM | (HF/50MHz) 1-40W | |||||||||||||||||||||||||||||||
| SSB/CW/RTTY/FM/DV | (70* /144MHz) 2-50W | |||||||||||||||||||||||||||||||
| SSB/CW/RTTY/FM/DV | (430/440MHz) 1-35W | |||||||||||||||||||||||||||||||
| Spurious emissions: | < –50 dB (HF bands) | |||||||||||||||||||||||||||||||
| < –63dB (50 MHz) | ||||||||||||||||||||||||||||||||
| < –60dB (70/144 / 430 MHz) | ||||||||||||||||||||||||||||||||
| Carrier suppression: | > 50 dB | |||||||||||||||||||||||||||||||
| Unwanted sideband suppression: |
> 50 dB | |||||||||||||||||||||||||||||||
| RECEIVER | ||||||||||||||||||||||||||||||||
| Intermediate frequencies: | SSB/CW/AM/FM/WFM | 124.487 MHz, 455 kHz, 36 kHz 134.732 MHz, 10.700 MHz |
||||||||||||||||||||||||||||||
| Sensitivity: | ||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||
| Selectivity: | ||||||||||||||||||||||||||||||||
Greater than |
Less than |
|||||||||||||||||||||||||||||||
| SSB (bandwidth 2.4 kHz, narrow) |
2.4kHz/-6dB |
3.6kHz/-60dB |
||||||||||||||||||||||||||||||
| CW (bandwidth 500 Hz, narrow) |
500Hz/-6dB |
900Hz/-60dB |
||||||||||||||||||||||||||||||
| RTTY (bandwidth 350 Hz) |
360Hz/-6dB |
650Hz/-60dB |
||||||||||||||||||||||||||||||
| AM (bandwidth 6 kHz) |
6.0kHz/-6dB |
15kHz/-60dB |
||||||||||||||||||||||||||||||
| FM (bandwidth 15 kHz) |
12kHz/-6dB |
20kHz/-60dB |
||||||||||||||||||||||||||||||
| DV (12.5 kHz spacing) |
-50dB |
|||||||||||||||||||||||||||||||
| Spurious and Image Rejection Ratio: | > 70 dB (HF bands) > 65dB (50/144/430 MHz) (except 144 MHz IF point) |
|||||||||||||||||||||||||||||||
| Audio output @ 13.8Vdc: | > 2.0 W (10% distortion, 8 Ohm load) | |||||||||||||||||||||||||||||||
