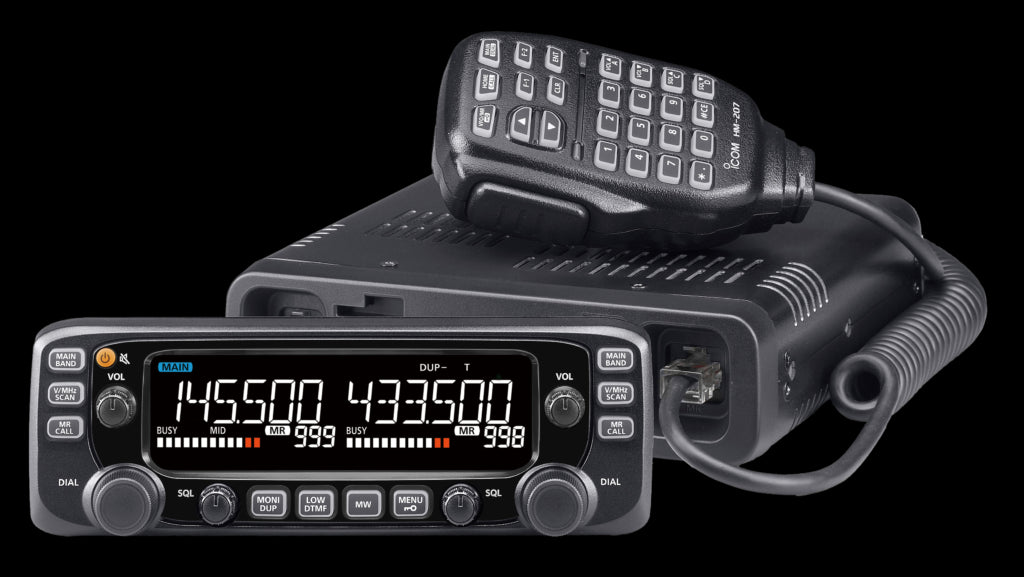

ICOM IC-273E BLACK EDITION
Icom Inc. is proud to announce the launch of the Black Edition (inverted black LCD) of the IC-2730A/E VHF/UHF dual-band FM mobile transceiver.
The Black Edition will be released around February 2025.
The IC-2730E has earned an excellent reputation among users worldwide since its launch. Now, with the addition of the IC-2730E Black Edition, users can choose between the classic existing White LCD and this new Black LCD, tailored to suit personal style, vehicle interior, and operating conditions.
Key Features

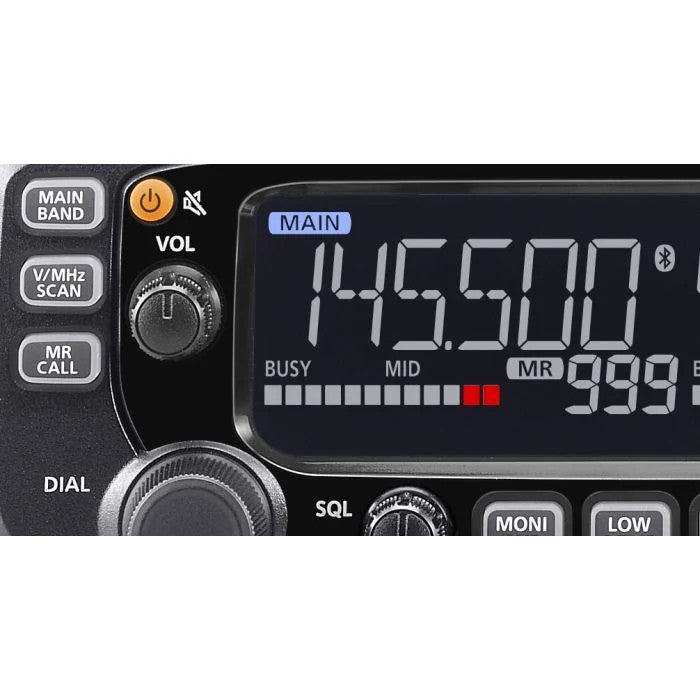

High-contrast inverted black large LCD (new)
50 W output power on VHF and UHF
Simultaneous VHF/VHF, UHF/UHF reception
Simple controller mounting with optional MBF-1 (MBA-5 is required separately)
HM-207 Remote control microphone
DEVICE COMPLIANT WITH EC/99/05 DIRECTIVE (R&TTE)
ACCORDING TO STANDARDS:
EN 301 489-1 V1.9.2 (2011-09);
EN 301 489-15 V1.2.1 (2002-08);
EN 301 783-2 V1.2.1 (2010-07);
EN 60950:2006/A12:2011;
EN 62311:2008;
EN 62479:2010;
MINISTERIAL ACCEPTANCE OF NOTIFICATION:
0070788 DATED 26/11/2014
OPTIONAL ACCESSORIES
SPEAKER MICROPHONE
HM-154 Speaker microphone
HM-207 Remote control microphone (2.5m)
EXTERNAL SPEAKER
SP-35 Compact speaker with 2m cable
SP-30 Speaker
Bluetooth® UNIT / Bluetooth® HEADSET
UT-133 Bluetooth unit
VS-3 Bluetooth headset microphone
BASE MOUNT / CONTROLLER BRACKET
MBF-1 Swivel bracket for front panel
MBF-4 Vehicle bracket for the main unit.
MBA-4 Bracket for attaching the controller to the main unit
MBA-5 Bracket for the controller to be used with MBF-1
CLONING SOFTWARE AND CABLES
CS-2730 Free PC programming software download. Allows quick and easy setup.
OPC-478UC USB PC cloning cable
OPC-474 Radio-to-radio cloning cable
EXTENSION CABLES
OPC-440 Microphone extension cable (5m)
OPC-647 Microphone extension cable (2.5m)
OPC-589 Microphone adapter cable. 8-pin connection for microphone.
OPC-1156 Controller extension cable (3.5m)
TECHNICAL SPECIFICATIONS
GENERAL
Frequency: TX 144–146, 430–440
RX 118–174, 375–550*
*Guaranteed range: 144-146, 430-440MHz
Emission type: F3E, F2D
Number of channels: 1052 channels (including 50 scan edges and 2 call channels)
Frequency resolution: 5, 6.25, 8.33*, 10, 12.5, 15, 20, 25, 30, 50 kHz
*Selectable depending on operating bands or model.
Operating temperature: -10 ° C to +60 ° C
Frequency stability:
Frequency:
