IC-A25NE Aeronautical 6 W PeP Transceiver with GPS and Bluetooth

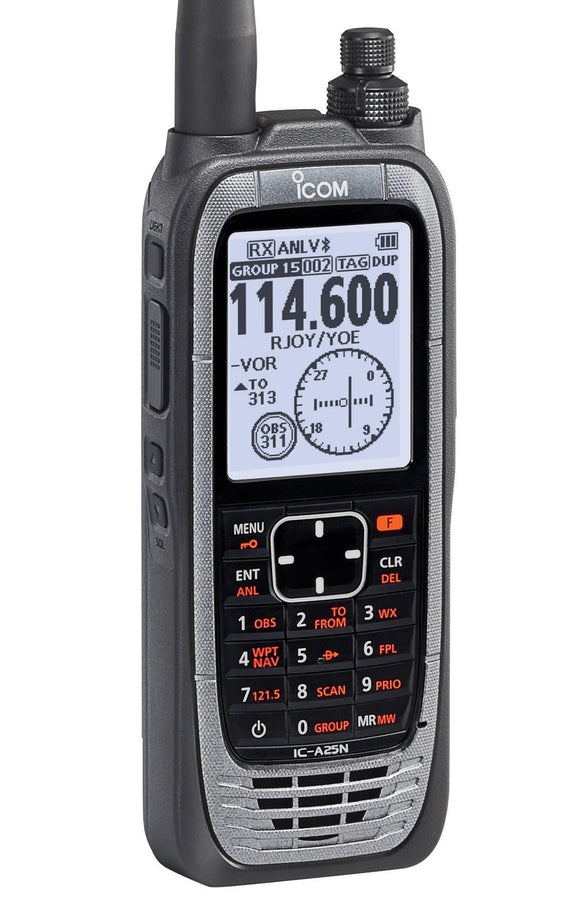

Icom IC-A25NE VHF 6W PeP Portable Aeronautical Transceiver
Navigation functions (exclusive to IC-A25NE)
Bluetooth for hands-free operation
VOR navigation functions (CDI, Course
Deviation Indicator; OBS, Omni Bearing
Selector; TO-FROM indicator; ABSS
(Automatic Bearing Set System)
Nearest base station search function
GPS with simplified waypoint NAV
Plan flights with Android and IOS and import to device.
Class-leading high power RF output
Output power is increased to approximately 6 W typical (PEP) and 1.8 W typical (carrier) compared to the IC-A24 (5 / 1.5 W (PEP / carrier). This extends communication coverage and improves aircraft operation safety.
Airband radio transceiver with integrated GPS and Bluetooth ®
Integrated GPS with simplified Waypoint NAV (for IC-A25NE)
Waypoint NAV screen
Waypoint NAV screenThe simplified waypoint NAV guides you to a destination using current position information from GPS (also GLONASS and SBAS). Waypoint NAV has two functions: Direct-To NAV and Flight Plan NAV. In Direct NAV, the IC-A25N guides directly to a specified waypoint. In Flight Plan NAV, the transceiver guides you to a sequential series of waypoints. Up to 10 flight plans and 300 waypoints can be stored in the IC-A25N. Position information imported from an Android / iOS device * can be used as waypoints.
* RS-AERO1A / RS-AERO1I required.
Flight plans with Android™ / iOS™ apps (for IC-A25NE)
RS-AERO1I map screen example
RS-AERO1I map screen
example
© 2017 Google-Map data
© 2017 GoogleUsing the RS-AERO1A (Android) or RS-AERO1I (iOS) application, you can create flight plans on an Android / iOS device and import the plan to the IC-A25N via Bluetooth. The following functions are available:
1. Creating a flight plan
You can create flight plans on an Android / iOS device using pre-programmed waypoints.
2. Setting Direct-To Flight NAV
You can select a point on the map and export it to the IC-A25N for Direct NAV.
3. Display flight plan information
You can display a flight plan on the IC-A25N on an Android / iOS device.
4. Display waypoint information
Pre-programmed waypoints can be exported to an Android / iOS device and traced on a map application.
VOR navigation functions (for IC-A25NE)
VOR screen
VOR screenThe CDI (Course Deviation Indicator) is detailed like a real VOR instrument and shows any deviation from the course.
OBS (Omni Bearing Selector) allows you to change course from the original flight plan.
The TO-FROM indicator shows the position relationship between the aircraft and the course selected by the OBS.
The ABSS (Automatic Bearing Set System) function allows you to set the current course as the new course in two simple steps.
Local station search function (for IC-A25NE)
Near the station search function screen
Search function screenThe local station search function helps you access nearby ground stations. The function searches for nearby stations using station memories that have GPS location information. To use the local station search function, you need to program the location data and frequencies of the ground stations.
Large, highly visible 2.3-inch LCD display
Night mode screen
Night mode screen Menu screenThe large, highly visible LCD display provides user-friendly graphic screens. The night mode option allows for easy viewing in the dark. The operating frequency in large characters can be recognized at a glance.
Menu screen
Smart battery with detailed battery status
Detailed battery information screen
Detailed battery information screenThe supplied BP-288, 2350 mAh (typical) battery pack provides up to 10.5 hours * of runtime. You can check the battery pack condition on the battery status screen. It is very useful for optimal charging and battery maintenance.
* Typical operation with Tx: Rx (Max.audio): standby = 5: 5: 90. (Bluetooth off, GPS on)
Other features
IP57 dust protection and waterproof construction
Works with six AA alkaline batteries with the BP-289 battery case
BNC antenna
121.5 MHz emergency key
Weather channels
Priority watch
VFO scan, memory channel scan, priority scan
ANL (Auto Noise Limiter) for noise reduction
Sidetone function
Internal VOX functionality
300 memory channels (in 15 memory groups) with 12 character names
8.33 kHz channel spacing
IC-A25NE is supplied complete with:
- Li-ion smart battery 7.2V/2350mAh (BP-288)
- container for six AA batteries (BP-289)
- BC-224 rapid desktop charger with BC-123SE
- aeronautical headset adapter (OPC-2379)
- antenna, belt clip, strap
- user manual
