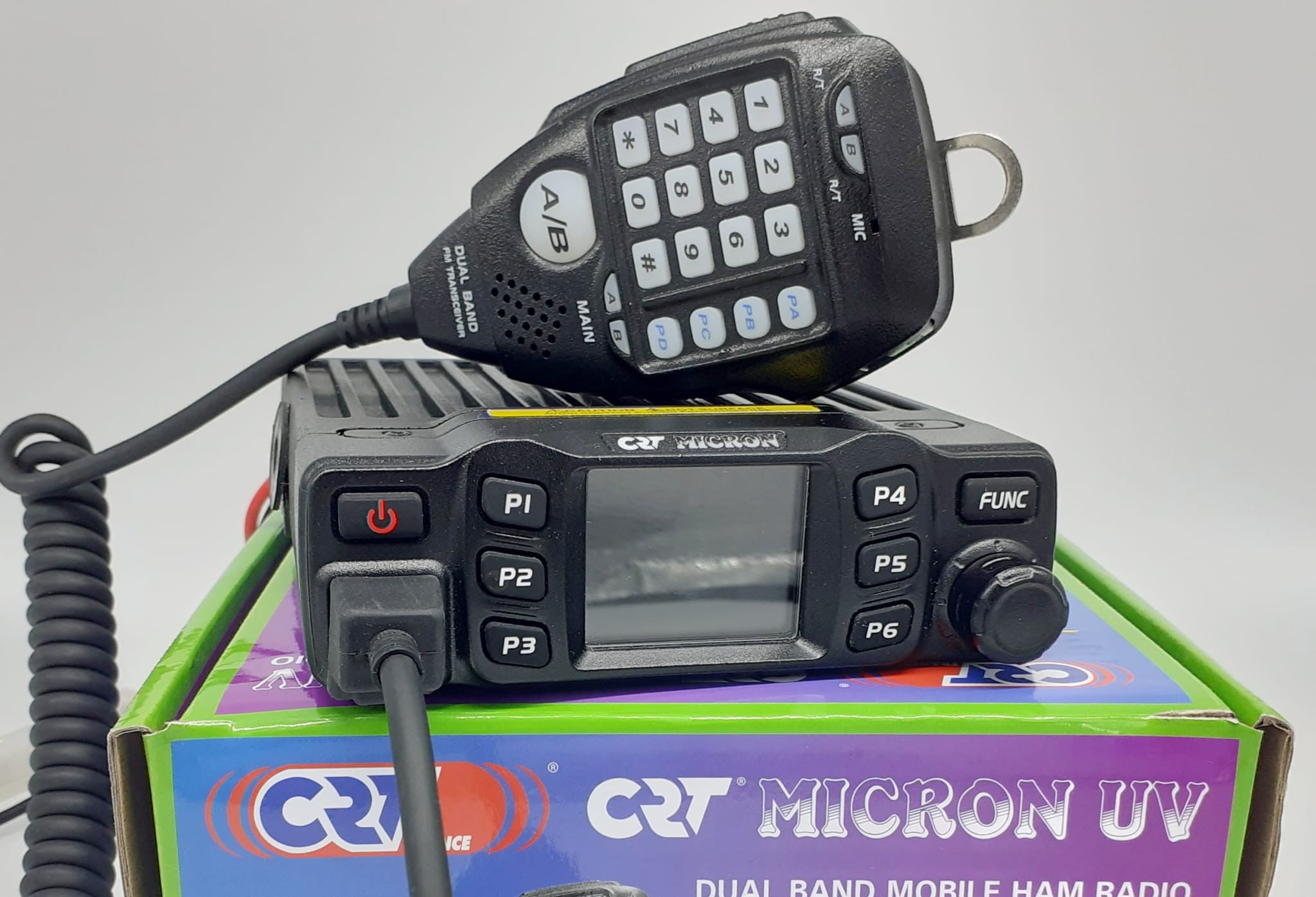

Small Transceiver for the 144-146 MHz - 430-440 MHz Band<20w>
Data Sheet
AMATEUR RADIO standard (restriction: in use with mandatory amateur radio emission)
FM mode (wide / narrow)
Frequency range RX / TX: 144-146 MHz / 430-440 MHz
Power LOW: 5 W / MEDIUM: 15 W / HIGH: 25 W VHF - 20 W UHF (large cooling box)
Input voltage 13.8 V DC
Memories 200 channels
Channel spacing 12.5 / 20 / 25 KHz
Increment step 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 30 / 50 KHz
UU / UV / VU / VV operating
RELE MOD / OFFSET Yes: allows access to a relay with two different frequencies
TONE BURST Yes: 1000Hz / 1450Hz / 1750Hz / 2100Hz
CTCSS / DCS (encoder / decoder) 52 CTCSS / 1024 DCS: sub-audio code to activate the repeater as a selective tone
DTMF (encoder) Yes: selected tones to activate the repeater, internet gateway and other elements
DUAL WATCH function Yes
TOT function Yes: timeout timer
CTCSS / DCS SCAN function Yes
SCAN function Yes: automatic search for busy channels
REVERSE function Yes: the RX frequency of the current channel will be switched to the TX frequency
TALK AROUND function Yes: changes RX / TX frequencies and CTCSS / DCS code to avoid repetitive use
Various functions Possibility to block startup by code (default code 123456)
Bonus backlit keys + jack socket for external speaker + 6 function keys from PF1 to PF6 with 3 functions each + customizable menu order
Mike With built-in speakers and programmable keys

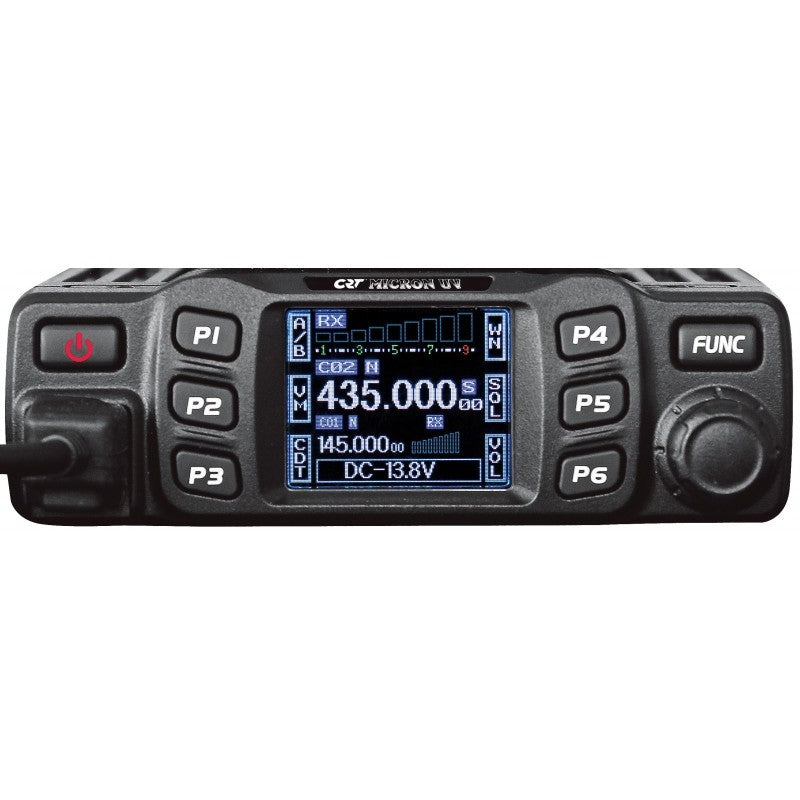

Display Large 180° adjustable multi-function color TFT display
Display RX signal level + TX power + channel number or frequency + various functions ...
Options Programming cable + software
Programmable by software Yes
Includes detachable power cable + mounting bracket + screws + microphone holder + manual in French and English
Dimensions 122 (W) x 165 (L) x 35 (H) mm
Weight 480 gr
2 year warranty
