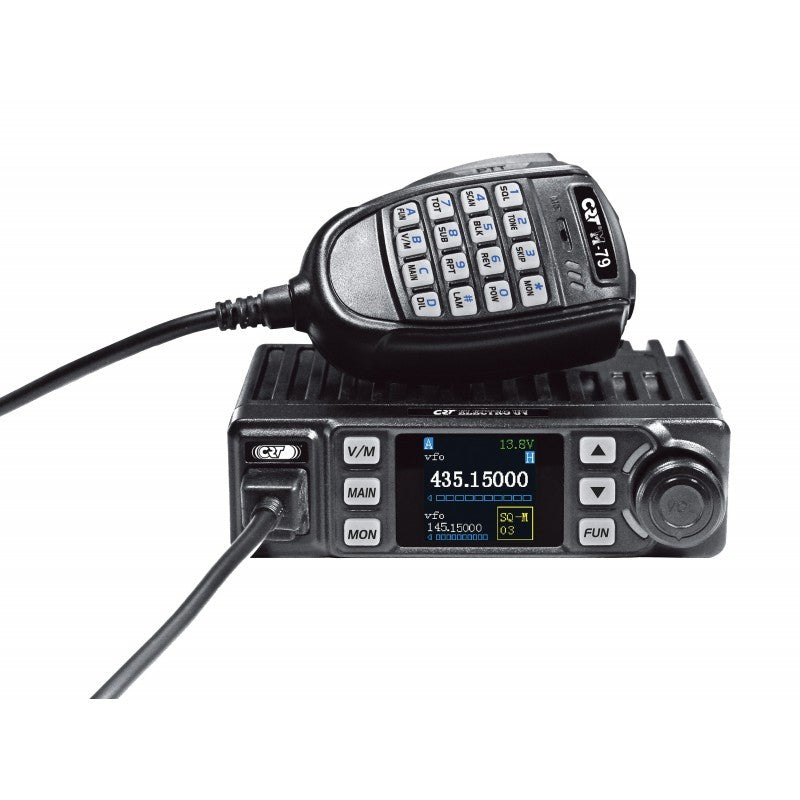

CRT ELECTRO UV - V3 Small 144/430 MHz Mobile Transceiver with VOX Function
Data sheet
| Standard | AMATEUR RADIO (restriction: transmission use with mandatory amateur radio license) |
| Modes | RX FM (wide/narrow): 87.5-108 MHz |
| Frequency range | RX/TX: 144-146 MHz / 430-440 MHz |
| Power | LOW: 5W / MEDIUM: 10W / HIGH: 20W |
| Input voltage | 13.8V DC |
| Memories | 500 channels |
| Channel spacing | 12.5/25 KHz |
| Increment step | 2.5/5/6.25/10/12.5/20/25/30/50 KHz |
| Working | UU/UV/VU/VV |
| MOD/OFFSET REPEATER | Yes: allows a repeater with two different frequencies |
| TONE BURST | Yes: 1000Hz/1450Hz/1750Hz/2100Hz |
| SCRAMBLER | Yes (1 to 11) |
| CTCSS / DCS (encoder/decoder) | 52 CTCSS / 1024 DCS: audio sub-code to activate the repeater as selective tone |
| DTMF (encoder) | Yes: selected tones to activate repeater, internet gateway and other elements - 2 TONE - 5 TONE |
| VOX function | Yes: this function activates the microphone sound (hands-free) |
| TOT function | Yes: Time out timer |
| SCAN function | Yes: automatic search for occupied channels |
| COMPANDER function | Yes: TX with clear voice |
| TX/OFF function | Yes: transmission prohibited |
| REVERSE function | Yes: the RX frequency of the current channel will be switched to the TX frequency |
| TALK AROUND function | Yes: switches RX/TX frequencies and CTCSS/DCS code to avoid repeater use |
| Various functions | Noise reduction, Key Beep, SQUELCH mode, LCD brightness, channel display, REPEATER, DTMF transmission time |
| Options | Programming cable + software |
| Programmable by software | Yes |
| Includes | Power cable with cigarette lighter plug + mounting bracket + screws + microphone holder + French & English manual |
| Size | 124x101x36 |
| Weight | 0.45 kg |
| Warranty | 2 years |
